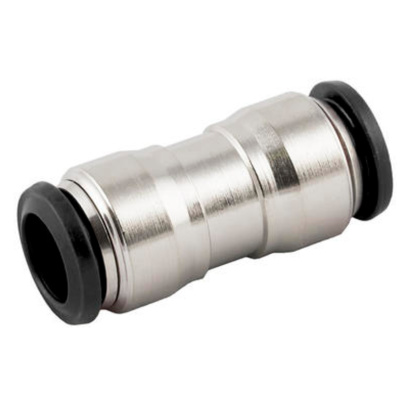

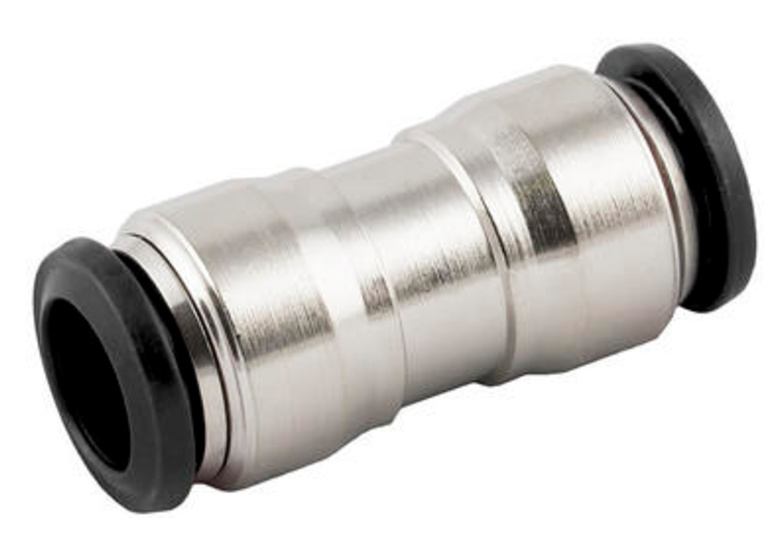

Priama kovova spojka seria 5000
Priama kovova spojka seria 5000 aignep, straight coupling aignep
- Kód produktu: 5040
Priama kovova spojka seria 5000
Straight coupling series 5000

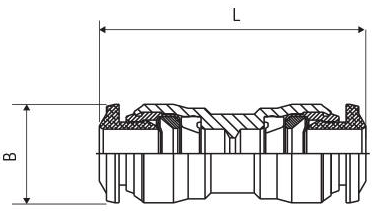

| Kod | Trubka 1 (mm) | Trubka 2 (mm) | L (mm) | B (mm) | Balenie (ks) | Oznacenie |
| Code | Pipe 1 (mm) | Pipe 2 (mm) | L (mm) | B (mm) | Packed (pcs) | Description |
| 9026 | 4 | 4 | 30,5 | 10,5 | 10 | Priama kovova spojka seria 5000 DN4/DN4 |
| 11971 | 6 | 4 | 32,0 | 12,5 | 10 | Priama kovova spojka seria 5000 DN6/DN4 |
| 2783 | 6 | 6 | 34,0 | 12,5 | 10 | Priama kovova spojka seria 5000 DN6/DN6 |
| 11972 | 8 | 6 | 35,0 | 14,5 | 10 | Priama kovova spojka seria 5000 DN8/DN6 |
| 2784 | 8 | 8 | 36,0 | 14,5 | 10 | Priama kovova spojka seria 5000 DN8/DN8 |
| 11973 | 10 | 8 | 40,5 | 17,5 | 10 | Priama kovova spojka seria 5000 DN10/DN8 |
| 2785 | 10 | 10 | 42,0 | 17,5 | 10 | Priama kovova spojka seria 5000 DN10/DN10 |
| 11974 | 12 | 10 | 45,5 | 20,5 | 10 | Priama kovova spojka seria 5000 DN12/DN10 |
| 2786 | 12 | 12 | 47,0 | 20,5 | 10 | Priama kovova spojka seria 5000 DN12/DN12 |
| 7513 | 14 | 14 | 49,0 | 21,5 | 10 | Priama kovova spojka seria 5000 DN14/DN14 |
