DKJ45

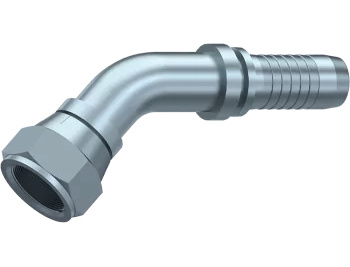

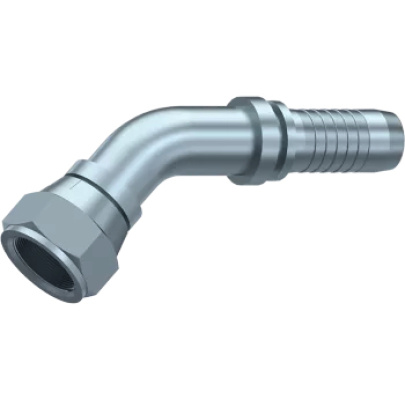

hydraulicka koncovka DKJ45, Hydraulicka koncovka DKJ45
- Kód produktu: DKJ45
DKJ 45 elbow, JIC zavit vnutorny 74 kuzel, SAE J516/J514
DKJ 45 elbow, JIC female thread 74 cone seat, SAE J516/J514
| 0304 DKJ45 | Hadica / Hose | Zavit | Kluc E | Oznacenie | ||
| Kod/Code | inch | DN | Size | Thread | Hex E | Description |
| 03040503 | 3/16 | 05 | -3 | 7/16-20 | 12 | DKJ45 DN05 7/16-20 |
| 805 | 1/4" | 6 | -4 | 7/16-20 | 12 | DKJ45 DN06 7/16-20 |
| 1762 | 1/4" | 6 | -4 | 1/2-20 | 14 | DKJ45 DN06 1/2-20 |
| 1763 | 1/4" | 6 | -4 | 9/16-18 | 17 | DKJ45 DN06 9/16-18 |
| 806 | 5/16" | 8 | -5 | 1/2-20 | 14 | DKJ45 DN08 1/2-20 |
| 1764 | 5/16" | 8 | -5 | 9/16-18 | 17 | DKJ45 DN08 9/16-18 |
| 03040820 | 5/16" | 8 | -5 | 3/4-16 | 19 | DKJ45 DN08 3/4-16 |
| 807 | 3/8" | 10 | -6 | 9/16-18 | 17 | DKJ45 DN10 9/16-18 |
| 1768 | 3/8" | 10 | -6 | 3/4-16 | 19 | DKJ45 DN10 3/4-16 |
| 1769 | 3/8" | 10 | -6 | 7/8-14 | 24 | DKJ45 DN10 7/8-14 |
| 808 | 1/2" | 13 | -8 | 3/4-16 | 19 | DKJ45 DN13 3/4-16 |
| 1770 | 1/2" | 13 | -8 | 7/8-14 | 24 | DKJ45 DN13 7/8-14 |
| 1771 | 1/2" | 13 | -8 | 1" 1/16-12 | 27 | DKJ45 DN13 1 1/16-12 |
| 809 | 5/8" | 16 | -10 | 7/8-14 | 24 | DKJ45 DN16 7/8-14 |
| 1772 | 5/8" | 16 | -10 | 1" 1/16-12 | 27 | DKJ45 DN16 1 1/16-12 |
| 810 | 3/4" | 20 | -12 | 1" 1/16-12 | 27 | DKJ45 DN20 1 1/16-12 |
| 03042021 | 3/4" | 20 | -12 | 1" 3/16-12 | 32 | DKJ45 DN20 1 3/16-12 |
| 1775 | 3/4" | 20 | -12 | 1" 5/16-12 | 34 | DKJ45 DN20 1 5/16-12 |
| 811 | 1" | 25 | -16 | 1" 5/16-12 | 34 | DKJ45 DN25 1 5/16-12 |
| 03042527 | 1" | 25 | -16 | 1" 5/8-12 | 42 | DKJ45 DN25 1 5/8-12 |
| 812 | 1 1/4" | 32 | -20 | 1" 5/8-12 | 42 | DKJ45 DN32 1 5/8-12 |
| 1779 | 1 1/2" | 40 | -24 | 1" 7/8-12 | 50 | DKJ45 DN40 1 7/8-12 |
| 1780 | 2" | 50 | -32 | 2" 1/2-12 | 60 | DKJ45 DN50 2 1/2-12 |
