hydraulicka koncovka DKOL, Hydraulicka koncovka DKOL
- Kód produktu: DKOL

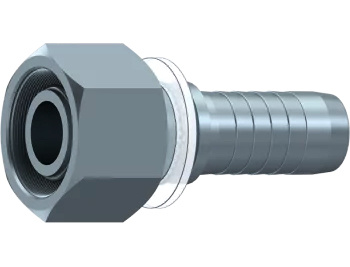

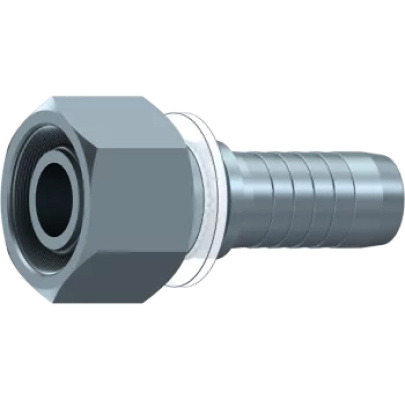

DKOL priame, metricky zavit vnutorny 24 kuzel, lahka rada s O-kruzkom
DKOL straight, female metric 24 cone seat, light series L.T. with O-ring
| 0110 DKOL | Hadica / Hose | Zavit | TR DIN | Kluc E | Oznacenie | ||
| Kod/Code | inch | DN | Size | Thread | DIN PIPE | Hex E | Description |
| 685 | 1/4" | 6 | -4 | M12x1,5 | 6 | 14 | DKOL DN06 M12x1,5 |
| 686 | 1/4" | 6 | -4 | M14x1,5 | 8 | 17 | DKOL DN06 M14x1,5 |
| 1801 | 1/4" | 6 | -4 | M16x1,5 | 10 | 19 | DKOL DN06 M16x1,5 |
| 1802 | 1/4" | 6 | -4 | M18x1,5 | 12 | 22 | DKOL DN06 M18x1,5 |
| 687 | 5/16" | 8 | -5 | M16x1,5 | 10 | 19 | DKOL DN08 M16x1,5 |
| 1803 | 5/16" | 8 | -5 | M18x1,5 | 12 | 22 | DKOL DN08 M18x1,5 |
| 1804 | 3/8" | 10 | -6 | M16x1,5 | 10 | 19 | DKOL DN10 M16x1,5 |
| 688 | 3/8" | 10 | -6 | M18x1,5 | 12 | 22 | DKOL DN10 M18x1,5 |
| 1805 | 3/8" | 10 | -6 | M22x1,5 | 15 | 27 | DKOL DN10 M22x1,5 |
| 689 | 1/2" | 13 | -8 | M22x1,5 | 15 | 27 | DKOL DN12 M22x1,5 |
| 1806 | 1/2" | 13 | -8 | M26x1,5 | 18 | 32 | DKOL DN12 M26x1,5 |
| 690 | 5/8" | 16 | -10 | M26x1,5 | 18 | 32 | DKOL DN16 M26x1,5 |
| 8139 | 5/8" | 16 | -10 | M27x1,5 | 18 | 32 | DKOL DN16 M27x1,5 |
| 2084 | 5/8" | 16 | -10 | M27x2 | 18 | 32 | DKOL DN16 M27x2 |
| 8210 | 3/4" | 19 | -12 | M30x1,5 | 22 | 36 | DKOL DN20 M30x1,5 |
| 691 | 3/4" | 19 | -12 | M30x2 | 22 | 36 | DKOL DN20 M30x2 |
| 692 | 1" | 25 | -16 | M36x2 | 28 | 41 | DKOL DN25 M36x2 |
| 16453 | 1" | 25 | -16 | M45x2 | 35 | 50 | DKOL DN25 M45x2 |
| 9469 | 1 1/4" | 32 | -20 | M45x2 | 35 | 50 | DKOL DN32 M45x1,5 |
| 693 | 1 1/4" | 32 | -20 | M45x2 | 35 | 50 | DKOL DN32 M45x2 |
| 1401 | 1 1/2" | 38 | -24 | M52x2 | 42 | 60 | DKOL DN40 M52x2 |
