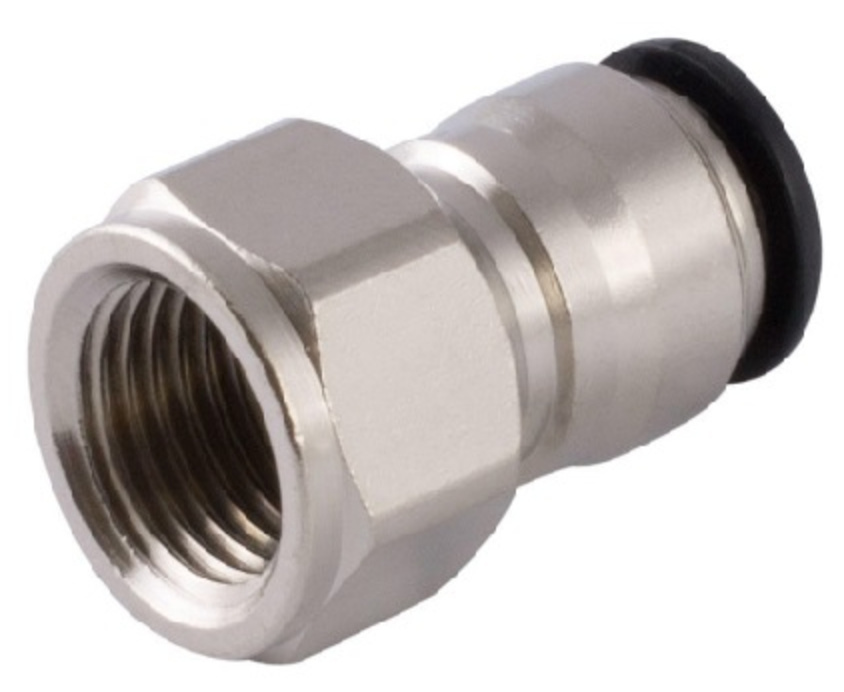

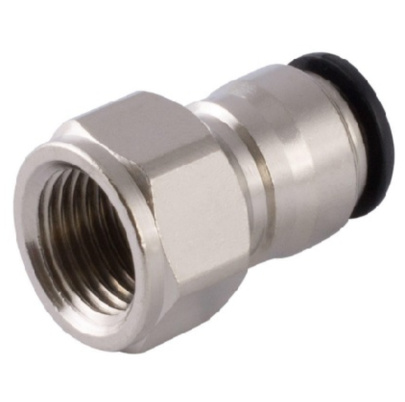

Mosadzna spojka s vnutornym zavitom
Mosadzna spojka s vnutornym zavitom AIGNEP Straight quick coupling with inside thread AIGNEP
- Kód produktu: MSSVZA
Mosadzna spojka s vnutornym zavitom
Straight quick coupling with inside thread

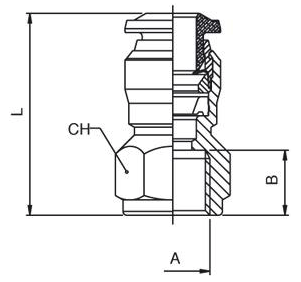

| Kod | Trubka (mm) | Zavit A | B (mm) | L (mm) | CH (mm) | Balenie (ks) | Oznacenie |
| Code | Pipe (mm) | Thread A | B (mm) | L (mm) | CH (mm) | Packed (pcs) | Description |
| 13201 | 4 | M5 | 5,5 | 21,0 | 11,0 | 10 | Mosadzna spojka s vnutornym zavitom DN04 / M5 |
| 13202 | 4 | 1/8 | 8,5 | 24,0 | 13,0 | 10 | Mosadzna spojka s vnutornym zavitom DN04 / G1/8 |
| 13203 | 4 | 1/4 | 11,0 | 27,5 | 16,0 | 10 | Mosadzna spojka s vnutornym zavitom DN04 / G1/4 |
| 13204 | 6 | 1/8 | 8,5 | 26,0 | 13,0 | 10 | Mosadzna spojka s vnutornym zavitom DN06 / G1/8 |
| 13205 | 6 | 1/4 | 11,0 | 29,5 | 16,0 | 10 | Mosadzna spojka s vnutornym zavitom DN06 / G1/4 |
| 13206 | 8 | 1/8 | 8,5 | 27,0 | 15,0 | 10 | Mosadzna spojka s vnutornym zavitom DN08 / G1/8 |
| 13207 | 8 | 1/4 | 11,0 | 29,5 | 17,0 | 10 | Mosadzna spojka s vnutornym zavitom DN08 / G1/4 |
| 13208 | 8 | 3/8 | 12,0 | 32,0 | 19,0 | 10 | Mosadzna spojka s vnutornym zavitom DN08 / G3/8 |
| 13209 | 10 | 1/4 | 11,0 | 32,0 | 18,0 | 10 | Mosadzna spojka s vnutornym zavitom DN10 / G1/4 |
| 13210 | 10 | 3/8 | 12,0 | 33,5 | 19,0 | 10 | Mosadzna spojka s vnutornym zavitom DN10 / G3/8 |
| 13211 | 10 | 1/2 | 15,0 | 39,0 | 24,0 | 10 | Mosadzna spojka s vnutornym zavitom DN10 / G1/2 |
| 13212 | 12 | 3/8 | 12,0 | 36,0 | 21,0 | 10 | Mosadzna spojka s vnutornym zavitom DN12 / G3/8 |
| 13213 | 12 | 1/2 | 15,0 | 41,0 | 24,0 | 10 | Mosadzna spojka s vnutornym zavitom DN12 / G1/2 |
