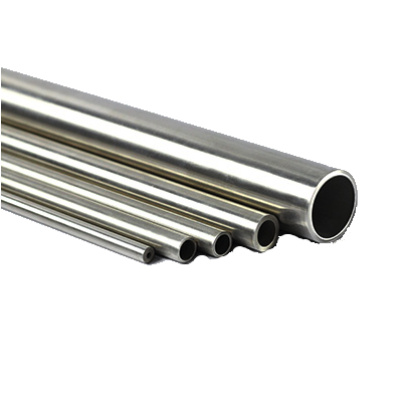

LOK Trubka nerez SS316
LOK Tube stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
LOK trubka nerez SS316 je pre LOK spojky, hrdla. Je mozne dodat aj v dlzke 100m v cievke ( na dopyt).
| Kod | Rozmer trubky OD (Inch/mm) | Rozmer trubky Tx (Inch/mm) | Váha kg/m | Dlžka m | Nazov |
| Code | Dimension tube OD (Inch/mm) | Dimension tube Tx (Inch/mm) | Weight kg/m | Lenght m | Description |
| MT-3-0.5-3M-TP316 | 3 | 0.5 | 0.021 | 3 | LOK Trubka nerez SS316 3 x 0.5 MT-3-0.5-3M-TP316 |
| MT-3-0.8-3M-TP316 | 3 | 0.8 | 0.027 | 3 | LOK Trubka nerez SS316 3 x 0.8 MT-3-0.8-3M-TP316 |
| MT-6-1.0-3M-TP316 | 6 | 1.0 | 0.125 | 3 | LOK Trubka nerez SS316 6 x 1.0 MT-6-1.0-3M-TP316 |
| MT-6-1.5-3M-TP316 | 6 | 1.5 | 0.169 | 3 | LOK Trubka nerez SS316 6 x 1.5 MT-6-1.5-3M-TP316 |
| MT-8-1.0-3M-TP316 | 8 | 1.0 | 0.175 | 3 | LOK Trubka nerez SS316 8 x 1.0 MT-8-1.0-3M-TP316 |
| MT-8-1.5-3M-TP316 | 8 | 1.5 | 0.244 | 3 | LOK Trubka nerez SS316 8 x 1.5 MT-8-1.5-3M-TP316 |
| MT-10-1.0-3M-TP316 | 10 | 1.0 | 0.225 | 3 | LOK Trubka nerez SS316 10 x 1.0 MT-10-1.0-3M-TP316 |
| MT-10-1.5-3M-TP316 | 10 | 1.5 | 0.319 | 3 | LOK Trubka nerez SS316 10 x 1.5 MT-10-1.5-3M-TP316 |
| MT-12-1.0-3M-TP316 | 12 | 1.0 | 0.275 | 3 | LOK Trubka nerez SS316 12 x 1.0 MT-12-1.0-3M-TP316 |
| MT-12-1.5-3M-TP316 | 12 | 1.5 | 0.394 | 3 | LOK Trubka nerez SS316 12 x 1.5 MT-12-1.5-3M-TP316 |
| MT-12-2.0-3M-TP316 | 12 | 2.0 | 0.500 | 3 | LOK Trubka nerez SS316 12 x 2.0 MT-12-2.0-3M-TP316 |
| MT-16-1.0-3M-TP316 | 16 | 1.0 | 0.375 | 3 | LOK Trubka nerez SS316 16 x 1.0 MT-16-1.0-3M-TP316 |
| MT-16-1.5-3M-TP316 | 16 | 1.5 | 0.507 | 3 | LOK Trubka nerez SS316 16 x 1.5 MT-16-1.5-3M-TP316 |
| MT-16-2.0-3M-TP316 | 16 | 2.0 | 0.651 | 3 | LOK Trubka nerez SS316 16 x 2.0 MT-16-2.0-3M-TP316 |
| MT-18-1.0-3M-TP316 | 18 | 1.0 | 0.425 | 3 | LOK Trubka nerez SS316 18 x 1.0 MT-18-1.0-3M-TP316 |
| MT-18-1.5-3M-TP316 | 18 | 1.5 | 0.619 | 3 | LOK Trubka nerez SS316 18 x 1.5 MT-18-1.5-3M-TP316 |
| MT-18-2.0-3M-TP316 | 18 | 2.0 | 0.801 | 3 | LOK Trubka nerez SS316 18 x 2.0 MT-18-2.0-3M-TP316 |
| MT-20-2.0-3M-TP316 | 20 | 2.0 | 0.901 | 3 | LOK Trubka nerez SS316 20 x 2.0 MT-20-2.0-3M-TP316 |
| MT-22-2.0-3M-TP316 | 22 | 2.0 | 1.000 | 3 | LOK Trubka nerez SS316 22 x 2.0 MT-22-2.0-3M-TP316 |
| MT-25-2.0-3M-TP316 | 25 | 2.0 | 1.150 | 3 | LOK Trubka nerez SS316 25 x 2.0 MT-25-2.0-3M-TP316 |
| MT-25-2.5-3M-TP316 | 25 | 2.5 | 1.410 | 3 | LOK Trubka nerez SS316 25 x 2.5 MT-25-2.5-3M-TP316 |
| MT-3-0.5-6M-TP316 | 3 | 0.5 | 0.021 | 6 | LOK Trubka nerez SS316 3 x 0.5 MT-3-0.5-6M-TP316 |
| MT-3-0.8-6M-TP316 | 3 | 0.8 | 0.027 | 6 | LOK Trubka nerez SS316 3 x 0.8 MT-3-0.8-6M-TP316 |
| MT-6-1.0-6M-TP316 | 6 | 1.0 | 0.125 | 6 | LOK Trubka nerez SS316 6 x 1.0 MT-6-1.0-6M-TP316 |
| MT-6-1.5-6M-TP316 | 6 | 1.5 | 0.169 | 6 | LOK Trubka nerez SS316 6 x 1.5 MT-6-1.5-6M-TP316 |
| MT-8-1.0-6M-TP316 | 8 | 1.0 | 0.175 | 6 | LOK Trubka nerez SS316 8 x 1.0 MT-8-1.0-6M-TP316 |
| MT-8-1.5-6M-TP316 | 8 | 1.5 | 0.244 | 6 | LOK Trubka nerez SS316 8 x 1.5 MT-8-1.5-6M-TP316 |
| MT-10-1.0-6M-TP316 | 10 | 1.0 | 0.225 | 6 | LOK Trubka nerez SS316 10 x 1.0 MT-10-1.0-6M-TP316 |
| MT-10-1.5-6M-TP316 | 10 | 1.5 | 0.319 | 6 | LOK Trubka nerez SS316 10 x 1.5 MT-10-1.5-6M-TP316 |
| MT-12-1.0-6M-TP316 | 12 | 1.0 | 0.275 | 6 | LOK Trubka nerez SS316 12 x 1.0 MT-12-1.0-6M-TP316 |
| MT-12-1.5-6M-TP316 | 12 | 1.5 | 0.394 | 6 | LOK Trubka nerez SS316 12 x 1.5 MT-12-1.5-6M-TP316 |
| MT-12-2.0-6M-TP316 | 12 | 2.0 | 0.500 | 6 | LOK Trubka nerez SS316 12 x 2.0 MT-12-2.0-6M-TP316 |
| MT-16-1.0-6M-TP316 | 16 | 1.0 | 0.375 | 6 | LOK Trubka nerez SS316 16 x 1.0 MT-16-1.0-6M-TP316 |
| MT-16-1.5-6M-TP316 | 16 | 1.5 | 0.507 | 6 | LOK Trubka nerez SS316 16 x 1.5 MT-16-1.5-6M-TP316 |
| MT-16-2.0-6M-TP316 | 16 | 2.0 | 0.651 | 6 | LOK Trubka nerez SS316 16 x 2.0 MT-16-2.0-6M-TP316 |
| MT-18-1.0-6M-TP316 | 18 | 1.0 | 0.425 | 6 | LOK Trubka nerez SS316 18 x 1.0 MT-18-1.0-6M-TP316 |
| MT-18-1.5-6M-TP316 | 18 | 1.5 | 0.619 | 6 | LOK Trubka nerez SS316 18 x 1.5 MT-18-1.5-6M-TP316 |
| MT-18-2.0-6M-TP316 | 18 | 2.0 | 0.801 | 6 | LOK Trubka nerez SS316 18 x 2.0 MT-18-2.0-6M-TP316 |
| MT-20-2.0-6M-TP316 | 20 | 2.0 | 0.901 | 6 | LOK Trubka nerez SS316 20 x 2.0 MT-20-2.0-6M-TP316 |
| MT-22-2.0-6M-TP316 | 22 | 2.0 | 1.000 | 6 | LOK Trubka nerez SS316 22 x 2.0 MT-22-2.0-6M-TP316 |
| MT-25-2.0-6M-TP316 | 25 | 2.0 | 1.150 | 6 | LOK Trubka nerez SS316 25 x 2.0 MT-25-2.0-6M-TP316 |
| MT-25-2.5-6M-TP316 | 25 | 2.5 | 1.410 | 6 | LOK Trubka nerez SS316 25 x 2.5 MT-25-2.5-6M-TP316 |
