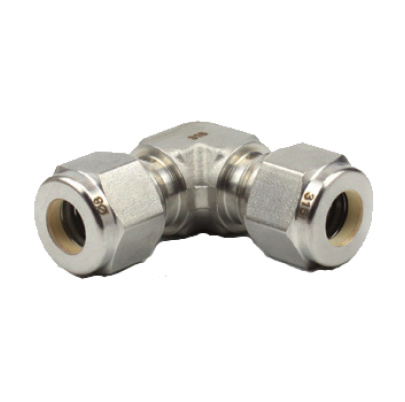

LOK L spojka nerez SS316

LOK L union stainless steel SS316



LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.





Tieto spojky su s dvojprstencovym systemom. Nase LOK L spojky nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

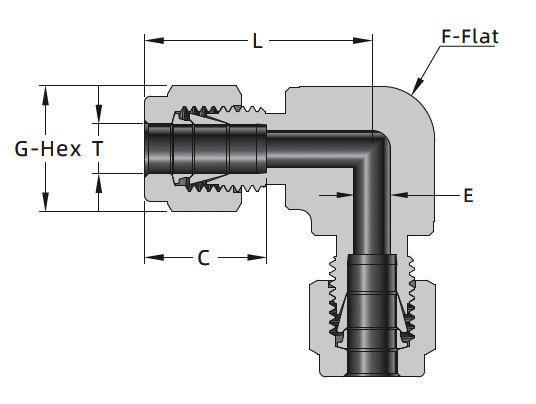

Kod Rozmer trubky T (Inch/mm) L mm C mm G mm F mm E mm Nahrada za: Nazov
Code Dimension tube T (Inch/mm) Replacement: Description
F1-UE-F1-316 1/16 17.8 8.6 7.9 9.5 1.3 SS-100-9 LOK L spojka nerez SS316 1/16 F1-UE-F1-316
F2-UE-F2-316 1/8 22.4 12.7 11.1 9.5 2.3 SS-200-9 LOK L spojka nerez SS316 1/8 F2-UE-F2-316
F3-UE-F3-316 3/16 25.4 13.7 12.7 12.7 3.0 SS-300-9 LOK L spojka nerez SS316 3/16 F3-UE-F3-316
F4-UE-F4-316 1/4 26.9 15.2 14.3 12.7 4.8 SS-400-9 LOK L spojka nerez SS316 1/4 F4-UE-F4-316
F5-UE-F5-316 5/16 28.7 16.3 15.9 14.3 6.4 SS-500-9 LOK L spojka nerez SS316 5/16 F5-UE-F5-316
F6-UE-F6-316 3/8 30.5 16.8 17.5 15.9 7.1 SS-600-9 LOK L spojka nerez SS316 3/8 F6-UE-F6-316
F8-UE-F8-316 1/2 36.1 22.9 22.2 20.6 10.4 SS-810-9 LOK L spojka nerez SS316 1/2 F8-UE-F8-316
F10-UE-F10-316 5/8 38.1 24.4 25.4 23.8 12.7 SS-1010-9 LOK L spojka nerez SS316 5/8 F10-UE-F10-316
F12-UE-F12-316 3/4 39.9 24.4 28.6 27.0 15.7 SS-1210-9 LOK L spojka nerez SS316 3/4 F12-UE-F12-316
F14-UE-F14-316 7/8 44.7 25.9 31.8 34.9 18.3 SS-1410-9 LOK L spojka nerez SS316 7/8 F14-UE-F14-316
F16-UE-F16-316 1 49.0 31.2 38.1 34.9 22.4 SS-1610-9 LOK L spojka nerez SS316 1 F16-UE-F16-316
F18-UE-F18-316 1 1/8 55.1 31.2 41.3 42.9 24.6 SS-B-1810-9 LOK L spojka nerez SS316 1 1/8 F18-UE-F18-316
F20-UE-F20-316 1 1/4 66.5 41.1 47.6 42.9 27.7 SS-2000-9 LOK L spojka nerez SS316 1 1/4 F20-UE-F20-316
F24-UE-F24-316 1 1/2 78.0 50.0 57.2 50.8 34.0 SS-2400-9 LOK L spojka nerez SS316 1 1/2 F24-UE-F24-316
M3-UE-M3-316 3 22.3 12.9 12 9.5 2.4 SS-3M0-9 LOK L spojka nerez SS316 3 M3-UE-M3-316
M4-UE-M4-316 4 25.4 13.7 12 12.7 2.4 SS-4M0-9 LOK L spojka nerez SS316 4 M4-UE-M4-316
M6-UE-M6-316 6 27.0 15.3 14 12.7 4.8 SS-6M0-9 LOK L spojka nerez SS316 6 M6-UE-M6-316
M8-UE-M8-316 8 28.8 16.2 16 14.3 6.4 SS-8M0-9 LOK L spojka nerez SS316 8 M8-UE-M8-316
M10-UE-M10-316 10 31.5 17.2 19 17.5 7.9 SS-10M0-9 LOK L spojka nerez SS316 10 M10-UE-M10-316
M12-UE-M12-316 12 36.0 22.8 22 20.6 9.5 SS-12M0-9 LOK L spojka nerez SS316 12 M12-UE-M12-316
M14-UE-M14-316 14 38.0 24.4 25 23.8 11.0 SS-14M0-9 LOK L spojka nerez SS316 14 M14-UE-M14-316
M15-UE-M15-316 15 38.8 24.4 25 23.8 11.9 SS-15M0-9 LOK L spojka nerez SS316 15 M15-UE-M15-316
M16-UE-M16-316 16 38.0 24.4 25 23.8 12.7 SS-16M0-9 LOK L spojka nerez SS316 16 M16-UE-M16-316
M18-UE-M18-316 18 39.8 24.4 30 27.0 15.1 SS-18M0-9 LOK L spojka nerez SS316 18 M18-UE-M18-316
M20-UE-M20-316 20 44.6 26.0 32 34.9 15.9 SS-20M0-9 LOK L spojka nerez SS316 20 M20-UE-M20-316
M22-UE-M22-316 22 44.6 26.0 32 34.9 18.3 SS-22M0-9 LOK L spojka nerez SS316 22 M22-UE-M22-316
M25-UE-M25-316 25 49.1 31.3 38 34.9 21.8 SS-25M0-9 LOK L spojka nerez SS316 25 M25-UE-M25-316
M28-UE-M28-316 28 64.0 36.6 46 42.9 21.8 SS-28M0-9 LOK L spojka nerez SS316 28 M28-UE-M28-316
M30-UE-M30-316 30 69.9 39.6 50 42.9 26.2 SS-30M0-9 LOK L spojka nerez SS316 30 M30-UE-M30-316
M32-UE-M32-316 32 72.3 42.0 50 42.9 28.6 SS-32M0-9 LOK L spojka nerez SS316 32 M32-UE-M32-316
M38-UE-M38-316 38 84.0 49.4 60 50.8 33.7 SS-38M0-9 LOK L spojka nerez SS316 38 M38-UE-M38-316
