LOK spojka BSPT / Trubka nerez SS316
LOK spojka BSPT / Trubka nerez SS316
- Kód produktu: FMCMBT
LOK spojka BSPT / Trubka nerez SS316
LOK union BSPT / Tube stainless steel SS316

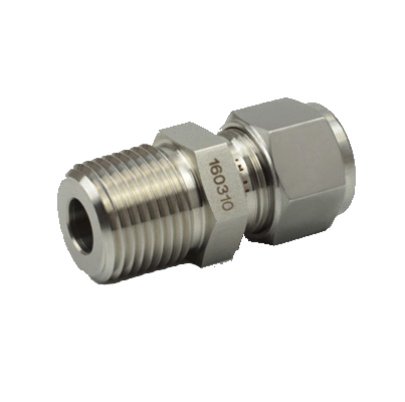

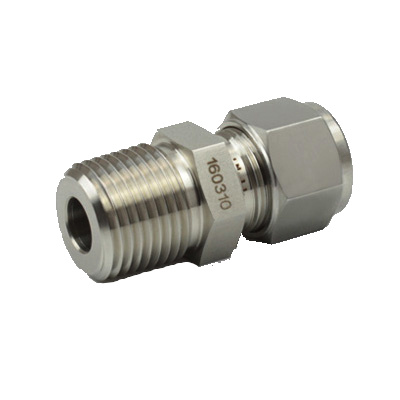

LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK spojky BSPT / Trubka nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

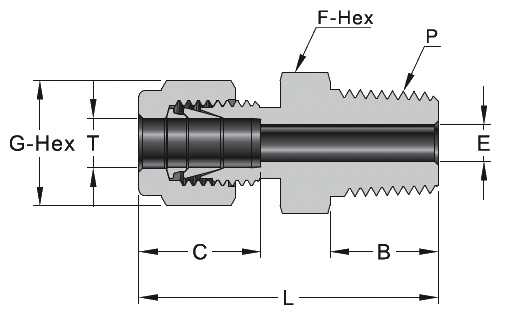

| Kod | Rozmer trubky T (Inch/mm) | Rozmer P - BSPT | L mm | B mm | C mm | E mm | G mm | F mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension P - BSPT | Replacement: | Description | ||||||
| F2-MC-MBT2-316 | 1/8 | 1/8 | 30.5 | 9.7 | 12.7 | 2.3 | 11.1 | 11.1 | SS-200-1-2RT | LOK spojka BSPT / Trubka nerez SS316 1/8 / 1/8 F2-MC-MBT2-316 |
| F2-MC-MBT4-316 | 1/8 | 1/4 | 35.6 | 14.2 | 12.7 | 2.3 | 11.1 | 14.3 | SS-200-1-4RT | LOK spojka BSPT / Trubka nerez SS316 1/8 / 1/4 F2-MC-MBT4-316 |
| F4-MC-MBT2-316 | 1/4 | 1/8 | 32.8 | 9.7 | 15.2 | 4.8 | 14.3 | 12.7 | SS-400-1-2RT | LOK spojka BSPT / Trubka nerez SS316 1/4 / 1/8 F4-MC-MBT2-316 |
| F4-MC-MBT4-316 | 1/4 | 1/4 | 37.8 | 14.2 | 15.2 | 4.8 | 14.3 | 14.3 | SS-400-1-4RT | LOK spojka BSPT / Trubka nerez SS316 1/4 / 1/4 F4-MC-MBT4-316 |
| F4-MC-MBT6-316 | 1/4 | 3/8 | 38.4 | 14.2 | 15.2 | 4.8 | 14.3 | 17.5 | SS-400-1-6RT | LOK spojka BSPT / Trubka nerez SS316 1/4 / 3/8 F4-MC-MBT6-316 |
| F4-MC-MBT8-316 | 1/4 | 1/2 | 44.7 | 19.1 | 15.2 | 4.8 | 14.3 | 22.2 | SS-400-1-8RT | LOK spojka BSPT / Trubka nerez SS316 1/4 / 1/2 F4-MC-MBT8-316 |
| F5-MC-MBT2-316 | 5/16 | 1/8 | 34.0 | 9.7 | 16.3 | 4.8 | 15.9 | 14.3 | SS-500-1-2RT | LOK spojka BSPT / Trubka nerez SS316 5/16 / 1/8 F5-MC-MBT2-316 |
| F5-MC-MBT4-316 | 5/16 | 1/4 | 38.6 | 9.7 | 16.3 | 6.4 | 15.9 | 14.3 | SS-500-1-4RT | LOK spojka BSPT / Trubka nerez SS316 5/16 / 1/4 F5-MC-MBT4-316 |
| F6-MC-MBT2-316 | 3/8 | 1/8 | 35.3 | 9.7 | 16.8 | 4.8 | 17.5 | 15.9 | SS-600-1-2RT | LOK spojka BSPT / Trubka nerez SS316 3/8 / 1/8 F6-MC-MBT2-316 |
| F6-MC-MBT4-316 | 3/8 | 1/4 | 39.9 | 14.2 | 16.8 | 7.1 | 17.5 | 15.9 | SS-600-1-4RT | LOK spojka BSPT / Trubka nerez SS316 3/8 / 1/4 F6-MC-MBT4-316 |
| F6-MC-MBT6-316 | 3/8 | 3/8 | 39.9 | 14.2 | 16.8 | 7.1 | 17.5 | 17.5 | SS-600-1-6RT | LOK spojka BSPT / Trubka nerez SS316 3/8 / 3/8 F6-MC-MBT6-316 |
| F6-MC-MBT8-316 | 3/8 | 1/2 | 46.2 | 19.1 | 16.8 | 7.1 | 17.5 | 22.2 | SS-600-1-8RT | LOK spojka BSPT / Trubka nerez SS316 3/8 / 1/2 F6-MC-MBT8-316 |
| F6-MC-MBT12-316 | 3/8 | 3/4 | 47.8 | 19.1 | 16.8 | 7.1 | 17.5 | 27.0 | SS-600-1-12RT | LOK spojka BSPT / Trubka nerez SS316 3/8 / 3/4 F6-MC-MBT12-316 |
| F8-MC-MBT4-316 | 1/2 | 1/4 | 43.4 | 14.2 | 22.9 | 7.1 | 22.2 | 20.6 | SS-810-1-4RT | LOK spojka BSPT / Trubka nerez SS316 1/2 / 1/4 F8-MC-MBT4-316 |
| F8-MC-MBT6-316 | 1/2 | 3/8 | 43.4 | 14.2 | 22.9 | 9.7 | 22.2 | 20.6 | SS-810-1-6RT | LOK spojka BSPT / Trubka nerez SS316 1/2 / 3/8 F8-MC-MBT6-316 |
| F8-MC-MBT8-316 | 1/2 | 1/2 | 49.0 | 19.1 | 22.9 | 10.4 | 22.2 | 22.2 | SS-810-1-8RT | LOK spojka BSPT / Trubka nerez SS316 1/2 / 1/2 F8-MC-MBT8-316 |
| F8-MC-MBT12-316 | 1/2 | 3/4 | 50.5 | 19.1 | 22.9 | 10.4 | 22.2 | 27.0 | SS-810-1-12RT | LOK spojka BSPT / Trubka nerez SS316 1/2 / 3/4 F8-MC-MBT12-316 |
| F10-MC-MBT8-316 | 5/8 | 1/2 | 49.0 | 19.1 | 24.4 | 11.9 | 25.4 | 23.8 | SS-1010-1-8RT | LOK spojka BSPT / Trubka nerez SS316 5/8 / 1/2 F10-MC-MBT8-316 |
| F12-MC-MBT12-316 | 3/4 | 3/4 | 50.5 | 19.1 | 24.4 | 15.7 | 28.6 | 27.0 | SS-1210-1-12RT | LOK spojka BSPT / Trubka nerez SS316 3/4 / 3/4 F12-MC-MBT12-316 |
| F12-MC-MBT16-316 | 3/4 | 1 | 57.2 | 23.9 | 24.4 | 15.7 | 28.6 | 34.9 | SS-1210-1-16RT | LOK spojka BSPT / Trubka nerez SS316 3/4 / 1 F12-MC-MBT16-316 |
| F16-MC-MBT12-316 | 1 | 3/4 | 57.4 | 19.1 | 31.2 | 15.7 | 38.1 | 34.9 | SS-1610-1-12RT | LOK spojka BSPT / Trubka nerez SS316 1 / 3/4 F16-MC-MBT12-316 |
| F16-MC-MBT16-316 | 1 | 1 | 62.2 | 23.9 | 31.2 | 22.4 | 38.1 | 34.9 | SS-1610-1-16RT | LOK spojka BSPT / Trubka nerez SS316 1 / 1 F16-MC-MBT16-316 |
| M2-MC-MBT2-316 | 2 | 1/8 | 30.5 | 9.7 | 12.9 | 1.7 | 12 | 12 | SS-2M0-1-2RT | LOK spojka BSPT / Trubka nerez SS316 2 / 1/8 M2-MC-MBT2-316 |
| M3-MC-MBT2-316 | 3 | 1/8 | 30.5 | 9.7 | 12.9 | 2.4 | 12 | 12 | SS-3M0-1-2RT | LOK spojka BSPT / Trubka nerez SS316 3 / 1/8 M3-MC-MBT2-316 |
| M3-MC-MBT4-316 | 3 | 1/4 | 35.6 | 14.2 | 12.9 | 2.4 | 12 | 14 | SS-3M0-1-4RT | LOK spojka BSPT / Trubka nerez SS316 3 / 1/4 M3-MC-MBT4-316 |
| M4-MC-MBT2-316 | 4 | 1/8 | 31.2 | 9.7 | 13.7 | 2.4 | 12 | 12 | SS-4M0-1-2RT | LOK spojka BSPT / Trubka nerez SS316 4 / 1/8 M4-MC-MBT2-316 |
| M4-MC-MBT4-316 | 4 | 1/4 | 36.3 | 14.2 | 13.7 | 2.4 | 12 | 14 | SS-4M0-1-4RT | LOK spojka BSPT / Trubka nerez SS316 4 / 1/4 M4-MC-MBT4-316 |
| M6-MC-MBT2-316 | 6 | 1/8 | 32.8 | 9.7 | 15.3 | 4.8 | 14 | 14 | SS-6M0-1-2RT | LOK spojka BSPT / Trubka nerez SS316 6 / 1/8 M6-MC-MBT2-316 |
| M6-MC-MBT4-316 | 6 | 1/4 | 37.9 | 14.2 | 15.3 | 4.8 | 14 | 14 | SS-6M0-1-4RT | LOK spojka BSPT / Trubka nerez SS316 6 / 1/4 M6-MC-MBT4-316 |
| M6-MC-MBT6-316 | 6 | 3/8 | 38.4 | 14.2 | 15.3 | 4.8 | 14 | 18 | SS-6M0-1-6RT | LOK spojka BSPT / Trubka nerez SS316 6 / 3/8 M6-MC-MBT6-316 |
| M6-MC-MBT8-316 | 6 | 1/2 | 44.7 | 19.1 | 15.3 | 4.8 | 14 | 22 | SS-6M0-1-8RT | LOK spojka BSPT / Trubka nerez SS316 6 / 1/2 M6-MC-MBT8-316 |
| M8-MC-MBT2-316 | 8 | 1/8 | 34.2 | 9.7 | 16.2 | 4.8 | 16 | 15 | SS-8M0-1-2RT | LOK spojka BSPT / Trubka nerez SS316 8 / 1/8 M8-MC-MBT2-316 |
| M8-MC-MBT4-316 | 8 | 1/4 | 38.7 | 14.2 | 16.2 | 6.4 | 16 | 15 | SS-8MO-1-4RT | LOK spojka BSPT / Trubka nerez SS316 8 / 1/4 M8-MC-MBT4-316 |
| M8-MC-MBT6-316 | 8 | 3/8 | 39.2 | 14.2 | 16.2 | 6.4 | 16 | 18 | SS-8M0-1-6RT | LOK spojka BSPT / Trubka nerez SS316 8 / 3/8 M8-MC-MBT6-316 |
| M8-MC-MBT8-316 | 8 | 1/2 | 45.6 | 19.1 | 16.2 | 6.4 | 16 | 22 | SS-8M0-1-8RT | LOK spojka BSPT / Trubka nerez SS316 8 / 1/2 M8-MC-MBT8-316 |
| M10-MC-MBT2-316 | 10 | 1/8 | 36.3 | 9.7 | 17.2 | 4.8 | 19 | 18 | SS-10M0-1-2RT | LOK spojka BSPT / Trubka nerez SS316 10 / 1/8 M10-MC-MBT2-316 |
| M10-MC-MBT4-316 | 10 | 1/4 | 40.9 | 14.2 | 17.2 | 7.1 | 19 | 18 | SS-10M0-1-4RT | LOK spojka BSPT / Trubka nerez SS316 10 / 1/4 M10-MC-MBT4-316 |
| M10-MC-MBT6-316 | 10 | 3/8 | 40.9 | 14.2 | 17.2 | 7.9 | 19 | 18 | SS-10M0-1-6RT | LOK spojka BSPT / Trubka nerez SS316 10 / 3/8 M10-MC-MBT6-316 |
| M10-MC-MBT8-316 | 10 | 1/2 | 46.5 | 19.1 | 17.2 | 7.9 | 19 | 22 | SS-10M0-1-8RT | LOK spojka BSPT / Trubka nerez SS316 10 / 1/2 M10-MC-MBT8-316 |
| M10-MC-MBT12-316 | 10 | 3/4 | 48.0 | 19.1 | 17.2 | 7.9 | 19 | 27 | SS-10M0-1-12RT | LOK spojka BSPT / Trubka nerez SS316 10 / 3/4 M10-MC-MBT12-316 |
| M12-MC-MBT2-316 | 12 | 1/8 | 38.3 | 9.7 | 22.8 | 4.8 | 22 | 22 | LOK spojka BSPT / Trubka nerez SS316 12 / 1/8 M12-MC-MBT2-316 | |
| M12-MC-MBT4-316 | 12 | 1/4 | 43.4 | 14.2 | 22.8 | 7.1 | 22 | 22 | SS-12M0-1-4RT | LOK spojka BSPT / Trubka nerez SS316 12 / 1/4 M12-MC-MBT4-316 |
| M12-MC-MBT6-316 | 12 | 3/8 | 43.4 | 14.2 | 22.8 | 9.5 | 22 | 22 | SS-12M0-1-6RT | LOK spojka BSPT / Trubka nerez SS316 12 / 3/8 M12-MC-MBT6-316 |
| M12-MC-MBT8-316 | 12 | 1/2 | 49.0 | 19.1 | 22.8 | 9.5 | 22 | 22 | SS-12M0-1-8RT | LOK spojka BSPT / Trubka nerez SS316 12 / 1/2 M12-MC-MBT8-316 |
| M12-MC-MBT12-316 | 12 | 3/4 | 50.5 | 19.1 | 22.8 | 9.5 | 22 | 27 | SS-12M0-1_12RT | LOK spojka BSPT / Trubka nerez SS316 12 / 3/4 M12-MC-MBT12-316 |
| M14-MC-MBT2-316 | 14 | 1/8 | 38.8 | 9.7 | 24.4 | 4.8 | 25 | 24 | LOK spojka BSPT / Trubka nerez SS316 14 / 1/8 M14-MC-MBT2-316 | |
| M14-MC-MBT4-316 | 14 | 1/4 | 44.1 | 14.2 | 24.4 | 7.1 | 25 | 24 | SS-14M0-1-4RT | LOK spojka BSPT / Trubka nerez SS316 14 / 1/4 M14-MC-MBT4-316 |
| M14-MC-MBT6-316 | 14 | 3/8 | 44.1 | 14.2 | 24.4 | 7.9 | 25 | 24 | SS_14M0-1-6RT | LOK spojka BSPT / Trubka nerez SS316 14 / 3/8 M14-MC-MBT6-316 |
| M14-MC-MBT8-316 | 14 | 1/2 | 49.0 | 19.1 | 24.4 | 11.1 | 25 | 24 | LOK spojka BSPT / Trubka nerez SS316 14 / 1/2 M14-MC-MBT8-316 | |
| M14-MC-MBT12-316 | 14 | 3/4 | 50.5 | 19.1 | 24.4 | 11.1 | 25 | 27 | LOK spojka BSPT / Trubka nerez SS316 14 / 3/4 M14-MC-MBT12-316 | |
| M15-MC-MBT8-316 | 15 | 1/2 | 49.0 | 19.1 | 24.4 | 11.9 | 25 | 24 | SS-15M0-1-8RT | LOK spojka BSPT / Trubka nerez SS316 15 / 1/2 M15-MC-MBT8-316 |
| M16-MC-MBT4-316 | 16 | 1/4 | 44.1 | 14.2 | 24.4 | 7.1 | 25 | 24 | SS-16M0-1-4RT | LOK spojka BSPT / Trubka nerez SS316 16 / 1/4 M16-MC-MBT4-316 |
| M16-MC-MBT6-316 | 16 | 3/8 | 44.1 | 14.2 | 24.4 | 9.5 | 25 | 24 | SS-16M0-1-6RT | LOK spojka BSPT / Trubka nerez SS316 16 / 3/8 M16-MC-MBT6-316 |
| M16-MC-MBT8-316 | 16 | 1/2 | 49.0 | 19.1 | 24.4 | 11.9 | 25 | 24 | SS-16M0-1-8RT | LOK spojka BSPT / Trubka nerez SS316 16 / 1/2 M16-MC-MBT8-316 |
| M16-MC-MBT12-316 | 16 | 3/4 | 50.5 | 19.1 | 24.4 | 12.7 | 25 | 27 | SS-16M0-1-12RT | LOK spojka BSPT / Trubka nerez SS316 16 / 3/4 M16-MC-MBT12-316 |
| M18-MC-MBT8-316 | 18 | 1/2 | 50.5 | 19.1 | 24.4 | 11.9 | 30 | 27 | SS-18M0-1-8RT | LOK spojka BSPT / Trubka nerez SS316 18 / 1/2 M18-MC-MBT8-316 |
| M18-MC-MBT12-316 | 18 | 3/4 | 50.5 | 19.1 | 24.4 | 15.1 | 30 | 27 | SS-18M0-1-12RT | LOK spojka BSPT / Trubka nerez SS316 18 / 3/4 M18-MC-MBT12-316 |
| M20-MC-MBT8-316 | 20 | 1/2 | 52.3 | 19.1 | 26.0 | 11.9 | 32 | 30 | SS-20M0-1-8RT | LOK spojka BSPT / Trubka nerez SS316 20 / 1/2 M20-MC-MBT8-316 |
| M20-MC-MBT12-316 | 20 | 3/4 | 52.3 | 19.1 | 26.0 | 15.9 | 32 | 30 | SS-20M0-1-12RT | LOK spojka BSPT / Trubka nerez SS316 20 / 3/4 M20-MC-MBT12-316 |
| M22-MC-MBT12-316 | 22 | 3/4 | 52.3 | 19.1 | 26.0 | 15.9 | 32 | 30 | SS-22M0-1-12RT | LOK spojka BSPT / Trubka nerez SS316 22 / 3/4 M22-MC-MBT12-316 |
| M22-MC-MBT16-316 | 22 | 1 | 57.1 | 23.9 | 26.0 | 18.3 | 32 | 35 | SS_22M0-1-16RT | LOK spojka BSPT / Trubka nerez SS316 22 / 1 M22-MC-MBT16-316 |
| M25-MC-MBT8-316 | 25 | 1/2 | 57.5 | 19.1 | 31.3 | 11.9 | 38 | 35 | SS-25M0-1-8RT | LOK spojka BSPT / Trubka nerez SS316 25 / 1/2 M25-MC-MBT8-316 |
| M25-MC-MBT12-316 | 25 | 3/4 | 57.5 | 19.1 | 31.3 | 15.9 | 38 | 35 | SS-25M0-1_12RT | LOK spojka BSPT / Trubka nerez SS316 25 / 3/4 M25-MC-MBT12-316 |
| M25-MC-MBT16-316 | 25 | 1 | 62.3 | 23.9 | 31.3 | 21.8 | 38 | 35 | SS-25M0-1-16RT | LOK spojka BSPT / Trubka nerez SS316 25 / 1 M25-MC-MBT16-316 |
| M28-MC-MBT16-316 | 28 | 1 | 72.4 | 23.9 | 36.6 | 21.8 | 46 | 41 | SS-28M0-1-16RT | LOK spojka BSPT / Trubka nerez SS316 28 / 1 M28-MC-MBT16-316 |
| M28-MC-MBT20-316 | 28 | 1 1/4 | 73.1 | 23.9 | 36.6 | 21.8 | 46 | 46 | SS-28M0-1-20RT | LOK spojka BSPT / Trubka nerez SS316 28 / 1 1/4 M28-MC-MBT20-316 |
| M30-MC-MBT20-316 | 30 | 1 1/4 | 77.2 | 23.9 | 39.6 | 26.2 | 50 | 46 | SS-30M0-1-20RT | LOK spojka BSPT / Trubka nerez SS316 30 / 1 1/4 M30-MC-MBT20-316 |
| M32-MC-MBT20-316 | 32 | 1 1/4 | 79.6 | 23.9 | 42.0 | 28.6 | 50 | 46 | SS-32M0-1-20RT | LOK spojka BSPT / Trubka nerez SS316 32 / 1 1/4 M32-MC-MBT20-316 |
| M38-MC-MBT24-316 | 38 | 1 1/2 | 91.6 | 26.2 | 49.4 | 33.7 | 60 | 55 | SS-38M0-1-24RT | LOK spojka BSPT / Trubka nerez SS316 38 / 1 1/2 M38-MC-MBT24-316 |
