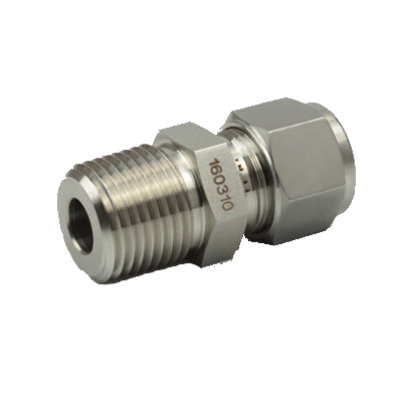

LOK spojka BSPP / Trubka nerez SS316
LOK spojka BSPP / Trubka nerez SS316
- Kód produktu: FMCMBP

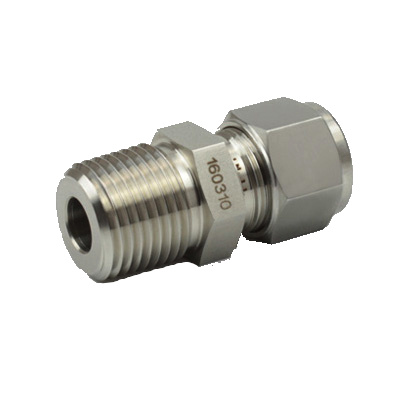

LOK spojka BSPP / Trubka nerez SS316
LOK union BSPP / Tube stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK spojky BSPP / Trubka nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

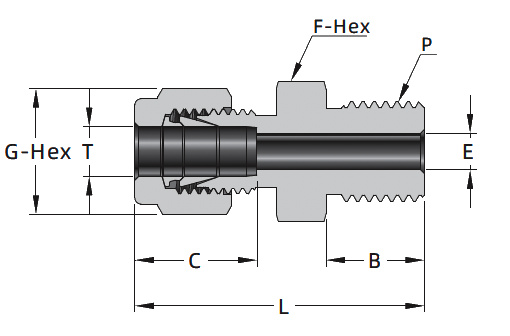

| Kod | Rozmer trubky T (Inch/mm) | Rozmer P - BSPP | L mm | B mm | C mm | E mm | G mm | F mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension P - BSPP | Replacement: | Description | ||||||
| F4-MC-MBP6-316 | 1/4 | 3/8 | 38.4 | 14.2 | 15.2 | 4.8 | 14.3 | 17.5 | LOK spojka BSPP / Trubka nerez SS316 1/4 / 3/8 F4-MC-MBP6-316 | |
| F6-MC-MBP6-316 | 3/8 | 3/8 | 39.9 | 14.2 | 16.8 | 7.1 | 17.5 | 17.5 | LOK spojka BSPP / Trubka nerez SS316 3/8 / 3/8 F6-MC-MBP6-316 | |
| M6-MC-MBP4-316 | 6 | 1/4 | 36.9 | 12.9 | 15.3 | 4.8 | 14 | 14 | LOK spojka BSPP / Trubka nerez SS316 6 / 1/4 M6-MC-MBP4-316 | |
| M6-MC-MBP6-316 | 6 | 3/8 | 39.5 | 14.2 | 15.3 | 4.8 | 14 | 18 | LOK spojka BSPP / Trubka nerez SS316 6 / 3/8 M6-MC-MBP6-316 | |
| M8-MC-MBP2-316 | 8 | 1/8 | 33.9 | 9.8 | 16.2 | 4.0 | 16 | 14 | LOK spojka BSPP / Trubka nerez SS316 8 / 1/8 M8-MC-MBP2-316 | |
| M8-MC-MBP4-316 | 8 | 1/4 | 37.0 | 12.9 | 16.2 | 6.4 | 16 | 14 | LOK spojka BSPP / Trubka nerez SS316 8 / 1/4 M8-MC-MBP4-316 | |
| M8-MC-MBP6-316 | 8 | 3/8 | 39.3 | 14.2 | 16.2 | 6.4 | 16 | 18 | LOK spojka BSPP / Trubka nerez SS316 8 / 3/8 M8-MC-MBP6-316 | |
| M8-MC-MBP8-316 | 8 | 1/2 | 45.4 | 18.8 | 16.2 | 6.4 | 16 | 22 | LOK spojka BSPP / Trubka nerez SS316 8 / 1/2 M8-MC-MBP8-316 | |
| M10-MC-MBP4-316 | 10 | 1/4 | 39.5 | 12.9 | 17.2 | 5.9 | 19 | 18 | LOK spojka BSPP / Trubka nerez SS316 10 / 1/4 M10-MC-MBP4-316 | |
| M10-MC-MBP8-316 | 10 | 1/2 | 46.3 | 18.8 | 17.2 | 7.9 | 19 | 22 | LOK spojka BSPP / Trubka nerez SS316 10 / 1/2 M10-MC-MBP8-316 | |
| M12-MC-MBP6-316 | 12 | 3/8 | 44.2 | 14.2 | 22.8 | 7.9 | 22 | 22 | LOK spojka BSPP / Trubka nerez SS316 12 / 3/8 M12-MC-MBP6-316 | |
| M12-MC-MBP8-316 | 12 | 1/2 | 49.0 | 18.8 | 22.8 | 9.5 | 22 | 22 | LOK spojka BSPP / Trubka nerez SS316 12 / 1/2 M12-MC-MBP8-316 | |
| M14-MC-MBP4-316 | 14 | 1/4 | 42.9 | 12.9 | 24.4 | 5.9 | 25 | 24 | LOK spojka BSPP / Trubka nerez SS316 14 / 1/4 M14-MC-MBP4-316 | |
| M16-MC-MBP6-316 | 16 | 3/8 | 43.4 | 14.2 | 24.4 | 7.9 | 25 | 24 | LOK spojka BSPP / Trubka nerez SS316 16 / 3/8 M16-MC-MBP6-316 | |
| M16-MC-MBP8-316 | 16 | 1/2 | 47.9 | 18.8 | 24.4 | 9.5 | 25 | 24 | LOK spojka BSPP / Trubka nerez SS316 16 / 1/2 M16-MC-MBP8-316 | |
| M18-MC-MBP8-316 | 18 | 1/2 | 49.8 | 18.8 | 24.4 | 9.5 | 30 | 27 | LOK spojka BSPP / Trubka nerez SS316 18 / 1/2 M18-MC-MBP8-316 |
