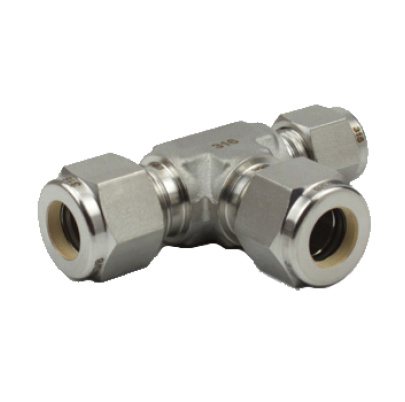

LOK T spojka / trubka nerez SS316
LOK T spojka / trubka nerez SS316
- Kód produktu: FUTFF
LOK T spojka / trubka nerez SS316
LOK T union / tube stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK T spojka / trubka nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

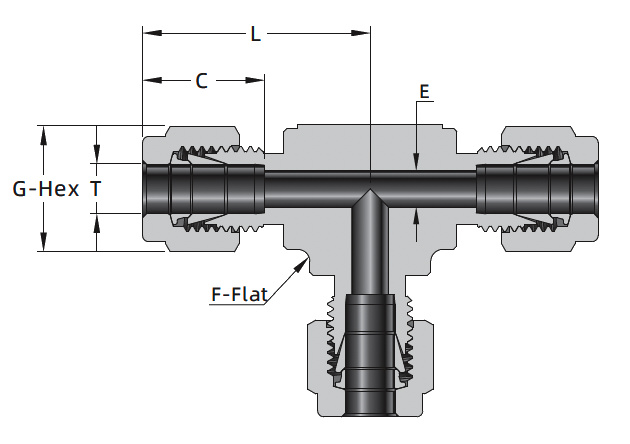

| Kod | Rozmer trubky T (Inch/mm) | L mm | C mm | G mm | F mm | E mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Replacement: | Description | |||||
| F1-UT-F1-F1-316 | 1/16 | 17.8 | 8.6 | 7.9 | 9.5 | 1.3 | SS-100-3 | LOK T spojka / trubka nerez SS316 1/16 F1-UT-F1-F1-316 |
| F2-UT-F2-F2-316 | 1/8 | 22.4 | 12.7 | 11.1 | 9.5 | 2.3 | SS-200-3 | LOK T spojka / trubka nerez SS316 1/8 F2-UT-F2-F2-316 |
| F3-UT-F3-F3-316 | 3/16 | 24.4 | 13.7 | 12.7 | 11.1 | 3.0 | SS-300-3 | LOK T spojka / trubka nerez SS316 3/16 F3-UT-F3-F3-316 |
| F4-UT-F4-F4-316 | 1/4 | 26.9 | 15.2 | 14.3 | 12.7 | 4.8 | SS-400-3 | LOK T spojka / trubka nerez SS316 1/4 F4-UT-F4-F4-316 |
| F5-UT-F5-F5-316 | 5/16 | 29.7 | 16.2 | 15.9 | 15.9 | 6.4 | SS-500-3 | LOK T spojka / trubka nerez SS316 5/16 F5-UT-F5-F5-316 |
| F6-UT-F6-F6-316 | 3/8 | 30.5 | 16.8 | 17.5 | 15.9 | 7.1 | SS-600-3 | LOK T spojka / trubka nerez SS316 3/8 F6-UT-F6-F6-316 |
| F8-UT-F8-F8-316 | 1/2 | 36.1 | 22.9 | 22.2 | 20.6 | 10.4 | SS-810-3 | LOK T spojka / trubka nerez SS316 1/2 F8-UT-F8-F8-316 |
| F10-UT-F10-F10-316 | 5/8 | 38.9 | 24.4 | 25.4 | 25.4 | 12.7 | SS-1010-3 | LOK T spojka / trubka nerez SS316 5/8 F10-UT-F10-F10-316 |
| F12-UT-F12-F12-316 | 3/4 | 39.9 | 24.4 | 28.6 | 27.0 | 15.7 | SS-1210-3 | LOK T spojka / trubka nerez SS316 3/4 F12-UT-F12-F12-316 |
| F14-UT-F14-F14-316 | 7/8 | 44.7 | 25.9 | 31.8 | 34.9 | 18.3 | SS-1410-3 | LOK T spojka / trubka nerez SS316 7/8 F14-UT-F14-F14-316 |
| F16-UT-F16-F16-316 | 1 | 49.0 | 31.2 | 38.1 | 34.9 | 22.4 | SS-1610-3 | LOK T spojka / trubka nerez SS316 1 F16-UT-F16-F16-316 |
| F18-UT-F18-F18-316 | 1 1/8 | 55.1 | 31.2 | 46.0 | 42.9 | 24.6 | SS-B-1810-3 | LOK T spojka / trubka nerez SS316 1 1/8 F18-UT-F18-F18-316 |
| F20-UT-F20-F20-316 | 1 1/4 | 66.5 | 41.1 | 47.6 | 42.9 | 27.7 | SS-2000-3 | LOK T spojka / trubka nerez SS316 1 1/4 F20-UT-F20-F20-316 |
| F24-UT-F24-F24-316 | 1 1/2 | 78.0 | 50.0 | 57.2 | 50.8 | 34.0 | SS-2400-3 | LOK T spojka / trubka nerez SS316 1 1/2 F24-UT-F24-F24-316 |
| M2-UT-M2-M2-316 | 2 | 22.3 | 12.9 | 12 | 9.5 | 1.7 | SS-2M0-3 | LOK T spojka / trubka nerez SS316 2 M2-UT-M2-M2-316 |
| M3-UT-M3-M3-316 | 3 | 22.3 | 12.9 | 12 | 9.5 | 2.4 | SS-3M0-3 | LOK T spojka / trubka nerez SS316 3 M3-UT-M3-M3-316 |
| M4-UT-M4-M4-316 | 4 | 25.4 | 13.7 | 12 | 12.7 | 2.4 | SS-4M0-3 | LOK T spojka / trubka nerez SS316 4 M4-UT-M4-M4-316 |
| M6-UT-M6-M6-316 | 6 | 27.0 | 15.3 | 14 | 12.7 | 4.8 | SS-6M0-3 | LOK T spojka / trubka nerez SS316 6 M6-UT-M6-M6-316 |
| M8-UT-M8-M8-316 | 8 | 29.9 | 16.2 | 16 | 15.9 | 6.4 | SS-8M0-3 | LOK T spojka / trubka nerez SS316 8 M8-UT-M8-M8-316 |
| M10-UT-M10-M10-316 | 10 | 31.5 | 17.2 | 19 | 17.5 | 7.9 | SS-10M0-3 | LOK T spojka / trubka nerez SS316 10 M10-UT-M10-M10-316 |
| M12-UT-M12-M12-316 | 12 | 36.0 | 22.8 | 22 | 20.6 | 9.5 | SS-12M0-3 | LOK T spojka / trubka nerez SS316 12 M12-UT-M12-M12-316 |
| M14-UT-M14-M14-316 | 14 | 38.8 | 24.4 | 25 | 25.4 | 11.1 | SS-14M0-3 | LOK T spojka / trubka nerez SS316 14 M14-UT-M14-M14-316 |
| M15-UT-M15-M15-316 | 15 | 38.8 | 24.4 | 25 | 25.4 | 11.9 | SS-15M0-3 | LOK T spojka / trubka nerez SS316 15 M15-UT-M15-M15-316 |
| M16-UT-M16-M16-316 | 16 | 38.8 | 24.4 | 25 | 25.4 | 12.7 | SS-16M0-3 | LOK T spojka / trubka nerez SS316 16 M16-UT-M16-M16-316 |
| M18-UT-M18-M18-316 | 18 | 38.8 | 24.4 | 30 | 27.0 | 15.1 | SS-18M0-3 | LOK T spojka / trubka nerez SS316 18 M18-UT-M18-M18-316 |
| M20-UT-M20-M20-316 | 20 | 44.6 | 26.0 | 32 | 34.9 | 15.9 | SS-20M0-3 | LOK T spojka / trubka nerez SS316 20 M20-UT-M20-M20-316 |
| M22-UT-M22-M22-316 | 22 | 44.6 | 26.0 | 32 | 34.9 | 18.3 | SS-22M0-3 | LOK T spojka / trubka nerez SS316 22 M22-UT-M22-M22-316 |
| M25-UT-M25-M25-316 | 25 | 49.1 | 31.3 | 38 | 34.9 | 21.8 | SS-25M0-3 | LOK T spojka / trubka nerez SS316 25 M25-UT-M25-M25-316 |
| M28-UT-M28-M28-316 | 28 | 64.0 | 36.6 | 46 | 42.9 | 21.8 | SS-28M0-3 | LOK T spojka / trubka nerez SS316 28 M28-UT-M28-M28-316 |
| M30-UT-M30-M30-316 | 30 | 69.9 | 39.6 | 50 | 42.9 | 26.2 | SS-30M0-3 | LOK T spojka / trubka nerez SS316 30 M30-UT-M30-M30-316 |
| M32-UT-M32-M32-316 | 32 | 72.3 | 42.0 | 50 | 42.9 | 28.6 | SS-32M0-3 | LOK T spojka / trubka nerez SS316 32 M32-UT-M32-M32-316 |
| M38-UT-M38-M38-316 | 38 | 84.0 | 49.4 | 60 | 50.8 | 33.7 | SS-38M0-3 | LOK T spojka / trubka nerez SS316 38 M38-UT-M38-M38-316 |
