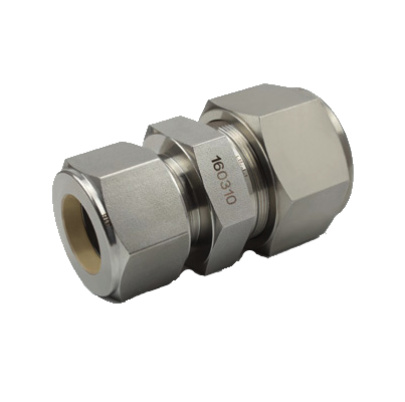

LOK spojka redukovana nerez SS316
LOK spojka redukovana nerez SS316
- Kód produktu: FUFR
LOK spojka redukovana nerez SS316
LOK union reducer stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK spojky redukovane nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

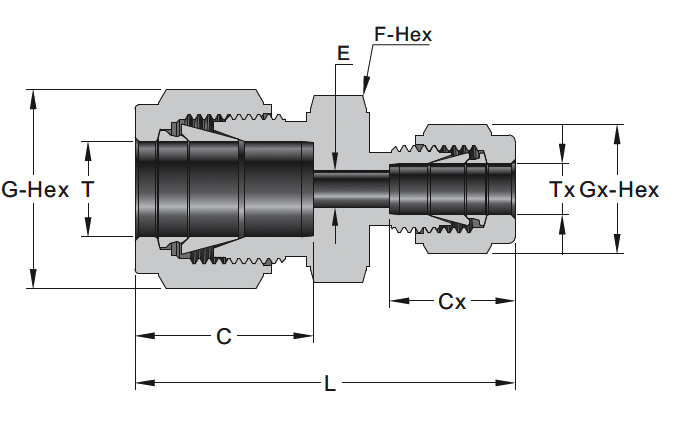

| Kod | Rozmer trubky T (Inch/mm) | Rozmer trubky Tx (Inch/mm) | L mm | C mm | G mm | F mm | E mm | Cx mm | Gx mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension tube Tx (Inch/mm) | Replacement: | Description | |||||||
| M3-U-F2-316 | 3 | 1/8 | 35.2 | 12.9 | 12 | 12 | 2.4 | 12.7 | 11.1 | SS-3M0-6-2 | LOK spojka redukovana nerez SS316 3 / 1/8 M3-U-F2-316 |
| M4-U-F2-316 | 4 | 1/8 | 36.5 | 13.7 | 12 | 12 | 2.4 | 12.7 | 11.1 | SS-4M0-6-2 | LOK spojka redukovana nerez SS316 4 / 1/8 M4-U-F2-316 |
| M4-U-F4-316 | 4 | 1/4 | 39.4 | 13.7 | 12 | 14 | 2.4 | 15.2 | 14.3 | SS-4M0-6-4 | LOK spojka redukovana nerez SS316 4 / 1/4 M4-U-F4-316 |
| M6-U-F2-316 | 6 | 1/8 | 38.5 | 15.3 | 14 | 14 | 2.4 | 12.7 | 11.1 | SS-6M0-6-2 | LOK spojka redukovana nerez SS316 6 / 1/8 M6-U-F2-316 |
| M6-U-F4-316 | 6 | 1/4 | 41.0 | 15.3 | 14 | 14 | 4.8 | 15.2 | 14.3 | SS-6M0-6-4 | LOK spojka redukovana nerez SS316 6 / 1/4 M6-U-F4-316 |
| M6-U-F5-316 | 6 | 5/16 | 42.3 | 15.3 | 14 | 14 | 4.8 | 16.2 | 15.9 | SS-6M0-6-5 | LOK spojka redukovana nerez SS316 6 / 5/16 M6-U-F5-316 |
| M8-U-F4-316 | 8 | 1/4 | 42.3 | 16.2 | 16 | 15 | 4.8 | 15.2 | 14.3 | SS-8M0-6-4 | LOK spojka redukovana nerez SS316 8 / 1/4 M8-U-F4-316 |
| M8-U-F6-316 | 8 | 3/8 | 44.3 | 16.2 | 16 | 16 | 6.4 | 16.8 | 17.5 | SS-8M0-6-6 | LOK spojka redukovana nerez SS316 8 / 3/8 M8-U-F6-316 |
| M10-U-F2-316 | 10 | 1/8 | 41.8 | 17.2 | 19 | 18 | 2.4 | 12.7 | 11.1 | SS-10M0-6-2 | LOK spojka redukovana nerez SS316 10 / 1/8 M10-U-F2-316 |
| M10-U-F4-316 | 10 | 1/4 | 44.5 | 17.2 | 19 | 18 | 4.8 | 15.2 | 14.3 | SS-10M0-6-4 | LOK spojka redukovana nerez SS316 10 / 1/4 M10-U-F4-316 |
| M10-U-F5-316 | 10 | 5/16 | 45.1 | 17.2 | 19 | 18 | 6.4 | 16.2 | 15.9 | SS-10M0-6-5 | LOK spojka redukovana nerez SS316 10 / 5/16 M10-U-F5-316 |
| M10-U-F6-316 | 10 | 3/8 | 45.9 | 17.2 | 19 | 18 | 7.1 | 16.8 | 17.5 | SS-10M0-6-6 | LOK spojka redukovana nerez SS316 10 / 3/8 M10-U-F6-316 |
| M12-U-F5-316 | 12 | 5/16 | 47.8 | 22.8 | 22 | 22 | 6.4 | 16.2 | 15.9 | SS-12M0-6-5 | LOK spojka redukovana nerez SS316 12 / 5/16 M12-U-F5-316 |
| M12-U-F6-316 | 12 | 3/8 | 48.4 | 22.8 | 22 | 22 | 7.1 | 16.8 | 17.5 | SS-12M0-6-6 | LOK spojka redukovana nerez SS316 12 / 3/8 M12-U-F6-316 |
| M12-U-F8-316 | 12 | 1/2 | 51.2 | 22.8 | 22 | 22 | 9.5 | 22.9 | 22.2 | SS-12M0-6-8 | LOK spojka redukovana nerez SS316 12 / 1/2 M12-U-F8-316 |
| M15-U-F8-316 | 15 | 1/2 | 52.0 | 24.4 | 25 | 24 | 10.4 | 22.9 | 22.2 | SS-15M0-6-8 | LOK spojka redukovana nerez SS316 15 / 1/2 M15-U-F8-316 |
| M16-U-F10-316 | 16 | 5/8 | 52.0 | 24.4 | 25 | 24 | 12.7 | 24.4 | 25.4 | SS-16M0-6-10 | LOK spojka redukovana nerez SS316 16 / 5/8 M16-U-F10-316 |
| M18-U-F12-316 | 18 | 3/4 | 53.5 | 24.4 | 30 | 27 | 15.1 | 24.4 | 28.6 | SS-18M0-6-12 | LOK spojka redukovana nerez SS316 18 / 3/4 M18-U-F12-316 |
| M20-U-F8-316 | 20 | 1/2 | 55.0 | 26.0 | 32 | 30 | 10.4 | 22.9 | 22.2 | SS-20M0-6-8 | LOK spojka redukovana nerez SS316 20 / 1/2 M20-U-F8-316 |
| M20-U-F16-316 | 20 | 1 | 62.8 | 26.0 | 32 | 35 | 15.9 | 31.2 | 38.1 | SS-20M0-6-16 | LOK spojka redukovana nerez SS316 20 / 1 M20-U-F16-316 |
| M25-U-F16-316 | 25 | 1 | 65.0 | 31.3 | 38 | 35 | 21.8 | 31.2 | 38.1 | SS-25M0-6-16 | LOK spojka redukovana nerez SS316 25 / 1 M25-U-F16-316 |
| F2-U-F1-316 | 1/8 | 1/16 | 31.0 | 12.7 | 11.1 | 11.1 | 1.3 | 8.6 | 7.9 | SS-200-6-1 | LOK spojka redukovana nerez SS316 1/8 / 1/16 F2-U-F1-316 |
| F3-U-F1-316 | 3/16 | 1/16 | 32.3 | 13.7 | 12.7 | 11.1 | 1.3 | 8.6 | 7.9 | SS-300-6-1 | LOK spojka redukovana nerez SS316 3/16 / 1/16 F3-U-F1-316 |
| F3-U-F2-316 | 3/16 | 1/8 | 36.6 | 13.7 | 12.7 | 11.1 | 2.3 | 12.7 | 11.1 | SS-300-6-2 | LOK spojka redukovana nerez SS316 3/16 / 1/8 F3-U-F2-316 |
| F4-U-F1-316 | 1/4 | 1/16 | 34.3 | 15.2 | 14.3 | 12.7 | 1.3 | 8.6 | 7.9 | SS-400-6-1 | LOK spojka redukovana nerez SS316 1/4 / 1/16 F4-U-F1-316 |
| F4-U-F2-316 | 1/4 | 1/8 | 38.6 | 15.2 | 14.3 | 12.7 | 2.3 | 12.7 | 11.1 | SS-400-6-2 | LOK spojka redukovana nerez SS316 1/4 / 1/8 F4-U-F2-316 |
| F4-U-F3-316 | 1/4 | 3/16 | 39.4 | 15.2 | 14.3 | 12.7 | 3.0 | 13.7 | 12.7 | SS-400-6-3 | LOK spojka redukovana nerez SS316 1/4 / 3/16 F4-U-F3-316 |
| F5-U-F2-316 | 5/16 | 1/8 | 39.6 | 16.2 | 15.9 | 14.3 | 2.3 | 12.7 | 11.1 | SS-500-6-2 | LOK spojka redukovana nerez SS316 5/16 / 1/8 F5-U-F2-316 |
| F5-U-F4-316 | 5/16 | 1/4 | 42.2 | 16.2 | 15.9 | 14.3 | 4.8 | 15.2 | 14.3 | SS-500-6-4 | LOK spojka redukovana nerez SS316 5/16 / 1/4 F5-U-F4-316 |
| F6-U-F1-316 | 3/8 | 1/16 | 36.6 | 16.8 | 17.5 | 15.9 | 1.3 | 8.6 | 7.9 | SS-600-6-1 | LOK spojka redukovana nerez SS316 3/8 / 1/16 F6-U-F1-316 |
| F6-U-F2-316 | 3/8 | 1/8 | 40.9 | 16.8 | 17.5 | 15.9 | 2.3 | 12.7 | 11.1 | SS-600-6-2 | LOK spojka redukovana nerez SS316 3/8 / 1/8 F6-U-F2-316 |
| F6-U-F4-316 | 3/8 | 1/4 | 43.2 | 16.8 | 17.5 | 15.9 | 4.8 | 15.2 | 14.3 | SS-600-6-4 | LOK spojka redukovana nerez SS316 3/8 / 1/4 F6-U-F4-316 |
| F6-U-F5-316 | 3/8 | 5/16 | 44.2 | 16.8 | 17.5 | 15.9 | 6.4 | 16.2 | 15.9 | SS-600-6-5 | LOK spojka redukovana nerez SS316 3/8 / 5/16 F6-U-F5-316 |
| F8-U-F2-316 | 1/2 | 1/8 | 45.2 | 22.8 | 22.2 | 20.6 | 2.3 | 12.7 | 11.1 | SS-810-6-2 | LOK spojka redukovana nerez SS316 1/2 / 1/8 F8-U-F2-316 |
| F8-U-F4-316 | 1/2 | 1/4 | 47.0 | 22.8 | 22.2 | 20.6 | 4.8 | 15.2 | 14.3 | SS-810-6-4 | LOK spojka redukovana nerez SS316 1/2 / 1/4 F8-U-F4-316 |
| F8-U-F6-316 | 1/2 | 3/8 | 48.5 | 22.8 | 22.2 | 20.6 | 7.1 | 16.8 | 17.5 | SS-810-6-6 | LOK spojka redukovana nerez SS316 1/2 / 3/8 F8-U-F6-316 |
| F10-U-F6-316 | 5/8 | 3/8 | 49.3 | 24.4 | 25.4 | 23.9 | 7.1 | 16.8 | 17.5 | SS-1010-6-6 | LOK spojka redukovana nerez SS316 5/8 / 3/8 F10-U-F6-316 |
| F10-U-F8-316 | 5/8 | 1/2 | 52.1 | 24.4 | 25.4 | 23.9 | 10.4 | 22.8 | 22.2 | SS-1010-6-8 | LOK spojka redukovana nerez SS316 5/8 / 1/2 F10-U-F8-316 |
| F12-U-F4-316 | 3/4 | 1/4 | 49.3 | 24.4 | 28.6 | 27.0 | 4.8 | 15.2 | 14.3 | SS-1210-6-4 | LOK spojka redukovana nerez SS316 3/4 / 1/4 F12-U-F4-316 |
| F12-U-F6-316 | 3/4 | 3/8 | 50.8 | 24.4 | 28.6 | 27.0 | 7.1 | 16.8 | 17.5 | SS-1210-6-6 | LOK spojka redukovana nerez SS316 3/4 / 3/8 F12-U-F6-316 |
| F12-U-F8-316 | 3/4 | 1/2 | 53.6 | 24.4 | 28.6 | 27.0 | 10.4 | 22.8 | 22.2 | SS-1210-6-8 | LOK spojka redukovana nerez SS316 3/4 / 1/2 F12-U-F8-316 |
| F12-U-F10-316 | 3/4 | 5/8 | 53.6 | 24.4 | 28.6 | 27.0 | 12.7 | 24.4 | 25.4 | SS-1210-6-10 | LOK spojka redukovana nerez SS316 3/4 / 5/8 F12-U-F10-316 |
| F16-U-F8-316 | 1 | 1/2 | 60.5 | 31.2 | 38.1 | 34.9 | 10.4 | 22.8 | 22.2 | SS-1610-6-8 | LOK spojka redukovana nerez SS316 1 / 1/2 F16-U-F8-316 |
| F16-U-F12-316 | 1 | 3/4 | 60.5 | 31.2 | 38.1 | 34.9 | 15.7 | 24.4 | 28.6 | SS-1610-6-12 | LOK spojka redukovana nerez SS316 1 / 3/4 F16-U-F12-316 |
| M3-U-M2-316 | 3 | 2 | 35.3 | 12.9 | 12 | 12 | 1.7 | 12.9 | 12 | SS-3M0-6-2M | LOK spojka redukovana nerez SS316 3 / 2 M3-U-M2-316 |
| M6-U-M2-316 | 6 | 2 | 38.6 | 15.3 | 14 | 14 | 1.7 | 12.9 | 12 | SS-6M0-6-2M | LOK spojka redukovana nerez SS316 6 / 2 M6-U-M2-316 |
| M6-U-M3-316 | 6 | 3 | 38.6 | 15.3 | 14 | 14 | 2.4 | 12.9 | 12 | SS-6M0-6-3M | LOK spojka redukovana nerez SS316 6 / 3 M6-U-M3-316 |
| M6-U-M4-316 | 6 | 4 | 39.4 | 15.3 | 14 | 14 | 2.4 | 13.7 | 12 | SS-6M0-6-4M | LOK spojka redukovana nerez SS316 6 / 4 M6-U-M4-316 |
| M8-U-M6-316 | 8 | 6 | 42.3 | 16.3 | 16 | 15 | 4.8 | 15.3 | 14 | SS-8M0-6-6M | LOK spojka redukovana nerez SS316 8 / 6 M8-U-M6-316 |
| M10-U-M6-316 | 10 | 6 | 44.5 | 17.2 | 19 | 18 | 4.8 | 15.3 | 14 | SS-10M0-6-6M | LOK spojka redukovana nerez SS316 10 / 6 M10-U-M6-316 |
| M10-U-M8-316 | 10 | 8 | 45.1 | 17.2 | 19 | 18 | 6.4 | 16.3 | 16 | SS-10M0-6-8M | LOK spojka redukovana nerez SS316 10 / 8 M10-U-M8-316 |
| M12-U-M6-316 | 12 | 6 | 47.0 | 22.8 | 22 | 22 | 4.8 | 15.3 | 14 | SS-12M0-6-6M | LOK spojka redukovana nerez SS316 12 / 6 M12-U-M6-316 |
| M12-U-M8-316 | 12 | 8 | 47.8 | 22.8 | 22 | 22 | 6.4 | 16.3 | 16 | SS-12M0-6-8M | LOK spojka redukovana nerez SS316 12 / 8 M12-U-M8-316 |
| M12-U-M10-316 | 12 | 10 | 48.7 | 22.8 | 22 | 22 | 7.9 | 17.2 | 19 | SS-12M0-6-10M | LOK spojka redukovana nerez SS316 12 / 10 M12-U-M10-316 |
| M16-U-M10-316 | 16 | 10 | 49.5 | 24.4 | 25 | 24 | 7.9 | 17.2 | 19 | SS-16M0-6-10M | LOK spojka redukovana nerez SS316 16 / 10 M16-U-M10-316 |
| M16-U-M12-316 | 16 | 12 | 52.0 | 24.4 | 25 | 24 | 9.5 | 22.8 | 22 | SS-16M0-6-12M | LOK spojka redukovana nerez SS316 16 / 12 M16-U-M12-316 |
| M18-U-M12-316 | 18 | 12 | 53.5 | 24.4 | 30 | 27 | 9.5 | 22.8 | 22 | SS-18M0-6-12M | LOK spojka redukovana nerez SS316 18 / 12 M18-U-M12-316 |
| M25-U-M18-316 | 25 | 18 | 61.0 | 31.3 | 38 | 35 | 15.1 | 24.4 | 30 | SS-25M0-6-18M | LOK spojka redukovana nerez SS316 25 / 18 M25-U-M18-316 |
| M25-U-M20-316 | 25 | 20 | 62.3 | 31.3 | 38 | 35 | 15.9 | 26.0 | 32 | SS-25M0-6-20M | LOK spojka redukovana nerez SS316 25 / 20 M25-U-M20-316 |
| M30-U-M18-316 | 30 | 18 | 75.4 | 39.6 | 50 | 46 | 15.1 | 24.4 | 30 | SS-30M0-6-18M | LOK spojka redukovana nerez SS316 30 / 18 M30-U-M18-316 |
| M30-U-M20-316 | 30 | 20 | 75.4 | 39.6 | 50 | 46 | 15.9 | 26.0 | 32 | SS-30M0-6-20M | LOK spojka redukovana nerez SS316 30 / 20 M30-U-M20-316 |
| M30-U-M25-316 | 30 | 25 | 80.1 | 39.6 | 50 | 46 | 21.8 | 31.3 | 38 | SS-30M0-6-25M | LOK spojka redukovana nerez SS316 30 / 25 M30-U-M25-316 |
| M32-U-M18-316 | 32 | 18 | 77.8 | 42.0 | 50 | 46 | 15.1 | 24.4 | 30 | SS-32M0-6-18M | LOK spojka redukovana nerez SS316 32 / 18 M32-U-M18-316 |
| M32-U-M20-316 | 32 | 20 | 77.8 | 42.0 | 50 | 46 | 15.9 | 26.0 | 32 | SS-32M0-6-20M | LOK spojka redukovana nerez SS316 32 / 20 M32-U-M20-316 |
| M32-U-M25-316 | 32 | 25 | 82.3 | 42.0 | 50 | 46 | 21.8 | 31.3 | 38 | SS-32M0-6-25M | LOK spojka redukovana nerez SS316 32 / 25 M32-U-M25-316 |
| M38-U-M20-316 | 38 | 20 | 87.5 | 49.4 | 60 | 55 | 15.9 | 26.0 | 32 | SS-38M0-6-20M | LOK spojka redukovana nerez SS316 38 / 20 M38-U-M20-316 |
| M38-U-M25-316 | 38 | 25 | 92.0 | 49.4 | 60 | 55 | 21.8 | 31.3 | 38 | SS-38M0-6-25M | LOK spojka redukovana nerez SS316 38 / 25 M38-U-M25-316 |
| M38-U-M30-316 | 38 | 30 | 104.6 | 49.4 | 60 | 55 | 26.2 | 39.6 | 50 | SS-38M0-6-30M | LOK spojka redukovana nerez SS316 38 / 30 M38-U-M30-316 |
