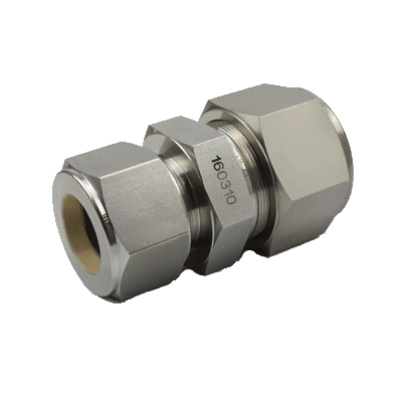

LOK spojka nerez SS316
LOK union stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK spojky nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

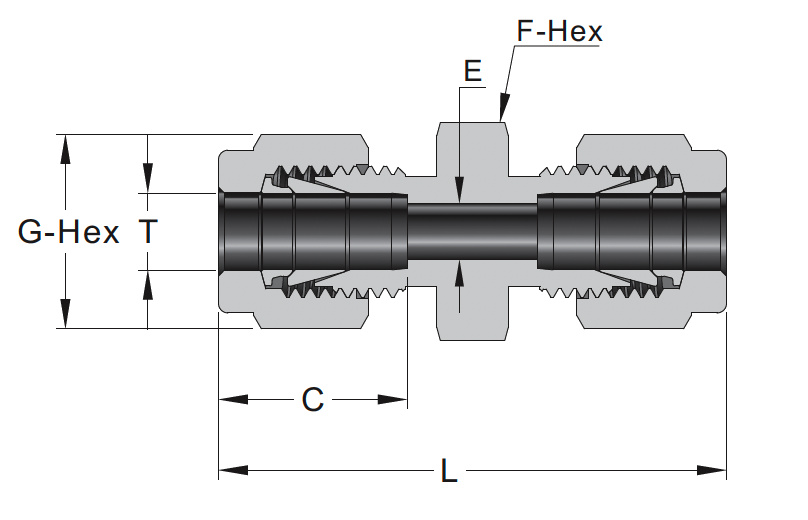

| Kod | Rozmer trubky T (Inch/mm) | L mm | C mm | G mm | F mm | E mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Replacement: | Description | |||||
| F1-U-F1-316 | 1/16 | 25.1 | 8.6 | 7.9 | 11.1 | 1.3 | SS-100-6 | LOK spojka nerez SS316 1/16 F1-U-F1-316 |
| F2-U-F2-316 | 1/8 | 35.6 | 12.7 | 11.1 | 11.1 | 2.3 | SS-200-6 | LOK spojka nerez SS316 1/8 F2-U-F2-316 |
| F3-U-F3-316 | 3/16 | 37.3 | 13.7 | 12.7 | 12.7 | 3.0 | SS-300-6 | LOK spojka nerez SS316 3/16 F3-U-F3-316 |
| F4-U-F4-316 | 1/4 | 40.9 | 15.2 | 14.3 | 12.7 | 4.8 | SS-400-6 | LOK spojka nerez SS316 1/4 F4-U-F4-316 |
| F5-U-F5-316 | 5/16 | 42.9 | 16.2 | 15.9 | 14.3 | 6.4 | SS-500-6 | LOK spojka nerez SS316 5/16 F5-U-F5-316 |
| F6-U-F6-316 | 3/8 | 45.0 | 16.8 | 17.5 | 15.9 | 7.1 | SS-600-6 | LOK spojka nerez SS316 3/8 F6-U-F6-316 |
| F8-U-F8-316 | 1/2 | 51.3 | 22.9 | 22.2 | 20.6 | 10.4 | SS-810-6 | LOK spojka nerez SS316 1/2 F8-U-F8-316 |
| F10-U-F10-316 | 5/8 | 52.1 | 24.4 | 25.4 | 23.9 | 12.7 | SS-1010-6 | LOK spojka nerez SS316 5/8 F10-U-F10-316 |
| F12-U-F12-316 | 3/4 | 53.6 | 24.4 | 28.6 | 27.0 | 15.7 | SS-1210-6 | LOK spojka nerez SS316 3/4 F12-U-F12-316 |
| F14-U-F14-316 | 7/8 | 55.1 | 25.9 | 31.8 | 34.9 | 18.3 | SS-1410-6 | LOK spojka nerez SS316 7/8 F14-U-F14-316 |
| F16-U-F16-316 | 1 | 64.8 | 31.2 | 38.1 | 34.9 | 22.4 | SS-1610-6 | LOK spojka nerez SS316 1 F16-U-F16-316 |
| F18-U-F18-316 | 1 1/8 | 64.8 | 31.2 | 44.5 | 41.3 | 24.6 | SS-B-1810-6 | LOK spojka nerez SS316 1 1/8 F18-U-F18-316 |
| F20-U-F20-316 | 1 1/4 | 92.2 | 41.1 | 47.6 | 44.5 | 27.7 | SS-2000-6 | LOK spojka nerez SS316 1 1/4 F20-U-F20-316 |
| F24-U-F24-316 | 1 1/2 | 108 | 50.0 | 57.2 | 54.0 | 34.0 | SS-2400-6 | LOK spojka nerez SS316 1 1/2 F24-U-F24-316 |
| M2-U-M2-316 | 2 | 35.6 | 12.9 | 12 | 12 | 1.7 | SS-2M0-6 | LOK spojka nerez SS316 2 M2-U-M2-316 |
| M3-U-M3-316 | 3 | 35.3 | 12.9 | 12 | 12 | 2.4 | SS-3M0-6 | LOK spojka nerez SS316 3 M3-U-M3-316 |
| M4-U-M4-316 | 4 | 37.3 | 13.7 | 12 | 12 | 2.4 | SS-4M0-6 | LOK spojka nerez SS316 4 M4-U-M4-316 |
| M6-U-M6-316 | 6 | 41.0 | 15.3 | 14 | 14 | 4.8 | SS-6M0-6 | LOK spojka nerez SS316 6 M6-U-M6-316 |
| M8-U-M8-316 | 8 | 43.2 | 16.2 | 16 | 15 | 6.4 | SS-8M0-6 | LOK spojka nerez SS316 8 M8-U-M8-316 |
| M10-U-M10-316 | 10 | 46.2 | 17.2 | 19 | 18 | 7.9 | SS-10M0-6 | LOK spojka nerez SS316 10 M10-U-M10-316 |
| M12-U-M12-316 | 12 | 51.2 | 22.8 | 22 | 22 | 9.5 | SS-12M0-6 | LOK spojka nerez SS316 12 M12-U-M12-316 |
| M14-U-M14-316 | 14 | 52.0 | 24.4 | 25 | 24 | 11.1 | SS-14M0-6 | LOK spojka nerez SS316 14 M14-U-M14-316 |
| M15-U-M15-316 | 15 | 52.0 | 24.4 | 25 | 24 | 11.9 | SS-15M0-6 | LOK spojka nerez SS316 15 M15-U-M15-316 |
| M16-U-M16-316 | 16 | 52.0 | 24.4 | 25 | 24 | 12.7 | SS-16M0-6 | LOK spojka nerez SS316 16 M16-U-M16-316 |
| M18-U-M18-316 | 18 | 53.5 | 24.4 | 30 | 27 | 15.1 | SS-18M0-6 | LOK spojka nerez SS316 18 M18-U-M18-316 |
| M20-U-M20-316 | 20 | 55.0 | 26.0 | 32 | 30 | 15.9 | SS-20M0-6 | LOK spojka nerez SS316 20 M20-U-M20-316 |
| M22-U-M22-316 | 22 | 55.0 | 26.0 | 32 | 30 | 18.3 | SS-22M0-6 | LOK spojka nerez SS316 22 M22-U-M22-316 |
| M25-U-M25-316 | 25 | 65.0 | 31.3 | 38 | 35 | 21.8 | SS-25M0-6 | LOK spojka nerez SS316 25 M25-U-M25-316 |
| M28-U-M28-316 | 28 | 85.0 | 36.6 | 46 | 41 | 21.8 | SS-28M0-6 | LOK spojka nerez SS316 28 M28-U-M28-316 |
| M30-U-M30-316 | 30 | 92.7 | 39.6 | 50 | 46 | 26.2 | SS-30M0-6 | LOK spojka nerez SS316 30 M30-U-M30-316 |
| M32-U-M32-316 | 32 | 97.3 | 42.0 | 50 | 46 | 28.6 | SS-32M0-6 | LOK spojka nerez SS316 32 M32-U-M32-316 |
| M38-U-M38-316 | 38 | 113.6 | 49.4 | 60 | 55 | 33.7 | SS-38M0-6 | LOK spojka nerez SS316 38 M38-U-M38-316 |
