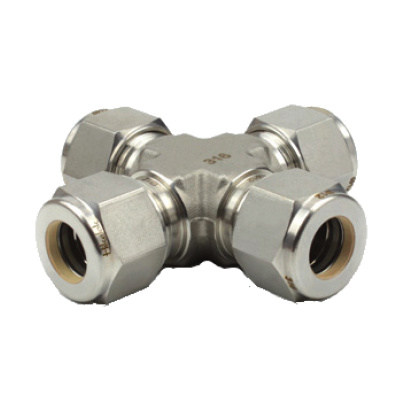

LOK Kriz X spojka / trubka nerez SS316
LOK Kriz X spojka / trubka nerez SS316
- Kód produktu: FUCFFF

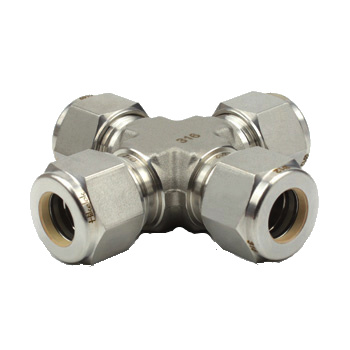

LOK Kriz X spojka / trubka nerez SS316
LOK X union / tube stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK Kriz X spojka / trubka nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

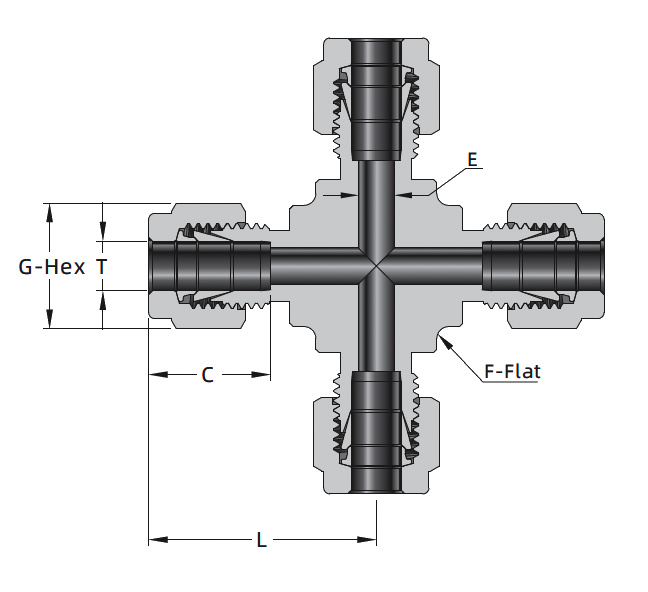

| Kod | Rozmer trubky T (Inch/mm) | L mm | C mm | G mm | F mm | E mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Replacement: | Description | |||||
| F2-UC-F2-F2-F2-316 | 1/8 | 22.4 | 12.7 | 11.1 | 9.5 | 2.3 | SS-200-4 | LOK Kriz X spojka / trubka nerez SS316 1/8 F2-UC-F2-F2-F2-316 |
| F3-UC-F3-F3-F3-316 | 3/16 | 24.4 | 13.7 | 12.7 | 11.1 | 3.0 | LOK Kriz X spojka / trubka nerez SS316 3/16 F3-UC-F3-F3-F3-316 | |
| F4-UC-F4-F4-F4-316 | 1/4 | 26.9 | 15.2 | 14.3 | 12.7 | 4.8 | SS-400-4 | LOK Kriz X spojka / trubka nerez SS316 1/4 F4-UC-F4-F4-F4-316 |
| F5-UC-F5-F5-F5-316 | 5/16 | 29.7 | 16.2 | 15.9 | 15.9 | 6.4 | SS-500-4 | LOK Kriz X spojka / trubka nerez SS316 5/16 F5-UC-F5-F5-F5-316 |
| F6-UC-F6-F6-F6-316 | 3/8 | 30.5 | 16.8 | 17.5 | 15.9 | 7.1 | SS-600-4 | LOK Kriz X spojka / trubka nerez SS316 3/8 F6-UC-F6-F6-F6-316 |
| F8-UC-F8-F8-F8-316 | 1/2 | 36.1 | 22.9 | 22.2 | 20.6 | 10.4 | SS-810-4 | LOK Kriz X spojka / trubka nerez SS316 1/2 F8-UC-F8-F8-F8-316 |
| F10-UC-F10-F10-F10-316 | 5/8 | 36.3 | 24.4 | 25.4 | 27.0 | 12.7 | LOK Kriz X spojka / trubka nerez SS316 5/8 F10-UC-F10-F10-F10-316 | |
| F12-UC-F12-F12-F12-316 | 3/4 | 39.9 | 24.4 | 28.6 | 27.0 | 15.7 | SS-1210-4 | LOK Kriz X spojka / trubka nerez SS316 3/4 F12-UC-F12-F12-F12-316 |
| F14-UC-F14-F14-F14-316 | 7/8 | 44.7 | 25.9 | 31.8 | 34.9 | 18.3 | LOK Kriz X spojka / trubka nerez SS316 7/8 F14-UC-F14-F14-F14-316 | |
| F16-UC-F16-F16-F16-316 | 1 | 49.0 | 31.2 | 38.1 | 34.9 | 22.4 | SS-1610-4 | LOK Kriz X spojka / trubka nerez SS316 1 F16-UC-F16-F16-F16-316 |
| M3-UC-M3-M3-M3-316 | 3 | 22.3 | 12.9 | 12 | 9.5 | 2.4 | SS-3M0-4 | LOK Kriz X spojka / trubka nerez SS316 3 M3-UC-M3-M3-M3-316 |
| M4-UC-M4-M4-M4-316 | 4 | 25.4 | 13.7 | 12 | 12.7 | 2.4 | LOK Kriz X spojka / trubka nerez SS316 4 M4-UC-M4-M4-M4-316 | |
| M6-UC-M6-M6-M6-316 | 6 | 27.0 | 15.3 | 14 | 12.7 | 4.8 | SS-6M0-4 | LOK Kriz X spojka / trubka nerez SS316 6 M6-UC-M6-M6-M6-316 |
| M8-UC-M8-M8-M8-316 | 8 | 29.9 | 16.2 | 16 | 15.9 | 6.4 | SS-8M0-4 | LOK Kriz X spojka / trubka nerez SS316 8 M8-UC-M8-M8-M8-316 |
| M10-UC-M10-M10-M10-316 | 10 | 33.5 | 17.2 | 19 | 20.6 | 7.9 | SS-10M0-4 | LOK Kriz X spojka / trubka nerez SS316 10 M10-UC-M10-M10-M10-316 |
| M12-UC-M12-M12-M12-316 | 12 | 36.0 | 22.8 | 22 | 20.6 | 9.5 | SS-12M0-4 | LOK Kriz X spojka / trubka nerez SS316 12 M12-UC-M12-M12-M12-316 |
| M16-UC-M16-M16-M16-316 | 16 | 37.0 | 24.4 | 25 | 23.8 | 12.7 | SS-16M0-4 | LOK Kriz X spojka / trubka nerez SS316 16 M16-UC-M16-M16-M16-316 |
| M18-UC-M18-M18-M18-316 | 18 | 38.3 | 24.4 | 30 | 27.0 | 15.1 | SS-18M0-4 | LOK Kriz X spojka / trubka nerez SS316 18 M18-UC-M18-M18-M18-316 |
| M20-UC-M20-M20-M20-316 | 20 | 44.6 | 26.0 | 32 | 34.9 | 15.9 | SS-20M0-4 | LOK Kriz X spojka / trubka nerez SS316 20 M20-UC-M20-M20-M20-316 |
| M22-UC-M22-M22-M22-316 | 22 | 44.7 | 26.0 | 32 | 34.9 | 18.3 | SS-22M0-4 | LOK Kriz X spojka / trubka nerez SS316 22 M22-UC-M22-M22-M22-316 |
| M25-UC-M25-M25-M25-316 | 25 | 49.2 | 31.3 | 38 | 34.9 | 21.8 | SS-25M0-4 | LOK Kriz X spojka / trubka nerez SS316 25 M25-UC-M25-M25-M25-316 |
