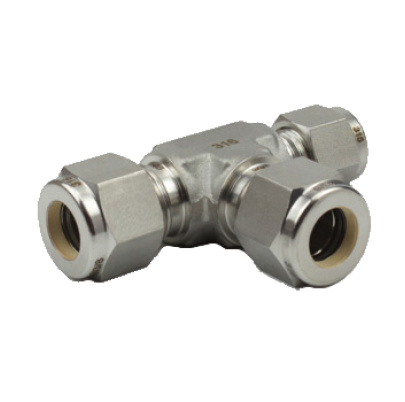

LOK T spojka redukovana / trubka nerez SS316
LOK T spojka redukovana / trubka nerez SS316
- Kód produktu: FUTFFR
LOK T spojka redukovana / trubka nerez SS316
LOK T union reducer / tube stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK T spojka redukovana / trubka nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

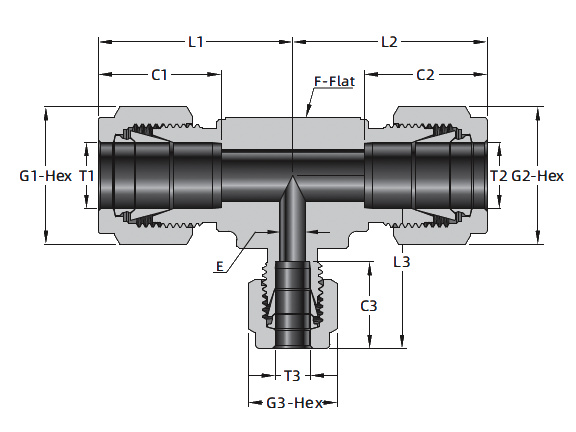

| Kod | Rozmer trubky T1 (Inch/mm) | Rozmer trubky T2 (Inch/mm) | Rozmer trubky T3 (Inch/mm) | L1 mm | L2 mm | L3 mm | C1 mm | C2 mm | C3 mm | G1 mm | G2 mm | G3 mm | F mm | E mm | Nahrada za: | Nazov |
| Code | Dimension tube T1 (Inch/mm) | Dimension tube T2 (Inch/mm) | Dimension tube T3 (Inch/mm) | Replacement: | Description | |||||||||||
| F4-UT-F4-F2-316 | 1/4 | 1/4 | 1/8 | 26.7 | 26.7 | 24.4 | 15.2 | 15.2 | 12.7 | 14.3 | 14.3 | 11.1 | 12.7 | 2.3 | LOK T spojka redukovana / trubka nerez SS316 1/4 / 1/4 / 1/8 F4-UT-F4-F2-316 | |
| F6-UT-F4-F4-316 | 3/8 | 1/4 | 1/4 | 30.5 | 29.0 | 29.0 | 16.8 | 15.2 | 15.2 | 17.5 | 14.3 | 14.3 | 15.9 | 4.8 | LOK T spojka redukovana / trubka nerez SS316 3/8 / 1/4 / 1/4 F6-UT-F4-F4-316 | |
| F6-UT-F4-F6-316 | 3/8 | 1/4 | 3/8 | 30.5 | 29.0 | 30.5 | 16.8 | 15.2 | 16.8 | 17.5 | 14.3 | 17.5 | 15.9 | 4.8 | SS-600-3-4-6 | LOK T spojka redukovana / trubka nerez SS316 3/8 / 1/4 / 3/8 F6-UT-F4-F6-316 |
| F6-UT-F6-F4-316 | 3/8 | 3/8 | 1/4 | 30.5 | 30.5 | 29.0 | 16.8 | 16.8 | 15.2 | 17.5 | 17.5 | 14.3 | 15.9 | 4.8 | SS-600-3-6-4 | LOK T spojka redukovana / trubka nerez SS316 3/8 / 3/8 / 1/4 F6-UT-F6-F4-316 |
| F8-UT-F4-F4-316 | 1/2 | 1/4 | 1/4 | 36.1 | 31.8 | 31.8 | 22.9 | 15.2 | 15.2 | 22.2 | 14.3 | 14.3 | 20.6 | 4.8 | LOK T spojka redukovana / trubka nerez SS316 1/2 / 1/4 / 1/4 F8-UT-F4-F4-316 | |
| F8-UT-F4-F8-316 | 1/2 | 1/4 | 1/2 | 36.1 | 31.8 | 36.1 | 22.9 | 15.2 | 22.9 | 22.2 | 14.3 | 22.2 | 20.6 | 4.8 | LOK T spojka redukovana / trubka nerez SS316 1/2 / 1/4 / 1/2 F8-UT-F4-F8-316 | |
| F8-UT-F6-F6-316 | 1/2 | 3/8 | 3/8 | 36.1 | 33.3 | 33.3 | 22.9 | 16.8 | 16.8 | 22.2 | 17.5 | 17.5 | 20.6 | 7.1 | SS-810-3-6-6 | LOK T spojka redukovana / trubka nerez SS316 1/2 / 3/8 / 3/8 F8-UT-F6-F6-316 |
| F8-UT-F6-F8-316 | 1/2 | 3/8 | 1/2 | 36.1 | 33.3 | 36.1 | 22.9 | 16.8 | 22.9 | 22.2 | 17.5 | 22.2 | 20.6 | 7.1 | LOK T spojka redukovana / trubka nerez SS316 1/2 / 3/8 / 1/2 F8-UT-F6-F8-316 | |
| F8-UT-F8-F4-316 | 1/2 | 1/2 | 1/4 | 36.1 | 36.1 | 31.8 | 22.9 | 22.9 | 15.2 | 22.2 | 22.2 | 14.3 | 20.6 | 4.8 | SS-810-3-8-4 | LOK T spojka redukovana / trubka nerez SS316 1/2 / 1/2 / 1/4 F8-UT-F8-F4-316 |
| F8-UT-F8-F6-316 | 1/2 | 1/2 | 3/8 | 36.1 | 36.1 | 33.3 | 22.9 | 22.9 | 16.8 | 22.2 | 22.2 | 17.5 | 20.6 | 7.1 | SS-810-3-8-6 | LOK T spojka redukovana / trubka nerez SS316 1/2 / 1/2 / 3/8 F8-UT-F8-F6-316 |
| F10-UT-F6-F6-316 | 5/8 | 3/8 | 3/8 | 38.9 | 36.1 | 36.1 | 24.4 | 16.8 | 16.8 | 25.4 | 17.5 | 17.5 | 25.4 | 7.1 | SS-1010-3-6-6 | LOK T spojka redukovana / trubka nerez SS316 5/8 / 3/8 / 3/8 F10-UT-F6-F6-316 |
| F10-UT-F6-F8-316 | 5/8 | 3/8 | 1/2 | 38.9 | 36.1 | 38.9 | 24.4 | 16.8 | 22.9 | 25.4 | 17.5 | 22.2 | 25.4 | 7.1 | LOK T spojka redukovana / trubka nerez SS316 5/8 / 3/8 / 1/2 F10-UT-F6-F8-316 | |
| F10-UT-F8-F6-316 | 5/8 | 1/2 | 3/8 | 38.9 | 38.9 | 36.1 | 24.4 | 22.9 | 16.8 | 25.4 | 22.2 | 17.5 | 25.4 | 7.1 | SS-1010-3-8-6 | LOK T spojka redukovana / trubka nerez SS316 5/8 / 1/2 / 3/8 F10-UT-F8-F6-316 |
| F10-UT-F8-F8-316 | 5/8 | 1/2 | 1/2 | 38.9 | 38.9 | 38.9 | 24.4 | 22.9 | 22.9 | 25.4 | 22.2 | 22.2 | 25.4 | 10.4 | LOK T spojka redukovana / trubka nerez SS316 5/8 / 1/2 / 1/2 F10-UT-F8-F8-316 | |
| F10-UT-F10-F6-316 | 5/8 | 5/8 | 3/8 | 38.9 | 38.9 | 36.1 | 24.4 | 24.4 | 16.8 | 25.4 | 25.4 | 17.5 | 25.4 | 7.1 | SS-1010-3-10-6 | LOK T spojka redukovana / trubka nerez SS316 5/8 / 5/8 / 3/8 F10-UT-F10-F6-316 |
| F10-UT-F10-F8-316 | 5/8 | 5/8 | 1/2 | 38.9 | 38.9 | 38.9 | 24.4 | 24.4 | 22.9 | 25.4 | 25.4 | 22.2 | 25.4 | 10.4 | LOK T spojka redukovana / trubka nerez SS316 5/8 / 5/8 / 1/2 F10-UT-F10-F8-316 | |
| F12-UT-F6-F6-316 | 3/4 | 3/8 | 3/8 | 39.6 | 36.9 | 36.9 | 24.4 | 16.8 | 16.8 | 28.6 | 17.5 | 17.5 | 27.0 | 7.1 | SS-1210-3-6-6 | LOK T spojka redukovana / trubka nerez SS316 3/4 / 3/8 / 3/8 F12-UT-F6-F6-316 |
| F12-UT-F8-F6-316 | 3/4 | 1/2 | 3/8 | 39.6 | 39.6 | 36.9 | 24.4 | 22.9 | 16.8 | 28.6 | 22.2 | 17.5 | 27.0 | 7.1 | SS-1210-3-8-6 | LOK T spojka redukovana / trubka nerez SS316 3/4 / 1/2 / 3/8 F12-UT-F8-F6-316 |
| F12-UT-F8-F8-316 | 3/4 | 1/2 | 1/2 | 39.6 | 39.6 | 39.6 | 24.4 | 22.9 | 22.9 | 28.6 | 22.2 | 22.2 | 27.0 | 10.4 | LOK T spojka redukovana / trubka nerez SS316 3/4 / 1/2 / 1/2 F12-UT-F8-F8-316 | |
| F12-UT-F10-F6-316 | 3/4 | 5/8 | 3/8 | 39.6 | 39.6 | 36.9 | 24.4 | 24.4 | 16.8 | 28.6 | 25.4 | 17.5 | 27.0 | 7.1 | LOK T spojka redukovana / trubka nerez SS316 3/4 / 5/8 / 3/8 F12-UT-F10-F6-316 | |
| F12-UT-F10-F8-316 | 3/4 | 5/8 | 1/2 | 39.6 | 39.6 | 39.6 | 24.4 | 24.4 | 22.9 | 28.6 | 25.4 | 22.2 | 27.0 | 10.4 | LOK T spojka redukovana / trubka nerez SS316 3/4 / 5/8 / 1/2 F12-UT-F10-F8-316 | |
| F12-UT-F10-F10-316 | 3/4 | 5/8 | 5/8 | 39.6 | 39.6 | 39.6 | 24.4 | 24.4 | 24.4 | 28.6 | 25.4 | 25.4 | 27.0 | 12.7 | LOK T spojka redukovana / trubka nerez SS316 3/4 / 5/8 / 5/8 F12-UT-F10-F10-316 | |
| F12-UT-F12-F4-316 | 3/4 | 3/4 | 1/4 | 39.6 | 39.6 | 35.1 | 24.4 | 24.4 | 15.2 | 28.6 | 28.6 | 14.3 | 27.0 | 4.8 | LOK T spojka redukovana / trubka nerez SS316 3/4 / 3/4 / 1/4 F12-UT-F12-F4-316 | |
| F12-UT-F12-F6-316 | 3/4 | 3/4 | 3/8 | 39.6 | 39.6 | 36.9 | 24.4 | 24.4 | 16.8 | 28.6 | 28.6 | 17.5 | 27.0 | 7.1 | SS-1210-3-12-6 | LOK T spojka redukovana / trubka nerez SS316 3/4 / 3/4 / 3/8 F12-UT-F12-F6-316 |
| F12-UT-F12-F8-316 | 3/4 | 3/4 | 1/2 | 39.6 | 39.6 | 39.6 | 24.4 | 24.4 | 22.9 | 28.6 | 28.6 | 22.2 | 27.0 | 10.4 | SS-1210-3-12-8 | LOK T spojka redukovana / trubka nerez SS316 3/4 / 3/4 / 1/2 F12-UT-F12-F8-316 |
| F12-UT-F12-F10-316 | 3/4 | 3/4 | 5/8 | 39.6 | 39.6 | 39.6 | 24.4 | 24.4 | 24.4 | 28.6 | 28.6 | 25.4 | 27.0 | 12.7 | LOK T spojka redukovana / trubka nerez SS316 3/4 / 3/4 / 5/8 F12-UT-F12-F10-316 | |
| F14-UT-F8-F12-316 | 7/8 | 1/2 | 3/4 | 44.7 | 44.7 | 44.7 | 25.9 | 22.9 | 24.4 | 31.8 | 22.2 | 28.6 | 34.9 | 10.4 | LOK T spojka redukovana / trubka nerez SS316 7/8 / 1/2 / 3/4 F14-UT-F8-F12-316 | |
| F14-UT-F10-F6-316 | 7/8 | 5/8 | 3/8 | 44.7 | 44.7 | 41.9 | 25.9 | 24.4 | 16.8 | 31.8 | 25.4 | 17.5 | 34.9 | 7.1 | LOK T spojka redukovana / trubka nerez SS316 7/8 / 5/8 / 3/8 F14-UT-F10-F6-316 | |
| F14-UT-F12-F6-316 | 7/8 | 3/4 | 3/8 | 44.7 | 44.7 | 41.9 | 25.9 | 24.4 | 16.8 | 31.8 | 28.6 | 17.5 | 34.9 | 7.1 | LOK T spojka redukovana / trubka nerez SS316 7/8 / 3/4 / 3/8 F14-UT-F12-F6-316 | |
| F14-UT-F12-F8-316 | 7/8 | 3/4 | 1/2 | 44.7 | 44.7 | 44.7 | 25.9 | 24.4 | 22.9 | 31.8 | 28.6 | 22.2 | 34.9 | 10.4 | LOK T spojka redukovana / trubka nerez SS316 7/8 / 3/4 / 1/2 F14-UT-F12-F8-316 | |
| F14-UT-F12-F12-316 | 7/8 | 3/4 | 3/4 | 44.7 | 44.7 | 44.7 | 25.9 | 24.4 | 24.4 | 31.8 | 28.6 | 28.6 | 34.9 | 15.7 | LOK T spojka redukovana / trubka nerez SS316 7/8 / 3/4 / 3/4 F14-UT-F12-F12-316 | |
| F14-UT-F14-F4-316 | 7/8 | 7/8 | 1/4 | 44.7 | 44.7 | 40.4 | 25.9 | 25.9 | 15.2 | 31.8 | 31.8 | 14.3 | 34.9 | 4.8 | LOK T spojka redukovana / trubka nerez SS316 7/8 / 7/8 / 1/4 F14-UT-F14-F4-316 | |
| F14-UT-F14-F6-316 | 7/8 | 7/8 | 3/8 | 44.7 | 44.7 | 41.9 | 25.9 | 25.9 | 16.8 | 31.8 | 31.8 | 17.5 | 34.9 | 7.1 | LOK T spojka redukovana / trubka nerez SS316 7/8 / 7/8 / 3/8 F14-UT-F14-F6-316 | |
| F16-UT-F6-F6-316 | 1 | 3/8 | 3/8 | 49.3 | 41.9 | 41.9 | 31.2 | 16.8 | 16.8 | 38.1 | 17.5 | 17.5 | 34.9 | 7.1 | LOK T spojka redukovana / trubka nerez SS316 1 / 3/8 / 3/8 F16-UT-F6-F6-316 | |
| F16-UT-F8-F4-316 | 1 | 1/2 | 1/4 | 49.3 | 44.7 | 40.4 | 31.2 | 22.9 | 15.2 | 38.1 | 22.2 | 14.3 | 34.9 | 4.8 | LOK T spojka redukovana / trubka nerez SS316 1 / 1/2 / 1/4 F16-UT-F8-F4-316 | |
| F16-UT-F8-F6-316 | 1 | 1/2 | 3/8 | 49.3 | 44.7 | 41.9 | 31.2 | 22.9 | 16.8 | 38.1 | 22.2 | 17.5 | 34.9 | 7.1 | LOK T spojka redukovana / trubka nerez SS316 1 / 1/2 / 3/8 F16-UT-F8-F6-316 | |
| F16-UT-F8-F8-316 | 1 | 1/2 | 1/2 | 49.3 | 44.7 | 44.7 | 31.2 | 22.9 | 22.9 | 38.1 | 22.2 | 22.2 | 34.9 | 10.4 | LOK T spojka redukovana / trubka nerez SS316 1 / 1/2 / 1/2 F16-UT-F8-F8-316 | |
| F16-UT-F8-F16-316 | 1 | 1/2 | 1 | 49.3 | 44.7 | 49.3 | 31.2 | 22.9 | 31.2 | 38.1 | 22.2 | 38.1 | 34.9 | 10.4 | LOK T spojka redukovana / trubka nerez SS316 1 / 1/2 / 1 F16-UT-F8-F16-316 | |
| F16-UT-F10-F6-316 | 1 | 5/8 | 3/8 | 49.3 | 44.7 | 41.9 | 31.2 | 24.4 | 16.8 | 38.1 | 25.4 | 17.5 | 34.9 | 7.1 | LOK T spojka redukovana / trubka nerez SS316 1 / 5/8 / 3/8 F16-UT-F10-F6-316 | |
| F16-UT-F12-F6-316 | 1 | 3/4 | 3/8 | 49.3 | 44.7 | 41.9 | 31.2 | 24.4 | 16.8 | 38.1 | 28.6 | 17.5 | 34.9 | 7.1 | SS-1610-3-12-6 | LOK T spojka redukovana / trubka nerez SS316 1 / 3/4 / 3/8 F16-UT-F12-F6-316 |
| F16-UT-F12-F8-316 | 1 | 3/4 | 1/2 | 49.3 | 44.7 | 44.7 | 31.2 | 24.4 | 22.9 | 38.1 | 28.6 | 22.2 | 34.9 | 10.4 | LOK T spojka redukovana / trubka nerez SS316 1 / 3/4 / 1/2 F16-UT-F12-F8-316 | |
| F16-UT-F12-F10-316 | 1 | 3/4 | 5/8 | 49.3 | 44.7 | 44.7 | 31.2 | 24.4 | 24.4 | 38.1 | 28.6 | 25.4 | 34.9 | 12.7 | LOK T spojka redukovana / trubka nerez SS316 1 / 3/4 / 5/8 F16-UT-F12-F10-316 | |
| F16-UT-F12-F16-316 | 1 | 3/4 | 1 | 49.3 | 44.7 | 49.3 | 31.2 | 24.4 | 31.2 | 38.1 | 28.6 | 38.1 | 34.9 | 15.7 | LOK T spojka redukovana / trubka nerez SS316 1 / 3/4 / 1 F16-UT-F12-F16-316 | |
| F16-UT-F14-F4-316 | 1 | 7/8 | 1/4 | 49.3 | 44.7 | 40.4 | 31.2 | 25.9 | 15.2 | 38.1 | 31.8 | 14.3 | 34.9 | 4.8 | LOK T spojka redukovana / trubka nerez SS316 1 / 7/8 / 1/4 F16-UT-F14-F4-316 | |
| F16-UT-F14-F6-316 | 1 | 7/8 | 3/8 | 49.3 | 44.7 | 41.9 | 31.2 | 25.9 | 16.8 | 38.1 | 31.8 | 17.5 | 34.9 | 7.1 | LOK T spojka redukovana / trubka nerez SS316 1 / 7/8 / 3/8 F16-UT-F14-F6-316 | |
| F16-UT-F14-F8-316 | 1 | 7/8 | 1/2 | 49.3 | 44.7 | 44.7 | 31.2 | 25.9 | 22.9 | 38.1 | 31.8 | 22.2 | 34.9 | 10.4 | LOK T spojka redukovana / trubka nerez SS316 1 / 7/8 / 1/2 F16-UT-F14-F8-316 | |
| F16-UT-F14-F12-316 | 1 | 7/8 | 3/4 | 49.3 | 44.7 | 44.7 | 31.2 | 25.9 | 24.4 | 38.1 | 31.8 | 28.6 | 34.9 | 12.7 | LOK T spojka redukovana / trubka nerez SS316 1 / 7/8 / 3/4 F16-UT-F14-F12-316 | |
| F16-UT-F14-F14-316 | 1 | 7/8 | 7/8 | 49.3 | 44.7 | 44.7 | 31.2 | 25.9 | 25.9 | 38.1 | 31.8 | 31.8 | 34.9 | 18.3 | LOK T spojka redukovana / trubka nerez SS316 1 / 7/8 / 7/8 F16-UT-F14-F14-316 | |
| F16-UT-F16-F4-316 | 1 | 1 | 1/4 | 49.3 | 49.3 | 40.4 | 31.2 | 31.2 | 15.2 | 38.1 | 38.1 | 14.3 | 34.9 | 4.8 | LOK T spojka redukovana / trubka nerez SS316 1 / 1 / 1/4 F16-UT-F16-F4-316 | |
| F16-UT-F16-F6-316 | 1 | 1 | 3/8 | 49.3 | 49.3 | 41.9 | 31.2 | 31.2 | 16.8 | 38.1 | 38.1 | 17.5 | 34.9 | 7.1 | SS-1610-3-16-6 | LOK T spojka redukovana / trubka nerez SS316 1 / 1 / 3/8 F16-UT-F16-F6-316 |
| F16-UT-F16-F8-316 | 1 | 1 | 1/2 | 49.3 | 49.3 | 44.7 | 31.2 | 31.2 | 22.9 | 38.1 | 38.1 | 22.2 | 34.9 | 10.4 | SS-1610-3-16-8 | LOK T spojka redukovana / trubka nerez SS316 1 / 1 / 1/2 F16-UT-F16-F8-316 |
| F16-UT-F16-F10-316 | 1 | 1 | 5/8 | 49.3 | 49.3 | 44.7 | 31.2 | 31.2 | 24.4 | 38.1 | 38.1 | 25.4 | 34.9 | 12.7 | LOK T spojka redukovana / trubka nerez SS316 1 / 1 / 5/8 F16-UT-F16-F10-316 | |
| F16-UT-F16-F12-316 | 1 | 1 | 3/4 | 49.3 | 49.3 | 44.7 | 31.2 | 31.2 | 24.4 | 38.1 | 38.1 | 28.6 | 34.9 | 15.7 | SS-1610-3-16-12 | LOK T spojka redukovana / trubka nerez SS316 1 / 1 / 3/4 F16-UT-F16-F12-316 |
| F16-UT-F16-F14-316 | 1 | 1 | 7/8 | 49.3 | 49.3 | 44.7 | 31.2 | 31.2 | 25.9 | 38.1 | 38.1 | 31.8 | 34.9 | 18.3 | LOK T spojka redukovana / trubka nerez SS316 1 / 1 / 7/8 F16-UT-F16-F14-316 | |
| F20-UT-F20-F16-316 | 1 1/4 | 1 1/4 | 1 | 67.8 | 67.8 | 55.1 | 41.2 | 41.2 | 31.3 | 47.6 | 47.6 | 38.1 | 42.9 | 22.4 | SS-2000-3-20-16 | LOK T spojka redukovana / trubka nerez SS316 1 1/4 / 1 1/4 / 1 F20-UT-F20-F16-316 |
| F24-UT-F24-F16-316 | 1 1/2 | 1 1/2 | 1 | 78.7 | 78.7 | 60.0 | 50.0 | 50.0 | 31.3 | 57.2 | 57.2 | 38.1 | 50.8 | 22.4 | SS-2400-3-24-16 | LOK T spojka redukovana / trubka nerez SS316 1 1/2 / 1 1/2 / 1 F24-UT-F24-F16-316 |
| M3-UT-M3-M6-316 | 3 | 3 | 6 | 24.7 | 24.7 | 27.0 | 12.9 | 12.9 | 15.3 | 12 | 12 | 14 | 12.7 | 2.4 | SS-3M0-3-3M-6M | LOK T spojka redukovana / trubka nerez SS316 3 / 3 / 6 M3-UT-M3-M6-316 |
| M6-UT-M6-M3-316 | 6 | 6 | 3 | 27.0 | 27.0 | 25.4 | 15.3 | 15.3 | 12.9 | 14 | 14 | 12 | 12.7 | 2.4 | LOK T spojka redukovana / trubka nerez SS316 6 / 6 / 3 M6-UT-M6-M3-316 | |
| M6-UT-M6-M8-316 | 6 | 6 | 8 | 28.0 | 28.0 | 28.8 | 15.3 | 15.3 | 16.2 | 14 | 14 | 16 | 14.3 | 4.8 | LOK T spojka redukovana / trubka nerez SS316 6 / 6 / 8 M6-UT-M6-M8-316 | |
| M8-UT-M8-M6-316 | 8 | 8 | 6 | 30.0 | 30.0 | 29.0 | 16.2 | 16.2 | 15.3 | 16 | 16 | 14 | 15.9 | 4.8 | SS-8M0-3-8M-6M | LOK T spojka redukovana / trubka nerez SS316 8 / 8 / 6 M8-UT-M8-M6-316 |
| M8-UT-M8-M12-316 | 8 | 8 | 12 | 35.2 | 35.2 | 36.0 | 16.2 | 16.2 | 22.8 | 16 | 16 | 22 | 20.6 | 6.4 | LOK T spojka redukovana / trubka nerez SS316 8 / 8 / 12 M8-UT-M8-M12-316 | |
| M10-UT-M10-M6-316 | 10 | 10 | 6 | 31.5 | 31.5 | 29.9 | 17.2 | 17.2 | 15.3 | 19 | 19 | 14 | 17.5 | 4.8 | SS-10M0-3-10M-6M | LOK T spojka redukovana / trubka nerez SS316 10 / 10 / 6 M10-UT-M10-M6-316 |
| M10-UT-M10-M8-316 | 10 | 10 | 8 | 31.5 | 31.5 | 30.7 | 17.2 | 17.2 | 16.2 | 19 | 19 | 16 | 17.5 | 6.4 | LOK T spojka redukovana / trubka nerez SS316 10 / 10 / 8 M10-UT-M10-M8-316 | |
| M12-UT-M12-M6-316 | 12 | 12 | 6 | 36.0 | 36.0 | 31.8 | 22.8 | 22.8 | 15.3 | 22 | 22 | 14 | 20.6 | 4.8 | SS-12M0-3-12M-6M | LOK T spojka redukovana / trubka nerez SS316 12 / 12 / 6 M12-UT-M12-M6-316 |
| M12-UT-M12-M8-316 | 12 | 12 | 8 | 36.0 | 36.0 | 35.2 | 22.8 | 22.8 | 16.2 | 22 | 22 | 16 | 20.6 | 6.4 | LOK T spojka redukovana / trubka nerez SS316 12 / 12 / 8 M12-UT-M12-M8-316 | |
| M12-UT-M12-M14-316 | 12 | 12 | 14 | 38.0 | 38.0 | 38.0 | 22.8 | 22.8 | 24.4 | 22 | 22 | 25 | 25.4 | 9.5 | LOK T spojka redukovana / trubka nerez SS316 12 / 12 / 14 M12-UT-M12-M14-316 | |
| M12-UT-M12-M18-316 | 12 | 12 | 18 | 39.8 | 39.8 | 39.8 | 22.8 | 22.8 | 24.4 | 22 | 22 | 30 | 27.0 | 9.5 | LOK T spojka redukovana / trubka nerez SS316 12 / 12 / 18 M12-UT-M12-M18-316 | |
| M14-UT-M14-M8-316 | 14 | 14 | 8 | 38.0 | 38.0 | 37.2 | 24.4 | 24.4 | 16.2 | 25 | 25 | 16 | 25.4 | 6.4 | LOK T spojka redukovana / trubka nerez SS316 14 / 14 / 8 M14-UT-M14-M8-316 | |
| M14-UT-M14-M10-316 | 14 | 14 | 10 | 38.0 | 38.0 | 38.0 | 24.4 | 24.4 | 17.2 | 25 | 25 | 19 | 25.4 | 7.9 | LOK T spojka redukovana / trubka nerez SS316 14 / 14 / 10 M14-UT-M14-M10-316 | |
| M15-UT-M15-M12-316 | 15 | 15 | 12 | 38.8 | 38.8 | 38.8 | 24.4 | 24.4 | 22.8 | 25 | 25 | 22 | 25.4 | 9.5 | SS-15M0-3-15M-12M | LOK T spojka redukovana / trubka nerez SS316 15 / 15 / 12 M15-UT-M15-M12-316 |
| M16-UT-M16-M8-316 | 16 | 16 | 8 | 38.8 | 37.2 | 38.8 | 24.4 | 16.2 | 24.4 | 25 | 16 | 25 | 25.4 | 6.4 | LOK T spojka redukovana / trubka nerez SS316 16 / 16 / 8 M16-UT-M16-M8-316 | |
| M16-UT-M16-M12-316 | 16 | 16 | 12 | 38.8 | 38.8 | 38.9 | 24.4 | 24.4 | 22.8 | 25 | 25 | 22 | 25.4 | 9.5 | SS-16M0-3-16M-12M | LOK T spojka redukovana / trubka nerez SS316 16 / 16 / 12 M16-UT-M16-M12-316 |
| M18-UT-M18-M8-316 | 18 | 18 | 8 | 39.8 | 39.8 | 39.0 | 24.4 | 24.4 | 16.2 | 30 | 30 | 16 | 27.0 | 6.4 | LOK T spojka redukovana / trubka nerez SS316 18 / 18 / 8 M18-UT-M18-M8-316 | |
| M18-UT-M18-M10-316 | 18 | 18 | 10 | 39.8 | 39.8 | 39.8 | 24.4 | 24.4 | 17.2 | 30 | 30 | 19 | 27.0 | 7.9 | LOK T spojka redukovana / trubka nerez SS316 18 / 18 / 10 M18-UT-M18-M10-316 | |
| M18-UT-M18-M12-316 | 18 | 18 | 12 | 39.8 | 39.8 | 39.8 | 24.4 | 24.4 | 22.8 | 30 | 30 | 22 | 27.0 | 9.5 | SS-18M0-3-18M-12M | LOK T spojka redukovana / trubka nerez SS316 18 / 18 / 12 M18-UT-M18-M12-316 |
| M18-UT-M18-M14-316 | 18 | 18 | 14 | 39.8 | 39.8 | 39.8 | 24.4 | 24.4 | 24.4 | 30 | 30 | 25 | 27.0 | 11.1 | LOK T spojka redukovana / trubka nerez SS316 18 / 18 / 14 M18-UT-M18-M14-316 | |
| M20-UT-M20-M14-316 | 20 | 20 | 14 | 44.6 | 44.6 | 44.6 | 26.0 | 26.0 | 24.4 | 32 | 32 | 25 | 34.9 | 11.1 | LOK T spojka redukovana / trubka nerez SS316 20 / 20 / 14 M20-UT-M20-M14-316 | |
| M22-UT-M22-M12-316 | 22 | 22 | 12 | 44.6 | 44.6 | 44.6 | 26.0 | 26.0 | 22.8 | 32 | 32 | 22 | 34.9 | 9.5 | SS-22M0-3-22M-12M | LOK T spojka redukovana / trubka nerez SS316 22 / 22 / 12 M22-UT-M22-M12-316 |
| M25-UT-M25-M12-316 | 25 | 25 | 12 | 49.1 | 49.1 | 44.7 | 31.3 | 31.3 | 22.8 | 38 | 38 | 22 | 34.9 | 9.5 | SS-25M0-3-25M-12M | LOK T spojka redukovana / trubka nerez SS316 25 / 25 / 12 M25-UT-M25-M12-316 |
