LOK T spojka NPT F side / trubka nerez SS316
LOK T spojka NPT F side / trubka nerez SS316
- Kód produktu: FFRTFNPTF

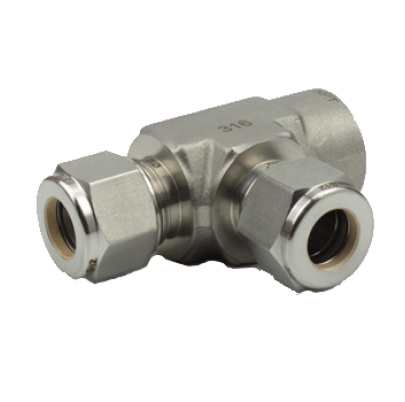

LOK T spojka NPT F side / trubka nerez SS316
LOK T union NPT F side / tube stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK T spojka NPT F side / trubka nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

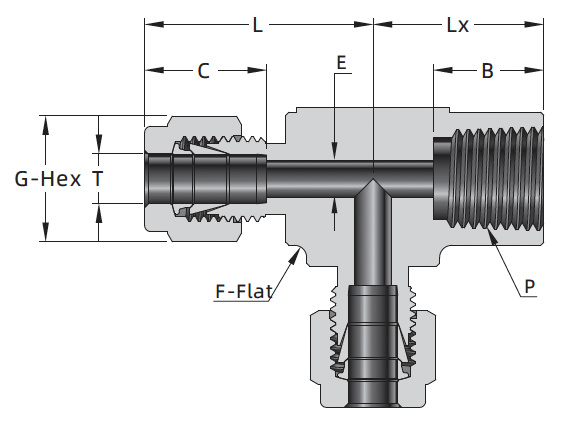

| Kod | Rozmer trubky T (Inch/mm) | Rozmer P-NPT | L mm | C mm | G mm | F mm | E mm | B mm | Lx mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension P-NPT | Replacement: | Description | |||||||
| F2-FRT-FNPT2-F2-316 | 1/8 | 1/8 | 24.6 | 12.7 | 11.1 | 12.7 | 2.3 | 10.4 | 19.1 | SS-200-3TFT | LOK T spojka NPT F side / trubka nerez SS316 1/8 / 1/8 F2-FRT-FNPT2-F2-316 |
| F3-FRT-FNPT2-F3-316 | 3/16 | 1/8 | 25.7 | 13.7 | 12.7 | 12.7 | 3.0 | 10.4 | 19.1 | LOK T spojka NPT F side / trubka nerez SS316 3/16 / 1/8 F3-FRT-FNPT2-F3-316 | |
| F4-FRT-FNPT2-F4-316 | 1/4 | 1/8 | 26.9 | 15.2 | 14.3 | 12.7 | 4.8 | 10.4 | 19.1 | SS-400-3TFT | LOK T spojka NPT F side / trubka nerez SS316 1/4 / 1/8 F4-FRT-FNPT2-F4-316 |
| F4-FRT-FNPT4-F4-316 | 1/4 | 1/4 | 29.7 | 15.2 | 14.3 | 17.5 | 4.8 | 15.0 | 22.4 | SS-400-3-4TFT | LOK T spojka NPT F side / trubka nerez SS316 1/4 / 1/4 F4-FRT-FNPT4-F4-316 |
| F5-FRT-FNPT2-F5-316 | 5/16 | 1/8 | 29.7 | 16.2 | 15.9 | 15.9 | 6.4 | 10.4 | 19.1 | LOK T spojka NPT F side / trubka nerez SS316 5/16 / 1/8 F5-FRT-FNPT2-F5-316 | |
| F6-FRT-FNPT4-F6-316 | 3/8 | 1/4 | 31.2 | 16.8 | 17.5 | 17.5 | 7.1 | 15.0 | 22.4 | SS-600-3TFT | LOK T spojka NPT F side / trubka nerez SS316 3/8 / 1/4 F6-FRT-FNPT4-F6-316 |
| F8-FRT-FNPT4-F8-316 | 1/2 | 1/4 | 36.1 | 22.9 | 22.2 | 20.6 | 10.4 | 15.0 | 22.4 | LOK T spojka NPT F side / trubka nerez SS316 1/2 / 1/4 F8-FRT-FNPT4-F8-316 | |
| F8-FRT-FNPT6-F8-316 | 1/2 | 3/8 | 36.1 | 22.9 | 22.2 | 20.6 | 10.4 | 15.0 | 22.4 | SS-810-3TFT | LOK T spojka NPT F side / trubka nerez SS316 1/2 / 3/8 F8-FRT-FNPT6-F8-316 |
| F8-FRT-FNPT8-F8-316 | 1/2 | 1/2 | 39.9 | 22.9 | 22.2 | 27.0 | 10.4 | 19.8 | 28.4 | SS-810-3-8TFT | LOK T spojka NPT F side / trubka nerez SS316 1/2 / 1/2 F8-FRT-FNPT8-F8-316 |
| F10-FRT-FNPT8-F10-316 | 5/8 | 1/2 | 39.9 | 24.4 | 25.4 | 27.0 | 12.7 | 19.8 | 28.4 | LOK T spojka NPT F side / trubka nerez SS316 5/8 / 1/2 F10-FRT-FNPT8-F10-316 | |
| F12-FRT-FNPT12-F12-316 | 3/4 | 3/4 | 44.7 | 24.4 | 28.6 | 34.9 | 15.7 | 20.6 | 31.8 | SS-1210-3TFT | LOK T spojka NPT F side / trubka nerez SS316 3/4 / 3/4 F12-FRT-FNPT12-F12-316 |
| F14-FRT-FNPT8-F14-316 | 7/8 | 1/2 | 44.7 | 25.9 | 31.8 | 34.9 | 15.7 | 19.8 | 28.4 | LOK T spojka NPT F side / trubka nerez SS316 7/8 / 1/2 F14-FRT-FNPT8-F14-316 | |
| F14-FRT-FNPT12-F14-316 | 7/8 | 3/4 | 44.7 | 25.9 | 31.8 | 34.9 | 18.3 | 20.6 | 31.8 | LOK T spojka NPT F side / trubka nerez SS316 7/8 / 3/4 F14-FRT-FNPT12-F14-316 | |
| F16-FRT-FNPT12-F16-316 | 1 | 3/4 | 49.0 | 31.2 | 38.1 | 34.9 | 22.4 | 20.6 | 31.8 | SS-1610-3-12TFT | LOK T spojka NPT F side / trubka nerez SS316 1 / 3/4 F16-FRT-FNPT12-F16-316 |
| F16-FRT-FNPT16-F16-316 | 1 | 1 | 53.6 | 31.2 | 38.1 | 42.9 | 22.4 | 25.4 | 38.1 | SS-1610-3TFT | LOK T spojka NPT F side / trubka nerez SS316 1 / 1 F16-FRT-FNPT16-F16-316 |
| M6-FRT-FNPT2-M6-316 | 6 | 1/8 | 27.0 | 15.3 | 14 | 12.7 | 4.8 | 10.4 | 19.0 | SS-6MO-3TFT | LOK T spojka NPT F side / trubka nerez SS316 6 / 1/8 M6-FRT-FNPT2-M6-316 |
| M6-FRT-FNPT4-M6-316 | 6 | 1/4 | 29.8 | 15.3 | 14 | 17.5 | 4.8 | 15.0 | 22.4 | SS-6M0-3-4TFT | LOK T spojka NPT F side / trubka nerez SS316 6 / 1/4 M6-FRT-FNPT4-M6-316 |
| M8-FRT-FNPT2-M8-316 | 8 | 1/8 | 29.9 | 16.2 | 16 | 15.9 | 4.8 | 10.4 | 19.0 | SS-8M0-3TFT | LOK T spojka NPT F side / trubka nerez SS316 8 / 1/8 M8-FRT-FNPT2-M8-316 |
| M8-FRT-FNPT4-M8-316 | 8 | 1/4 | 30.6 | 16.2 | 16 | 17.5 | 6.4 | 15.0 | 22.4 | SS-8M0-3-4TFT | LOK T spojka NPT F side / trubka nerez SS316 8 / 1/4 M8-FRT-FNPT4-M8-316 |
| M10-FRT-FNPT4-M10-316 | 10 | 1/4 | 33.5 | 17.2 | 19 | 20.6 | 7.9 | 15.0 | 22.4 | SS-10M0-3TFT | LOK T spojka NPT F side / trubka nerez SS316 10 / 1/4 M10-FRT-FNPT4-M10-316 |
| M12-FRT-FNPT4-M12-316 | 12 | 1/4 | 36.0 | 22.8 | 22 | 20.6 | 9.5 | 15.0 | 22.4 | SS-12M0-3-4TFT | LOK T spojka NPT F side / trubka nerez SS316 12 / 1/4 M12-FRT-FNPT4-M12-316 |
| M12-FRT-FNPT6-M12-316 | 12 | 3/8 | 36.0 | 22.8 | 22 | 20.6 | 9.5 | 15.0 | 23.1 | SS-12MO-3TFT | LOK T spojka NPT F side / trubka nerez SS316 12 / 3/8 M12-FRT-FNPT6-M12-316 |
| M12-FRT-FNPT8-M12-316 | 12 | 1/2 | 38.8 | 22.8 | 22 | 25.4 | 9.5 | 19.8 | 28.5 | SS-12M0-3-8TFT | LOK T spojka NPT F side / trubka nerez SS316 12 / 1/2 M12-FRT-FNPT8-M12-316 |
| M16-FRT-FNPT8-M16-316 | 16 | 1/2 | 39.8 | 24.4 | 25 | 27.0 | 11.9 | 19.8 | 28.4 | SS-16M0-3TFT | LOK T spojka NPT F side / trubka nerez SS316 16 / 1/2 M16-FRT-FNPT8-M16-316 |
