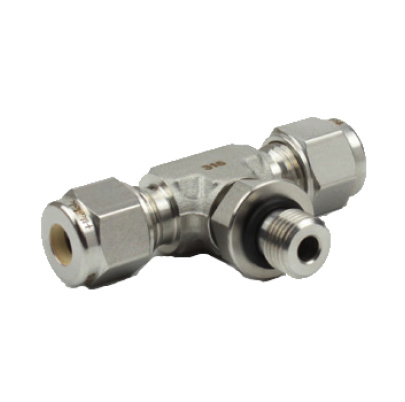

LOK T spojka BSPP UPS center / trubka nerez SS316
LOK T spojka BSPP UPS center / trubka nerez SS316
- Kód produktu: FPMBTFPPT
LOK T spojka BSPP UPS center / trubka nerez SS316
LOK T union BSPP Positionable center / tube stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK T spojka BSPP USP center / trubka nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

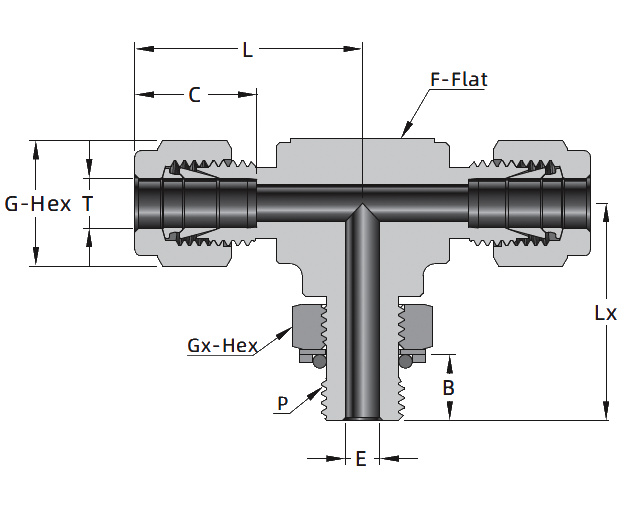

| Kod | Rozmer trubky T (Inch/mm) | Rozmer P-BSPP | L mm | B mm | C mm | E mm | G mm | F mm | Lx mm | Gx mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension P-BSPP | Replacement: | Description | ||||||||
| F4-PMBT-F4-PPT2-316 | 1/4 | 1/8 | 26.9 | 8.1 | 15.2 | 4.1 | 14.3 | 12.7 | 26.4 | 14.3 | SS-400-3TTR | LOK T spojka BSPP UPS center / trubka nerez SS316 1/4 / 1/8 F4-PMBT-F4-PPT2-316 |
| F4-PMBT-F4-PPT4-316 | 1/4 | 1/4 | 29.0 | 9.1 | 15.2 | 4.8 | 14.3 | 15.9 | 32.3 | 19.1 | SS-400-3-4TTR | LOK T spojka BSPP UPS center / trubka nerez SS316 1/4 / 1/4 F4-PMBT-F4-PPT4-316 |
| F6-PMBT-F6-PPT4-316 | 3/8 | 1/4 | 30.5 | 9.1 | 16.8 | 5.8 | 17.5 | 15.9 | 32.3 | 19.1 | SS-600-3TTR | LOK T spojka BSPP UPS center / trubka nerez SS316 3/8 / 1/4 F6-PMBT-F6-PPT4-316 |
| F8-PMBT-F8-PPT6-316 | 1/2 | 3/8 | 36.1 | 9.4 | 22.9 | 7.9 | 22.2 | 20.6 | 37.1 | 22.2 | SS-810-3TTR | LOK T spojka BSPP UPS center / trubka nerez SS316 1/2 / 3/8 F8-PMBT-F8-PPT6-316 |
| F8-PMBT-F8-PPT8-316 | 1/2 | 1/2 | 38.1 | 13.0 | 22.9 | 10.4 | 22.2 | 23.8 | 43.4 | 27.0 | SS-810-3-8TTR | LOK T spojka BSPP UPS center / trubka nerez SS316 1/2 / 1/2 F8-PMBT-F8-PPT8-316 |
| F10-PMBT-F10-PPT8-316 | 5/8 | 1/2 | 38.1 | 13.0 | 24.4 | 11.9 | 25.4 | 23.8 | 43.4 | 27.0 | SS-1010-3TTR | LOK T spojka BSPP UPS center / trubka nerez SS316 5/8 / 1/2 F10-PMBT-F10-PPT8-316 |
| F12-PMBT-F12-PPT8-316 | 3/4 | 1/2 | 39.9 | 13.0 | 24.4 | 11.9 | 28.6 | 27.0 | 45.2 | 27.0 | SS-1210-3-8TTR | LOK T spojka BSPP UPS center / trubka nerez SS316 3/4 / 1/2 F12-PMBT-F12-PPT8-316 |
| F12-PMBT-F12-PPT12-316 | 3/4 | 3/4 | 39.9 | 13.0 | 24.4 | 15.7 | 28.6 | 27.0 | 48.8 | 34.9 | SS-1210-3TTR | LOK T spojka BSPP UPS center / trubka nerez SS316 3/4 / 3/4 F12-PMBT-F12-PPT12-316 |
| F16-PMBT-F16-PPT16-316 | 1 | 1 | 49.0 | 14.0 | 31.2 | 19.8 | 38.1 | 34.9 | 53.6 | 41.3 | SS-1610-3TTR | LOK T spojka BSPP UPS center / trubka nerez SS316 1 / 1 F16-PMBT-F16-PPT16-316 |
| M6-PMBT-M6-PPT2-316 | 6 | 1/8 | 27.0 | 8.1 | 15.3 | 4.0 | 14 | 12.7 | 26.4 | 14.3 | SS-6MO-3TTR | LOK T spojka BSPP UPS center / trubka nerez SS316 6 / 1/8 M6-PMBT-M6-PPT2-316 |
| M6-PMBT-M6-PPT4-316 | 6 | 1/4 | 29.0 | 9.1 | 15.3 | 4.8 | 14 | 15.9 | 32.2 | 19.1 | SS-6M0-3-4TTR | LOK T spojka BSPP UPS center / trubka nerez SS316 6 / 1/4 M6-PMBT-M6-PPT4-316 |
| M8-PMBT-M8-PPT2-316 | 8 | 1/8 | 28.8 | 8.1 | 16.2 | 4.0 | 16 | 14.3 | 27.5 | 14.3 | SS-8M0-3TTR | LOK T spojka BSPP UPS center / trubka nerez SS316 8 / 1/8 M8-PMBT-M8-PPT2-316 |
| M8-PMBT-M8-PPT4-316 | 8 | 1/4 | 29.9 | 9.1 | 16.2 | 5.9 | 16 | 15.9 | 32.2 | 19.1 | SS-8M0-3-4TTR | LOK T spojka BSPP UPS center / trubka nerez SS316 8 / 1/4 M8-PMBT-M8-PPT4-316 |
| M10-PMBT-M10-PPT4-316 | 10 | 1/4 | 33.5 | 9.1 | 17.2 | 5.9 | 19 | 20.6 | 35.1 | 19.1 | SS-10M0-3TTR | LOK T spojka BSPP UPS center / trubka nerez SS316 10 / 1/4 M10-PMBT-M10-PPT4-316 |
| M12-PMBT-M12-PPT6-316 | 12 | 3/8 | 36.0 | 9.4 | 22.8 | 7.9 | 22 | 20.6 | 37.1 | 22.2 | SS-12MO-3TTR | LOK T spojka BSPP UPS center / trubka nerez SS316 12 / 3/8 M12-PMBT-M12-PPT6-316 |
| M12-PMBT-M12-PPT8-316 | 12 | 1/2 | 38.0 | 13.0 | 22.8 | 9.5 | 22 | 23.8 | 43.5 | 27.0 | SS-12M0-3-8TTR | LOK T spojka BSPP UPS center / trubka nerez SS316 12 / 1/2 M12-PMBT-M12-PPT8-316 |
