LOK spojka navar vonkajsi nerez SS316
LOK spojka navar vonkajsi nerez SS316
- Kód produktu: FWCPBW

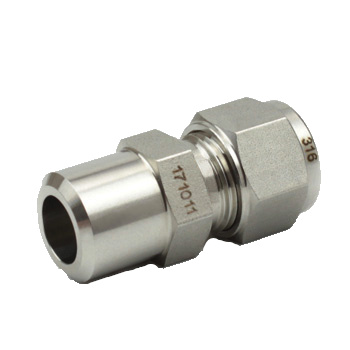

LOK spojka navar vonkajsi nerez SS316
LOK union weld outside stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK spojky navar vonkajsi nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

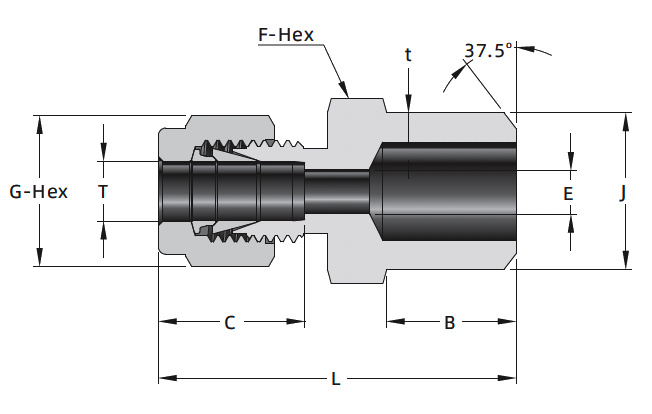

| Kod | Rozmer trubky T (Inch/mm) | Rozmer zvaranej trubky (Inch/mm) | L mm | C mm | G mm | F mm | E mm | B mm | J mm | t mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension weld tube (Inch/mm) | Replacement: | Description | ||||||||
| F2-WC-PBW2-316 | 1/8 | 1/8 | 30.5 | 12.7 | 11.1 | 11.1 | 2.3 | 9.7 | 10.3 | 2.4 | SS-200-1-2W | LOK spojka navar vonkajsi nerez SS316 1/8 / 1/8 F2-WC-PBW2-316 |
| F3-WC-PBW2-316 | 3/16 | 1/8 | 31.2 | 13.7 | 12.7 | 11.1 | 3.0 | 9.7 | 10.3 | 3.0 | SS-300-1-2W | LOK spojka navar vonkajsi nerez SS316 3/16 / 1/8 F3-WC-PBW2-316 |
| F4-WC-PBW2-316 | 1/4 | 1/8 | 32.8 | 15.2 | 14.3 | 12.7 | 4.8 | 9.7 | 10.3 | 3.2 | SS-400-1-2W | LOK spojka navar vonkajsi nerez SS316 1/4 / 1/8 F4-WC-PBW2-316 |
| F4-WC-PBW4-316 | 1/4 | 1/4 | 37.8 | 15.2 | 14.3 | 14.3 | 4.8 | 14.2 | 13.7 | 3.7 | SS-400-1-4W | LOK spojka navar vonkajsi nerez SS316 1/4 / 1/4 F4-WC-PBW4-316 |
| F5-WC-PBW2-316 | 5/16 | 1/8 | 34.0 | 16.3 | 15.9 | 14.3 | 5.3 | 9.7 | 10.3 | 3.9 | SS-500-1-2W | LOK spojka navar vonkajsi nerez SS316 5/16 / 1/8 F5-WC-PBW2-316 |
| F5-WC-PBW4-316 | 5/16 | 1/4 | 38.6 | 16.3 | 15.9 | 14.3 | 6.4 | 14.2 | 13.7 | 2.4 | SS-500-1-4W | LOK spojka navar vonkajsi nerez SS316 5/16 / 1/4 F5-WC-PBW4-316 |
| F6-WC-PBW4-316 | 3/8 | 1/4 | 39.9 | 16.8 | 17.5 | 15.9 | 7.1 | 14.2 | 13.7 | 2.4 | SS-600-1-4W | LOK spojka navar vonkajsi nerez SS316 3/8 / 1/4 F6-WC-PBW4-316 |
| F6-WC-PBW6-316 | 3/8 | 3/8 | 39.9 | 16.8 | 17.5 | 17.5 | 7.1 | 14.2 | 17.1 | 3.0 | SS-600-1-6W | LOK spojka navar vonkajsi nerez SS316 3/8 / 3/8 F6-WC-PBW6-316 |
| F6-WC-PBW8-316 | 3/8 | 1/2 | 46.2 | 16.8 | 17.5 | 22.2 | 7.1 | 19.1 | 21.3 | 2.4 | SS-600-1-8W | LOK spojka navar vonkajsi nerez SS316 3/8 / 1/2 F6-WC-PBW8-316 |
| F6-WC-PBW12-316 | 3/8 | 3/4 | 47.8 | 16.8 | 17.5 | 27.0 | 7.1 | 19.1 | 26.7 | 3.0 | SS-600-1-12W | LOK spojka navar vonkajsi nerez SS316 3/8 / 3/4 F6-WC-PBW12-316 |
| F8-WC-PBW6-316 | 1/2 | 3/8 | 43.4 | 22.9 | 22.2 | 20.6 | 10.4 | 14.2 | 17.1 | 3.2 | SS-810-1-6W | LOK spojka navar vonkajsi nerez SS316 1/2 / 3/8 F8-WC-PBW6-316 |
| F8-WC-PBW8-316 | 1/2 | 1/2 | 49.0 | 22.9 | 22.2 | 22.2 | 10.4 | 19.1 | 21.3 | 3.7 | SS-810-1-8W | LOK spojka navar vonkajsi nerez SS316 1/2 / 1/2 F8-WC-PBW8-316 |
| F8-WC-PBW12-316 | 1/2 | 3/4 | 50.5 | 22.9 | 22.2 | 27.0 | 10.4 | 19.1 | 26.7 | 3.9 | SS-810-1-12W | LOK spojka navar vonkajsi nerez SS316 1/2 / 3/4 F8-WC-PBW12-316 |
| F10-WC-PBW8-316 | 5/8 | 1/2 | 49.0 | 24.4 | 25.4 | 23.8 | 12.7 | 19.1 | 21.3 | 3.7 | SS-1010-1-8W | LOK spojka navar vonkajsi nerez SS316 5/8 / 1/2 F10-WC-PBW8-316 |
| F12-WC-PBW8-316 | 3/4 | 1/2 | 50.5 | 24.4 | 28.6 | 27.0 | 14.0 | 19.1 | 21.3 | 3.7 | SS-1210-1-8W | LOK spojka navar vonkajsi nerez SS316 3/4 / 1/2 F12-WC-PBW8-316 |
| F12-WC-PBW12-316 | 3/4 | 3/4 | 50.5 | 24.4 | 28.6 | 27.0 | 15.7 | 19.1 | 26.7 | 3.9 | SS-1210-1-12W | LOK spojka navar vonkajsi nerez SS316 3/4 / 3/4 F12-WC-PBW12-316 |
| F16-WC-PBW16-316 | 1 | 1 | 62.2 | 31.2 | 38.1 | 34.9 | 22.4 | 23.9 | 33.4 | 4.5 | SS-1610-1-16W | LOK spojka navar vonkajsi nerez SS316 1 / 1 F16-WC-PBW16-316 |
| F20-WC-PBW20-316 | 1 1/4 | 1 1/4 | 77.2 | 41.1 | 47.6 | 44.5 | 27.7 | 23.9 | 42.2 | 4.9 | SS-2000-1-20W | LOK spojka navar vonkajsi nerez SS316 1 1/4 / 1 1/4 F20-WC-PBW20-316 |
| F24-WC-PBW24-316 | 1 1/2 | 1 1/2 | 88.9 | 50.0 | 57.2 | 54.0 | 34.0 | 26.2 | 48.3 | 5.1 | SS-2400-1-24W | LOK spojka navar vonkajsi nerez SS316 1 1/2 / 1 1/2 F24-WC-PBW24-316 |
| M3-WC-PBW2-316 | 3 | 1/8 | 30.5 | 12.9 | 12 | 12 | 2.4 | 9.7 | 10.3 | 2.4 | SS-3M0-1-2W | LOK spojka navar vonkajsi nerez SS316 3 / 1/8 M3-WC-PBW2-316 |
| M4-WC-PBW2-316 | 4 | 1/8 | 31.5 | 13.7 | 12 | 12 | 2.4 | 9.7 | 10.3 | 2.4 | SS-4M0-1-2W | LOK spojka navar vonkajsi nerez SS316 4 / 1/8 M4-WC-PBW2-316 |
| M6-WC-PBW2-316 | 6 | 1/8 | 32.8 | 15.3 | 14 | 14 | 4.8 | 9.7 | 10.3 | 2.4 | SS-6MO-1-2W | LOK spojka navar vonkajsi nerez SS316 6 / 1/8 M6-WC-PBW2-316 |
| M6-WC-PBW4-316 | 6 | 1/4 | 37.9 | 15.3 | 14 | 14 | 4.8 | 14.2 | 13.7 | 3.0 | SS-6MO-1-4W | LOK spojka navar vonkajsi nerez SS316 6 / 1/4 M6-WC-PBW4-316 |
| M8-WC-PBW2-316 | 8 | 1/8 | 34.2 | 16.2 | 16 | 15 | 5.4 | 9.7 | 10.3 | 2.4 | SS-8M0-1-2W | LOK spojka navar vonkajsi nerez SS316 8 / 1/8 M8-WC-PBW2-316 |
| M8-WC-PBW4-316 | 8 | 1/4 | 38.7 | 16.2 | 16 | 15 | 6.4 | 14.2 | 13.7 | 3.0 | SS-8MO-1-4W | LOK spojka navar vonkajsi nerez SS316 8 / 1/4 M8-WC-PBW4-316 |
| M8-WC-PBW8-316 | 8 | 1/2 | 45.6 | 16.2 | 16 | 22 | 6.4 | 19.1 | 21.3 | 3.7 | SS-8M0-1-8W | LOK spojka navar vonkajsi nerez SS316 8 / 1/2 M8-WC-PBW8-316 |
| M10-WC-PBW4-316 | 10 | 1/4 | 40.9 | 17.2 | 19 | 18 | 7.5 | 14.2 | 13.7 | 3.0 | SS-10MO-1-4W | LOK spojka navar vonkajsi nerez SS316 10 / 1/4 M10-WC-PBW4-316 |
| M10-WC-PBW6-316 | 10 | 3/8 | 40.9 | 17.2 | 19 | 18 | 7.9 | 14.2 | 17.1 | 3.2 | SS-10MO-1-6W | LOK spojka navar vonkajsi nerez SS316 10 / 3/8 M10-WC-PBW6-316 |
| M10-WC-PBW8-316 | 10 | 1/2 | 46.5 | 17.2 | 19 | 22 | 7.9 | 19.1 | 21.3 | 3.7 | SS-10M0-1-8W | LOK spojka navar vonkajsi nerez SS316 10 / 1/2 M10-WC-PBW8-316 |
| M12-WC-PBW4-316 | 12 | 1/4 | 43.4 | 22.8 | 22 | 22 | 7.5 | 14.2 | 13.7 | 3.0 | SS-12MO-1-4W | LOK spojka navar vonkajsi nerez SS316 12 / 1/4 M12-WC-PBW4-316 |
| M12-WC-PBW6-316 | 12 | 3/8 | 43.4 | 22.8 | 22 | 22 | 9.5 | 14.2 | 17.1 | 3.2 | SS-12MO-1-6W | LOK spojka navar vonkajsi nerez SS316 12 / 3/8 M12-WC-PBW6-316 |
| M12-WC-PBW8-316 | 12 | 1/2 | 49.0 | 22.8 | 22 | 22 | 9.5 | 19.1 | 21.3 | 3.7 | SS-12M0-1-8W | LOK spojka navar vonkajsi nerez SS316 12 / 1/2 M12-WC-PBW8-316 |
| M14-WC-PBW6-316 | 14 | 3/8 | 44.1 | 24.4 | 25 | 24 | 10.7 | 14.2 | 17.1 | 3.2 | SS-14M0-1-6W | LOK spojka navar vonkajsi nerez SS316 14 / 3/8 M14-WC-PBW6-316 |
| M15-WC-PBW8-316 | 15 | 1/2 | 49.0 | 24.4 | 25 | 24 | 11.9 | 19.1 | 21.3 | 3.7 | SS-15M0-1-8W | LOK spojka navar vonkajsi nerez SS316 15 / 1/2 M15-WC-PBW8-316 |
| M16-WC-PBW8-316 | 16 | 1/2 | 49.0 | 24.4 | 25 | 24 | 12.7 | 19.1 | 21.3 | 3.7 | SS-16M0-1-8W | LOK spojka navar vonkajsi nerez SS316 16 / 1/2 M16-WC-PBW8-316 |
| M18-WC-PBW8-316 | 18 | 1/2 | 50.5 | 24.4 | 30 | 27 | 13.9 | 19.1 | 21.3 | 3.7 | SS-18MO-1-8W | LOK spojka navar vonkajsi nerez SS316 18 / 1/2 M18-WC-PBW8-316 |
| M30-WC-PBW20-316 | 30 | 1 1/4 | 77.2 | 39.6 | 50 | 46 | 26.2 | 23.9 | 42.2 | 4.9 | SS-30M0-1-20W | LOK spojka navar vonkajsi nerez SS316 30 / 1 1/4 M30-WC-PBW20-316 |
| M32-WC-PBW20-316 | 32 | 1 1/4 | 79.6 | 42.0 | 50 | 46 | 28.6 | 23.9 | 42.2 | 4.9 | SS-32M0-1-20W | LOK spojka navar vonkajsi nerez SS316 32 / 1 1/4 M32-WC-PBW20-316 |
| M38-WC-PBW24-316 | 38 | 1 1/2 | 91.6 | 49.4 | 60 | 55 | 33.7 | 26.2 | 48.3 | 5.1 | SS-38MO-1-24W | LOK spojka navar vonkajsi nerez SS316 38 / 1 1/2 M38-WC-PBW24-316 |
