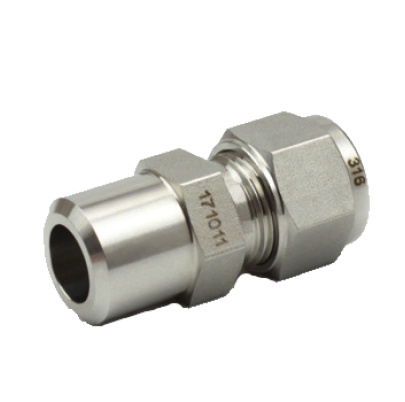

LOK spojka navar vnutorny nerez SS316
LOK spojka navar vnutorny nerez SS316
- Kód produktu: FWCFSW
LOK spojka navar vnutorny nerez SS316
LOK union weld inside stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK spojky navar vnutorny nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

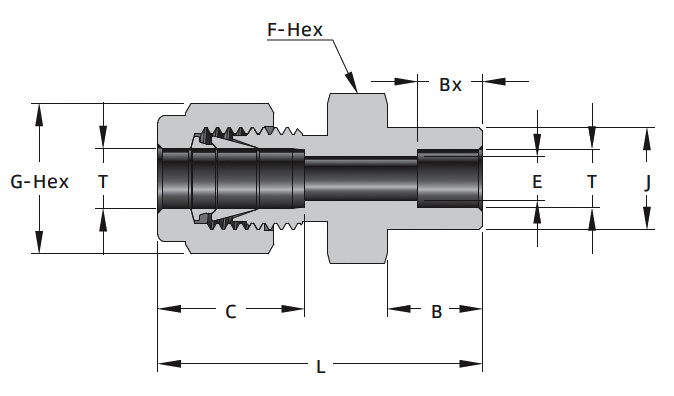

| Kod | Rozmer trubky T (Inch/mm) | L mm | C mm | G mm | F mm | B mm | E mm | Bx mm | J mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Replacement: | Description | ||||||||
| F2-WC-FSW2-316 | 1/8 | 29.0 | 12.7 | 11.1 | 11.1 | 8.6 | 2.3 | 2.5 | 7.4 | SS-200-6-2W | LOK spojka navar vnutorny nerez SS316 1/8 F2-WC-FSW2-316 |
| F3-WC-FSW3-316 | 3/16 | 29.7 | 13.7 | 12.7 | 11.1 | 9.5 | 3.3 | 4.8 | 10.7 | LOK spojka navar vnutorny nerez SS316 3/16 F3-WC-FSW3-316 | |
| F4-WC-FSW4-316 | 1/4 | 33.5 | 15.2 | 14.3 | 12.7 | 10.4 | 4.8 | 7.1 | 12.2 | SS-400-6-4W | LOK spojka navar vnutorny nerez SS316 1/4 F4-WC-FSW4-316 |
| F6-WC-FSW6-316 | 3/8 | 37.6 | 16.8 | 17.5 | 15.9 | 11.9 | 7.1 | 7.9 | 15.2 | SS-600-6-6W | LOK spojka navar vnutorny nerez SS316 3/8 F6-WC-FSW6-316 |
| F8-WC-FSW8-316 | 1/2 | 41.1 | 22.9 | 22.2 | 20.6 | 11.9 | 10.4 | 9.7 | 18.5 | SS-810-6-8W | LOK spojka navar vnutorny nerez SS316 1/2 F8-WC-FSW8-316 |
| F10-WC-FSW10-316 | 5/8 | 41.9 | 24.4 | 25.4 | 23.8 | 11.9 | 12.7 | 10.4 | 23.4 | LOK spojka navar vnutorny nerez SS316 5/8 F10-WC-FSW10-316 | |
| F12-WC-FSW12-316 | 3/4 | 43.4 | 24.4 | 28.6 | 27.0 | 11.9 | 15.7 | 11.1 | 26.4 | SS-1210-6-12W | LOK spojka navar vnutorny nerez SS316 3/4 F12-WC-FSW12-316 |
| F16-WC-FSW16-316 | 1 | 52.6 | 31.2 | 38.1 | 34.9 | 14.2 | 22.4 | 15.7 | 34.5 | SS-1610-6-16W | LOK spojka navar vnutorny nerez SS316 1 F16-WC-FSW16-316 |
