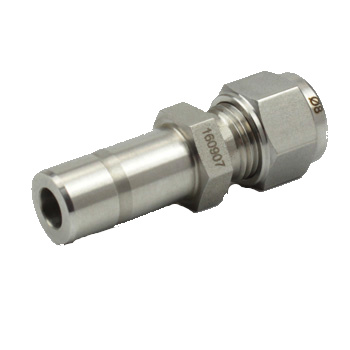

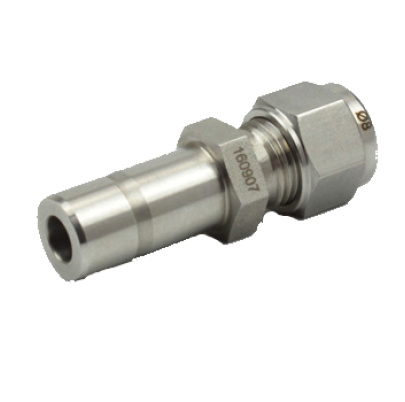

LOK redukcia nerez SS316
LOK reducer stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK redukcie nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

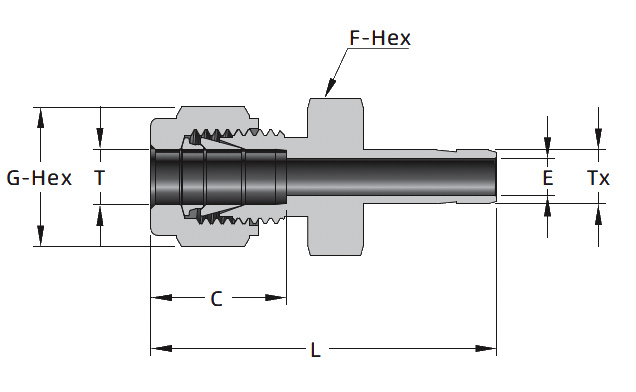

| Kod | Rozmer trubky T (Inch/mm) | Rozmer trubky Tx (Inch/mm) | L mm | C mm | G mm | F mm | E mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension tube Tx (Inch/mm) | Replacement: | Description | |||||
| F1-R-FT2-316 | 1/16 | 1/8 | 29.2 | 8.6 | 7.9 | 7.9 | 1.3 | SS-100-B-2 | LOK redukcia nerez SS316 1/16 / 1/8 F1-R-FT2-316 |
| F1-R-FT3-316 | 1/16 | 3/16 | 30.0 | 8.6 | 7.9 | 7.9 | 1.3 | LOK redukcia nerez SS316 1/16 / 3/16 F1-R-FT3-316 | |
| F1-R-FT4-316 | 1/16 | 1/4 | 31.5 | 8.6 | 7.9 | 7.9 | 1.3 | SS-100-R-4 | LOK redukcia nerez SS316 1/16 / 1/4 F1-R-FT4-316 |
| F2-R-FT1-316 | 1/8 | 1/16 | 29.0 | 12.7 | 11.1 | 11.1 | 0.8 | SS-200-R-1 | LOK redukcia nerez SS316 1/8 / 1/16 F2-R-FT1-316 |
| F2-R-FT2-316 | 1/8 | 1/8 | 33.5 | 12.7 | 11.1 | 11.1 | 2.0 | SS-200-R-2 | LOK redukcia nerez SS316 1/8 / 1/8 F2-R-FT2-316 |
| F2-R-FT3-316 | 1/8 | 3/16 | 34.3 | 12.7 | 11.1 | 11.1 | 2.3 | SS-200-R-3 | LOK redukcia nerez SS316 1/8 / 3/16 F2-R-FT3-316 |
| F2-R-FT4-316 | 1/8 | 1/4 | 36.1 | 12.7 | 11.1 | 11.1 | 2.3 | SS-200-R-4 | LOK redukcia nerez SS316 1/8 / 1/4 F2-R-FT4-316 |
| F2-R-FT6-316 | 1/8 | 3/8 | 37.6 | 12.7 | 11.1 | 11.1 | 2.3 | SS-200-R-6 | LOK redukcia nerez SS316 1/8 / 3/8 F2-R-FT6-316 |
| F2-R-FT8-316 | 1/8 | 1/2 | 44.2 | 12.7 | 11.1 | 14.3 | 2.3 | SS-200-R-8 | LOK redukcia nerez SS316 1/8 / 1/2 F2-R-FT8-316 |
| F3-R-FT2-316 | 3/16 | 1/8 | 34.8 | 13.7 | 12.7 | 11.1 | 2.0 | SS-300-R-2 | LOK redukcia nerez SS316 3/16 / 1/8 F3-R-FT2-316 |
| F3-R-FT4-316 | 3/16 | 1/4 | 37.1 | 13.7 | 12.7 | 11.1 | 3.0 | SS-300-B-4 | LOK redukcia nerez SS316 3/16 / 1/4 F3-R-FT4-316 |
| F4-R-FT2-316 | 1/4 | 1/8 | 36.8 | 15.2 | 14.3 | 12.7 | 2.0 | SS-400-R-2 | LOK redukcia nerez SS316 1/4 / 1/8 F4-R-FT2-316 |
| F4-R-FT3-316 | 1/4 | 3/16 | 37.6 | 15.2 | 14.3 | 12.7 | 3.0 | SS-400-R-3 | LOK redukcia nerez SS316 1/4 / 3/16 F4-R-FT3-316 |
| F4-R-FT4-316 | 1/4 | 1/4 | 39.1 | 15.2 | 14.3 | 12.7 | 4.3 | SS-400-B-4 | LOK redukcia nerez SS316 1/4 / 1/4 F4-R-FT4-316 |
| F4-R-FT5-316 | 1/4 | 5/16 | 39.9 | 15.2 | 14.3 | 12.7 | 4.8 | SS-400-R-5 | LOK redukcia nerez SS316 1/4 / 5/16 F4-R-FT5-316 |
| F4-R-FT6-316 | 1/4 | 3/8 | 40.6 | 15.2 | 14.3 | 12.7 | 4.8 | SS-400-R-6 | LOK redukcia nerez SS316 1/4 / 3/8 F4-R-FT6-316 |
| F4-R-FT8-316 | 1/4 | 1/2 | 46.2 | 15.2 | 14.3 | 14.3 | 4.8 | SS-400-R-8 | LOK redukcia nerez SS316 1/4 / 1/2 F4-R-FT8-316 |
| F4-R-FT10-316 | 1/4 | 5/8 | 48.0 | 15.2 | 14.3 | 17.5 | 4.8 | SS-400-R-10 | LOK redukcia nerez SS316 1/4 / 5/8 F4-R-FT10-316 |
| F4-R-FT12-316 | 1/4 | 3/4 | 47.8 | 15.2 | 14.3 | 20.6 | 4.8 | SS-400-R-12 | LOK redukcia nerez SS316 1/4 / 3/4 F4-R-FT12-316 |
| F5-R-FT6-316 | 5/16 | 3/8 | 41.9 | 16.3 | 15.9 | 14.3 | 6.4 | SS-500-R-6 | LOK redukcia nerez SS316 5/16 / 3/8 F5-R-FT6-316 |
| F5-R-FT8-316 | 5/16 | 1/2 | 47.5 | 16.3 | 15.9 | 14.3 | 6.4 | SS_500-R-8 | LOK redukcia nerez SS316 5/16 / 1/2 F5-R-FT8-316 |
| F6-R-FT4-316 | 3/8 | 1/4 | 41.4 | 16.8 | 17.5 | 15.9 | 4.3 | SS-600-R-4 | LOK redukcia nerez SS316 3/8 / 1/4 F6-R-FT4-316 |
| F6-R-FT6-316 | 3/8 | 3/8 | 43.2 | 16.8 | 17.5 | 15.9 | 6.9 | SS-600-B-6 | LOK redukcia nerez SS316 3/8 / 3/8 F6-R-FT6-316 |
| F6-R-FT8-316 | 3/8 | 1/2 | 48.5 | 16.8 | 17.5 | 15.9 | 7.1 | SS-600-B-8 | LOK redukcia nerez SS316 3/8 / 1/2 F6-R-FT8-316 |
| F6-R-FT10-316 | 3/8 | 5/8 | 50.3 | 16.8 | 17.5 | 17.5 | 7.1 | SS-600-R-10 | LOK redukcia nerez SS316 3/8 / 5/8 F6-R-FT10-316 |
| F6-R-FT12-316 | 3/8 | 3/4 | 50.3 | 16.8 | 17.5 | 20.6 | 7.1 | SS-600-R-12 | LOK redukcia nerez SS316 3/8 / 3/4 F6-R-FT12-316 |
| F8-R-FT4-316 | 1/2 | 1/4 | 45.0 | 22.9 | 22.2 | 20.6 | 4.3 | SS-810-R-4 | LOK redukcia nerez SS316 1/2 / 1/4 F8-R-FT4-316 |
| F8-R-FT6-316 | 1/2 | 3/8 | 46.7 | 22.9 | 22.2 | 20.6 | 6.9 | SS-810-R-6 | LOK redukcia nerez SS316 1/2 / 3/8 F8-R-FT6-316 |
| F8-R-FT8-316 | 1/2 | 1/2 | 52.3 | 22.9 | 22.2 | 20.6 | 9.4 | SS-810-R-8 | LOK redukcia nerez SS316 1/2 / 1/2 F8-R-FT8-316 |
| F8-R-FT10-316 | 1/2 | 5/8 | 53.8 | 22.9 | 22.2 | 20.6 | 10.4 | SS-810-R-10 | LOK redukcia nerez SS316 1/2 / 5/8 F8-R-FT10-316 |
| F8-R-FT12-316 | 1/2 | 3/4 | 53.8 | 22.9 | 22.2 | 20.6 | 10.4 | SS-810-R-12 | LOK redukcia nerez SS316 1/2 / 3/4 F8-R-FT12-316 |
| F8-R-FT16-316 | 1/2 | 1 | 60.2 | 22.9 | 22.2 | 27.0 | 10.4 | SS-810-R-16 | LOK redukcia nerez SS316 1/2 / 1 F8-R-FT16-316 |
| F10-R-FT12-316 | 5/8 | 3/4 | 54.6 | 24.4 | 25.4 | 23.8 | 12.7 | SS-1010-R-12 | LOK redukcia nerez SS316 5/8 / 3/4 F10-R-FT12-316 |
| F10-R-FT14-316 | 5/8 | 7/8 | 56.1 | 24.4 | 25.4 | 23.8 | 12.7 | SS-1010-R-14 | LOK redukcia nerez SS316 5/8 / 7/8 F10-R-FT14-316 |
| F10-R-FT16-316 | 5/8 | 1 | 61.0 | 24.4 | 25.4 | 27.0 | 12.7 | SS-1010-R-16 | LOK redukcia nerez SS316 5/8 / 1 F10-R-FT16-316 |
| F12-R-FT8-316 | 3/4 | 1/2 | 54.6 | 24.4 | 28.6 | 27.0 | 9.4 | SS-1210-B-8 | LOK redukcia nerez SS316 3/4 / 1/2 F12-R-FT8-316 |
| F12-R-FT12-316 | 3/4 | 3/4 | 54.6 | 24.4 | 28.6 | 27.0 | 14.7 | LOK redukcia nerez SS316 3/4 / 3/4 F12-R-FT12-316 | |
| F12-R-FT16-316 | 3/4 | 1 | 62.5 | 24.4 | 28.6 | 27.0 | 15.7 | SS-1210-R-16 | LOK redukcia nerez SS316 3/4 / 1 F12-R-FT16-316 |
| F2-R-MT6-316 | 1/8 | 6 | 36.1 | 12.7 | 11.1 | 11.1 | 2.3 | SS-200-R-6M | LOK redukcia nerez SS316 1/8 / 6 F2-R-MT6-316 |
| M2-R-MT3-316 | 2 | 3 | 33.5 | 12.9 | 12 | 12 | 1.7 | SS-2MO-R-3M | LOK redukcia nerez SS316 2 / 3 M2-R-MT3-316 |
| M3-R-MT4-316 | 3 | 4 | 35.0 | 12.9 | 12 | 12 | 2.4 | SS-3MO-R-4M | LOK redukcia nerez SS316 3 / 4 M3-R-MT4-316 |
| M3-R-MT6-316 | 3 | 6 | 36.1 | 12.9 | 12 | 12 | 2.4 | SS-3MO-R-6M | LOK redukcia nerez SS316 3 / 6 M3-R-MT6-316 |
| M3-R-MT10-316 | 3 | 10 | 38.4 | 12.9 | 12 | 14 | 2.4 | SS-3MO-R-10M | LOK redukcia nerez SS316 3 / 10 M3-R-MT10-316 |
| M4-R-MT6-316 | 4 | 6 | 37.1 | 13.7 | 12 | 12 | 2.4 | SS-4M0-B-6M | LOK redukcia nerez SS316 4 / 6 M4-R-MT6-316 |
| M6-R-MT3-316 | 6 | 3 | 36.9 | 15.3 | 14 | 14 | 1.9 | SS-6MO-R-3M | LOK redukcia nerez SS316 6 / 3 M6-R-MT3-316 |
| M6-R-MT8-316 | 6 | 8 | 39.9 | 15.3 | 14 | 14 | 4.8 | SS-6MO-R-8M | LOK redukcia nerez SS316 6 / 8 M6-R-MT8-316 |
| M6-R-MT10-316 | 6 | 10 | 40.7 | 15.3 | 14 | 14 | 4.8 | SS-6MO-B-10M | LOK redukcia nerez SS316 6 / 10 M6-R-MT10-316 |
| M6-R-MT12-316 | 6 | 12 | 46.3 | 15.3 | 14 | 14 | 4.8 | SS-6MO-R-12M | LOK redukcia nerez SS316 6 / 12 M6-R-MT12-316 |
| M6-R-MT18-316 | 6 | 18 | 49.6 | 15.3 | 14 | 22 | 4.8 | SS-6M0-R-18M | LOK redukcia nerez SS316 6 / 18 M6-R-MT18-316 |
| M8-R-MT6-316 | 8 | 6 | 40.3 | 16.2 | 16 | 15 | 4.1 | SS-8MO-R-6M | LOK redukcia nerez SS316 8 / 6 M8-R-MT6-316 |
| M8-R-MT10-316 | 8 | 10 | 42.0 | 16.2 | 16 | 15 | 6.4 | SS-8MO-R-10M | LOK redukcia nerez SS316 8 / 10 M8-R-MT10-316 |
| M8-R-MT12-316 | 8 | 12 | 47.6 | 16.2 | 16 | 15 | 6.4 | SS-8MO-R-12M | LOK redukcia nerez SS316 8 / 12 M8-R-MT12-316 |
| M10-R-MT6-316 | 10 | 6 | 42.4 | 17.2 | 19 | 18 | 4.1 | SS-10MO-R-6M | LOK redukcia nerez SS316 10 / 6 M10-R-MT6-316 |
| M10-R-MT8-316 | 10 | 8 | 43.4 | 17.2 | 19 | 18 | 5.6 | SS-10MO-R-8M | LOK redukcia nerez SS316 10 / 8 M10-R-MT8-316 |
| M10-R-MT12-316 | 10 | 12 | 49.8 | 17.2 | 19 | 18 | 7.9 | SS-10MO-R-12M | LOK redukcia nerez SS316 10 / 12 M10-R-MT12-316 |
| M10-R-MT15-316 | 10 | 15 | 51.3 | 17.2 | 19 | 18 | 7.9 | SS-10MO-R-15M | LOK redukcia nerez SS316 10 / 15 M10-R-MT15-316 |
| M10-R-MT18-316 | 10 | 18 | 51.3 | 17.2 | 19 | 22 | 7.9 | SS-10M0-R-18M | LOK redukcia nerez SS316 10 / 18 M10-R-MT18-316 |
| M12-R-MT6-316 | 12 | 6 | 44.9 | 22.8 | 22 | 22 | 4.1 | SS-12MO-R-6M | LOK redukcia nerez SS316 12 / 6 M12-R-MT6-316 |
| M12-R-MT8-316 | 12 | 8 | 45.9 | 22.8 | 22 | 22 | 5.6 | SS-12MO-R-8M | LOK redukcia nerez SS316 12 / 8 M12-R-MT8-316 |
| M12-R-MT10-316 | 12 | 10 | 46.7 | 22.8 | 22 | 22 | 7.1 | SS-12MO-R-10M | LOK redukcia nerez SS316 12 / 10 M12-R-MT10-316 |
| M12-R-MT16-316 | 12 | 16 | 53.8 | 22.8 | 22 | 22 | 9.5 | SS-12MO-R-16M | LOK redukcia nerez SS316 12 / 16 M12-R-MT16-316 |
| M12-R-MT18-316 | 12 | 18 | 53.8 | 22.8 | 22 | 22 | 9.5 | SS-12MO-R-18M | LOK redukcia nerez SS316 12 / 18 M12-R-MT18-316 |
| M12-R-MT20-316 | 12 | 20 | 56.1 | 22.8 | 22 | 22 | 9.5 | SS-12MO-R-20M | LOK redukcia nerez SS316 12 / 20 M12-R-MT20-316 |
| M12-R-MT22-316 | 12 | 22 | 56.1 | 22.8 | 22 | 24 | 9.5 | SS-12MO-R-22M | LOK redukcia nerez SS316 12 / 22 M12-R-MT22-316 |
| M12-R-MT25-316 | 12 | 25 | 62.4 | 22.8 | 22 | 27 | 9.5 | SS-12MO-R-25M | LOK redukcia nerez SS316 12 / 25 M12-R-MT25-316 |
| M16-R-MT12-316 | 16 | 12 | 53.0 | 24.4 | 25 | 24 | 8.8 | SS-16MO-R-12M | LOK redukcia nerez SS316 16 / 12 M16-R-MT12-316 |
| M18-R-MT12-316 | 18 | 12 | 54.6 | 24.4 | 30 | 27 | 8.8 | SS-18MO-R-12M | LOK redukcia nerez SS316 18 / 12 M18-R-MT12-316 |
| M18-R-MT16-316 | 18 | 16 | 56.1 | 24.4 | 30 | 27 | 12.0 | SS-18MO-R-16M | LOK redukcia nerez SS316 18 / 16 M18-R-MT16-316 |
| M18-R-MT20-316 | 18 | 20 | 57.6 | 24.4 | 30 | 27 | 15.1 | SS-18MO-R-20M | LOK redukcia nerez SS316 18 / 20 M18-R-MT20-316 |
| M18-R-MT22-316 | 18 | 22 | 57.6 | 24.4 | 30 | 27 | 15.1 | SS-18MO-R-22M | LOK redukcia nerez SS316 18 / 22 M18-R-MT22-316 |
| M18-R-MT25-316 | 18 | 25 | 62.4 | 24.4 | 30 | 27 | 15.1 | SS-18MO-R-25M | LOK redukcia nerez SS316 18 / 25 M18-R-MT25-316 |
| M20-R-MT16-316 | 20 | 16 | 57.9 | 26.0 | 32 | 30 | 12.0 | SS-20M0-R-16M | LOK redukcia nerez SS316 20 / 16 M20-R-MT16-316 |
| M20-R-MT18-316 | 20 | 18 | 57.9 | 26.0 | 32 | 30 | 13.9 | SS-20MO-R-18M | LOK redukcia nerez SS316 20 / 18 M20-R-MT18-316 |
| M20-R-MT22-316 | 20 | 22 | 59.4 | 26.0 | 32 | 30 | 15.9 | SS-20M0-R-22M | LOK redukcia nerez SS316 20 / 22 M20-R-MT22-316 |
| M20-R-MT25-316 | 20 | 25 | 64.2 | 26.0 | 32 | 30 | 15.8 | SS-20M0-R-25M | LOK redukcia nerez SS316 20 / 25 M20-R-MT25-316 |
| M25-R-MT18-316 | 22 | 18 | 57.9 | 26.0 | 32 | 30 | 13.9 | SS-22MO-R-18M | LOK redukcia nerez SS316 22 / 18 M25-R-MT18-316 |
| M25-R-MT20-316 | 22 | 20 | 59.4 | 26.0 | 32 | 30 | 15.5 | SS-22MO-R-20M | LOK redukcia nerez SS316 22 / 20 M25-R-MT20-316 |
| M22-R-MT18-316 | 22 | 25 | 64.2 | 26.0 | 32 | 30 | 18.3 | SS-22MO-R-25M | LOK redukcia nerez SS316 22 / 25 M22-R-MT18-316 |
| M22-R-MT20-316 | 25 | 18 | 63.1 | 31.3 | 38 | 35 | 13.9 | SS-25M0-R-18M | LOK redukcia nerez SS316 25 / 18 M22-R-MT20-316 |
| M22-R-MT25-316 | 25 | 20 | 64.6 | 31.3 | 38 | 35 | 15.5 | SS-25MO-R-20M | LOK redukcia nerez SS316 25 / 20 M22-R-MT25-316 |
| M2-R-FT2-316 | 2 | 1/8 | 33.5 | 12.9 | 12 | 12 | 1.7 | SS-2MO-R-2 | LOK redukcia nerez SS316 2 / 1/8 M2-R-FT2-316 |
| M3-R-FT2-316 | 3 | 1/8 | 33.5 | 12.9 | 12 | 12 | 2.0 | SS-3MO-R-2 | LOK redukcia nerez SS316 3 / 1/8 M3-R-FT2-316 |
| M3-R-FT4-316 | 3 | 1/4 | 36.1 | 12.9 | 12 | 12 | 2.4 | SS-3MO-R-4 | LOK redukcia nerez SS316 3 / 1/4 M3-R-FT4-316 |
| M4-R-FT4-316 | 4 | 1/4 | 37.1 | 13.7 | 12 | 12 | 2.4 | SS-4MO-R-4 | LOK redukcia nerez SS316 4 / 1/4 M4-R-FT4-316 |
| M6-R-FT2-316 | 6 | 1/8 | 36.9 | 15.3 | 14 | 14 | 2.0 | SS-6MO-R-2 | LOK redukcia nerez SS316 6 / 1/8 M6-R-FT2-316 |
| M6-R-FT4-316 | 6 | 1/4 | 39.2 | 15.3 | 14 | 14 | 4.4 | SS-6MO-R-4 | LOK redukcia nerez SS316 6 / 1/4 M6-R-FT4-316 |
| M6-R-FT5-316 | 6 | 5/16 | 39.9 | 15.3 | 14 | 14 | 4.8 | SS-6MO-R-5 | LOK redukcia nerez SS316 6 / 5/16 M6-R-FT5-316 |
| M6-R-FT6-316 | 6 | 3/8 | 40.7 | 15.3 | 14 | 14 | 4.8 | SS-6MO-R-6 | LOK redukcia nerez SS316 6 / 3/8 M6-R-FT6-316 |
| M6-R-FT8-316 | 6 | 1/2 | 46.3 | 15.3 | 14 | 14 | 4.8 | SS-6MO-R-8 | LOK redukcia nerez SS316 6 / 1/2 M6-R-FT8-316 |
| M8-R-FT4-316 | 8 | 1/4 | 40.3 | 16.2 | 16 | 15 | 4.4 | SS-8MO-R-4 | LOK redukcia nerez SS316 8 / 1/4 M8-R-FT4-316 |
| M8-R-FT6-316 | 8 | 3/8 | 42.0 | 16.2 | 16 | 15 | 6.4 | SS-8MO-R-6 | LOK redukcia nerez SS316 8 / 3/8 M8-R-FT6-316 |
| M8-R-FT8-316 | 8 | 1/2 | 47.6 | 16.2 | 16 | 15 | 6.4 | SS-8M0-R-8 | LOK redukcia nerez SS316 8 / 1/2 M8-R-FT8-316 |
| M10-R-FT6-316 | 10 | 3/8 | 44.2 | 17.2 | 19 | 18 | 6.8 | SS-10MO-R-6 | LOK redukcia nerez SS316 10 / 3/8 M10-R-FT6-316 |
| M10-R-FT8-316 | 10 | 1/2 | 49.8 | 17.2 | 19 | 18 | 7.9 | SS-10MO-R-8 | LOK redukcia nerez SS316 10 / 1/2 M10-R-FT8-316 |
| M12-R-FT8-316 | 12 | 1/2 | 52.3 | 22.8 | 22 | 22 | 9.3 | SS-12MO-R-8 | LOK redukcia nerez SS316 12 / 1/2 M12-R-FT8-316 |
| M12-R-FT12-316 | 12 | 3/4 | 53.8 | 22.8 | 22 | 22 | 9.5 | SS-12MO-R-12 | LOK redukcia nerez SS316 12 / 3/4 M12-R-FT12-316 |
| M18-R-FT12-316 | 18 | 3/4 | 56.1 | 24.4 | 30 | 27 | 14.7 | SS-18MO-R-12 | LOK redukcia nerez SS316 18 / 3/4 M18-R-FT12-316 |
| M18-R-FT16-316 | 18 | 1 | 62.4 | 24.4 | 30 | 27 | 15.1 | SS-18MO-R-16 | LOK redukcia nerez SS316 18 / 1 M18-R-FT16-316 |
| M25-R-FT16-316 | 25 | 1 | 69.5 | 31.3 | 38 | 35 | 20.2 | SS-25MO-R-16 | LOK redukcia nerez SS316 25 / 1 M25-R-FT16-316 |
