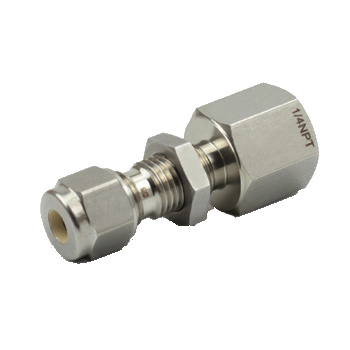

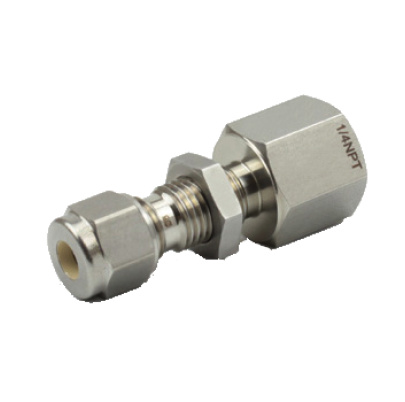

LOK panelova spojka NPT F / Trubka nerez SS316
LOK panelova spojka NPT F / Trubka nerez SS316
- Kód produktu: FBFCFNPT
142:193 LOK panelova spojka NPT F / Trubka nerez SS316
LOK bulkhead union NPT F / Pipe stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK panelove spojky NPT F / Trubka nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

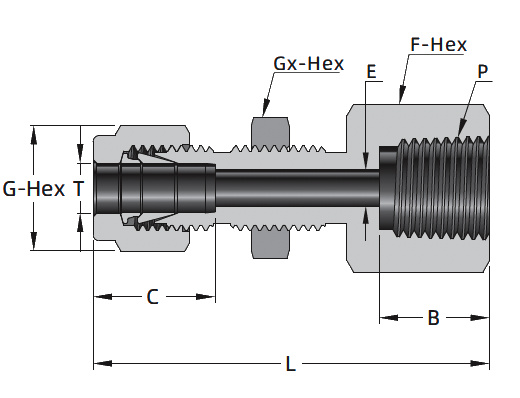

| Kod | Rozmer trubky T (Inch/mm) | Rozmer P-NPT F | L mm | B mm | C mm | E mm | G mm | F mm | Gx mm | Veľkosť otvoru v paneli mm | Max panelova hrubka mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension P-NPT F | Panel hole size mm | Max panel thickness mm | Replacement: | Description | |||||||
| F1-BFC-FNPT1-316 | 1/16 | 1/16 | 26.2 | 9.9 | 8.6 | 1.3 | 7.9 | 11.1 | 7.9 | 5.2 | 3.2 | LOK panelova spojka NPT F / Trubka nerez SS316 1/16 / 1/16 F1-BFC-FNPT1-316 | |
| F1-BFC-FNPT2-316 | 1/16 | 1/8 | 26.9 | 10.4 | 8.6 | 1.3 | 7.9 | 14.3 | 7.9 | 5.2 | 3.2 | LOK panelova spojka NPT F / Trubka nerez SS316 1/16 / 1/8 F1-BFC-FNPT2-316 | |
| F2-BFC-FNPT2-316 | 1/8 | 1/8 | 44.7 | 10.4 | 12.7 | 2.3 | 11.1 | 14.3 | 12.7 | 8.3 | 12.7 | SS-200-71-2 | LOK panelova spojka NPT F / Trubka nerez SS316 1/8 / 1/8 F2-BFC-FNPT2-316 |
| F2-BFC-FNPT4-316 | 1/8 | 1/4 | 49.6 | 15.0 | 12.7 | 2.3 | 11.1 | 19.1 | 12.7 | 8.3 | 12.7 | LOK panelova spojka NPT F / Trubka nerez SS316 1/8 / 1/4 F2-BFC-FNPT4-316 | |
| F3-BFC-FNPT2-316 | 3/16 | 1/8 | 45.5 | 10.4 | 13.7 | 3.0 | 12.7 | 14.3 | 14.3 | 9.9 | 12.7 | LOK panelova spojka NPT F / Trubka nerez SS316 3/16 / 1/8 F3-BFC-FNPT2-316 | |
| F4-BFC-FNPT2-316 | 1/4 | 1/8 | 47.0 | 10.4 | 15.2 | 4.8 | 14.3 | 15.9 | 15.9 | 11.5 | 10.2 | SS-400-71-2 | LOK panelova spojka NPT F / Trubka nerez SS316 1/4 / 1/8 F4-BFC-FNPT2-316 |
| F4-BFC-FNPT4-316 | 1/4 | 1/4 | 51.8 | 15.0 | 15.2 | 4.8 | 14.3 | 19.1 | 15.9 | 11.5 | 10.2 | SS-400-71-4 | LOK panelova spojka NPT F / Trubka nerez SS316 1/4 / 1/4 F4-BFC-FNPT4-316 |
| F4-BFC-FNPT6-316 | 1/4 | 3/8 | 53.3 | 15.0 | 15.2 | 4.8 | 14.3 | 22.2 | 15.9 | 11.5 | 10.2 | LOK panelova spojka NPT F / Trubka nerez SS316 1/4 / 3/8 F4-BFC-FNPT6-316 | |
| F4-BFC-FNPT8-316 | 1/4 | 1/2 | 58.2 | 19.8 | 15.2 | 4.8 | 14.3 | 27.0 | 15.9 | 11.5 | 10.2 | LOK panelova spojka NPT F / Trubka nerez SS316 1/4 / 1/2 F4-BFC-FNPT8-316 | |
| F5-BFC-FNPT2-316 | 5/16 | 1/8 | 49.8 | 10.4 | 16.3 | 6.4 | 15.9 | 14.3 | 17.5 | 13.1 | 11.2 | LOK panelova spojka NPT F / Trubka nerez SS316 5/16 / 1/8 F5-BFC-FNPT2-316 | |
| F5-BFC-FNPT4-316 | 5/16 | 1/4 | 60.5 | 15.0 | 16.3 | 6.4 | 15.9 | 19.1 | 17.5 | 13.1 | 11.2 | LOK panelova spojka NPT F / Trubka nerez SS316 5/16 / 1/4 F5-BFC-FNPT4-316 | |
| F6-BFC-FNPT2-316 | 3/8 | 1/8 | 50.3 | 10.4 | 16.8 | 7.1 | 17.5 | 15.9 | 19.1 | 14.5 | 11.2 | LOK panelova spojka NPT F / Trubka nerez SS316 3/8 / 1/8 F6-BFC-FNPT2-316 | |
| F6-BFC-FNPT4-316 | 3/8 | 1/4 | 55.1 | 15.0 | 16.8 | 7.1 | 17.5 | 19.1 | 19.1 | 14.5 | 11.2 | SS-600-71-4 | LOK panelova spojka NPT F / Trubka nerez SS316 3/8 / 1/4 F6-BFC-FNPT4-316 |
| F6-BFC-FNPT6-316 | 3/8 | 3/8 | 56.6 | 15.0 | 16.8 | 7.1 | 17.5 | 22.2 | 19.1 | 14.5 | 11.2 | LOK panelova spojka NPT F / Trubka nerez SS316 3/8 / 3/8 F6-BFC-FNPT6-316 | |
| F6-BFC-FNPT8-316 | 3/8 | 1/2 | 61.5 | 19.8 | 16.8 | 7.1 | 17.5 | 27.0 | 19.1 | 14.5 | 11.2 | LOK panelova spojka NPT F / Trubka nerez SS316 3/8 / 1/2 F6-BFC-FNPT8-316 | |
| F6-BFC-FNPT12-316 | 3/8 | 3/4 | 65.3 | 20.6 | 16.8 | 7.1 | 17.5 | 33.3 | 19.1 | 14.5 | 11.2 | LOK panelova spojka NPT F / Trubka nerez SS316 3/8 / 3/4 F6-BFC-FNPT12-316 | |
| F8-BFC-FNPT4-316 | 1/2 | 1/4 | 60.2 | 15.0 | 22.9 | 10.4 | 22.2 | 23.8 | 23.8 | 19.4 | 12.7 | LOK panelova spojka NPT F / Trubka nerez SS316 1/2 / 1/4 F8-BFC-FNPT4-316 | |
| F8-BFC-FNPT6-316 | 1/2 | 3/8 | 61.7 | 15.0 | 22.9 | 10.4 | 22.2 | 23.8 | 23.8 | 19.4 | 12.7 | SS-810-71-6 | LOK panelova spojka NPT F / Trubka nerez SS316 1/2 / 3/8 F8-BFC-FNPT6-316 |
| F8-BFC-FNPT8-316 | 1/2 | 1/2 | 66.5 | 19.8 | 22.9 | 10.4 | 22.2 | 27.0 | 23.8 | 19.4 | 12.7 | SS-810-71-8 | LOK panelova spojka NPT F / Trubka nerez SS316 1/2 / 1/2 F8-BFC-FNPT8-316 |
| F8-BFC-FNPT12-316 | 1/2 | 3/4 | 68.1 | 20.6 | 22.9 | 10.4 | 22.2 | 33.3 | 23.8 | 19.4 | 12.7 | LOK panelova spojka NPT F / Trubka nerez SS316 1/2 / 3/4 F8-BFC-FNPT12-316 | |
| F10-BFC-FNPT6-316 | 5/8 | 3/8 | 62.5 | 15.0 | 24.4 | 12.7 | 25.4 | 23.8 | 27.0 | 22.6 | 15.1 | LOK panelova spojka NPT F / Trubka nerez SS316 5/8 / 3/8 F10-BFC-FNPT6-316 | |
| F10-BFC-FNPT8-316 | 5/8 | 1/2 | 67.3 | 19.8 | 24.4 | 12.7 | 25.4 | 27.0 | 27.0 | 22.6 | 15.1 | LOK panelova spojka NPT F / Trubka nerez SS316 5/8 / 1/2 F10-BFC-FNPT8-316 | |
| F12-BFC-FNPT8-316 | 3/4 | 1/2 | 72.2 | 19.8 | 24.4 | 15.7 | 28.6 | 27.0 | 30.2 | 25.8 | 19.8 | LOK panelova spojka NPT F / Trubka nerez SS316 3/4 / 1/2 F12-BFC-FNPT8-316 | |
| F12-BFC-FNPT12-316 | 3/4 | 3/4 | 73.7 | 20.6 | 24.4 | 15.7 | 28.6 | 33.3 | 30.2 | 25.8 | 19.8 | LOK panelova spojka NPT F / Trubka nerez SS316 3/4 / 3/4 F12-BFC-FNPT12-316 | |
| F14-BFC-FNPT12-316 | 7/8 | 3/4 | 80.8 | 20.6 | 25.9 | 18.3 | 31.8 | 33.3 | 33.3 | 29.0 | 23.8 | LOK panelova spojka NPT F / Trubka nerez SS316 7/8 / 3/4 F14-BFC-FNPT12-316 | |
| F16-BFC-FNPT12-316 | 1 | 3/4 | 84.7 | 20.6 | 31.2 | 22.4 | 38.1 | 41.3 | 41.3 | 33.7 | 23.8 | LOK panelova spojka NPT F / Trubka nerez SS316 1 / 3/4 F16-BFC-FNPT12-316 | |
| F16-BFC-FNPT16-316 | 1 | 1 | 93.5 | 25.4 | 31.2 | 22.4 | 38.1 | 41.3 | 41.3 | 33.7 | 23.8 | LOK panelova spojka NPT F / Trubka nerez SS316 1 / 1 F16-BFC-FNPT16-316 | |
| M6-BFC-FNPT2-316 | 6 | 1/8 | 47.2 | 10.4 | 15.3 | 4.8 | 14 | 16 | 16 | 11.5 | 10.2 | LOK panelova spojka NPT F / Trubka nerez SS316 6 / 1/8 M6-BFC-FNPT2-316 | |
| M6-BFC-FNPT4-316 | 6 | 1/4 | 51.8 | 15.0 | 15.3 | 4.8 | 14 | 19 | 16 | 11.5 | 10.2 | SS-6M0-71-4 | LOK panelova spojka NPT F / Trubka nerez SS316 6 / 1/4 M6-BFC-FNPT4-316 |
| M8-BFC-FNPT2-316 | 8 | 1/8 | 49.6 | 10.4 | 16.2 | 4.8 | 16 | 18 | 18 | 13.1 | 11.2 | LOK panelova spojka NPT F / Trubka nerez SS316 8 / 1/8 M8-BFC-FNPT2-316 | |
| M10-BFC-FNPT4-316 | 10 | 1/4 | 55.2 | 15.0 | 17.2 | 7.9 | 19 | 22 | 22 | 16.3 | 11.2 | LOK panelova spojka NPT F / Trubka nerez SS316 10 / 1/4 M10-BFC-FNPT4-316 | |
| M12-BFC-FNPT6-316 | 12 | 3/8 | 60.9 | 15.0 | 22.8 | 9.5 | 22 | 24 | 24 | 19.5 | 12.7 | LOK panelova spojka NPT F / Trubka nerez SS316 12 / 3/8 M12-BFC-FNPT6-316 | |
| M12-BFC-FNPT8-316 | 12 | 1/2 | 66.5 | 19.8 | 22.8 | 9.5 | 22 | 27 | 24 | 19.5 | 12.7 | SS-12M0-71-8 | LOK panelova spojka NPT F / Trubka nerez SS316 12 / 1/2 M12-BFC-FNPT8-316 |
