LOK redukcia FP Metrika / Trubka nerez SS316
LOK redukcia FP Metrika / Trubka nerez SS316
- Kód produktu: FFCFMS

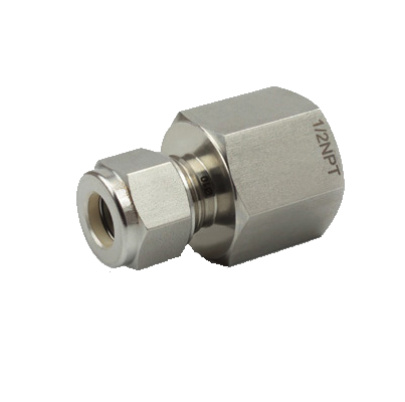

LOK redukcia FP Metrika / Trubka nerez SS316
LOK reducer Female Connector FP Metric / Pipe stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK redukcia FP Metrika / Trubka nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

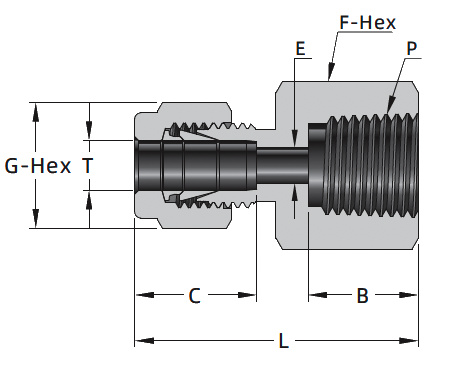

| Kod | Rozmer trubky T (Inch/mm) | Rozmer P - Metrika | L mm | B mm | C mm | E mm | G mm | F mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension P - Metric | Replacement: | Description | ||||||
| F2-FC-FMS14-316 | 1/8 | M14 x 1.5 | 32.3 | 13 | 12.7 | 2.3 | 11.1 | 19.1 | LOK redukcia FP Metrika / Trubka nerez SS316 1/8 / M14 x 1.5 F2-FC-FMS14-316 | |
| F2-FC-FMS16-316 | 1/8 | M16 x 1.5 | 33.3 | 14 | 12.7 | 2.3 | 11.1 | 22.2 | LOK redukcia FP Metrika / Trubka nerez SS316 1/8 / M16 x 1.5 F2-FC-FMS16-316 | |
| F2-FC-FMS18-316 | 1/8 | M18 x 1.5 | 34.3 | 15 | 12.7 | 2.3 | 11.1 | 25.4 | LOK redukcia FP Metrika / Trubka nerez SS316 1/8 / M18 x 1.5 F2-FC-FMS18-316 | |
| F2-FC-FMS20-316 | 1/8 | M20 x 1.5 | 35.3 | 16 | 12.7 | 2.3 | 11.1 | 27.0 | LOK redukcia FP Metrika / Trubka nerez SS316 1/8 / M20 x 1.5 F2-FC-FMS20-316 | |
| F4-FC-FMS16-316 | 1/4 | M16 x 1.5 | 35.8 | 14 | 15.2 | 4.8 | 14.3 | 22.2 | LOK redukcia FP Metrika / Trubka nerez SS316 1/4 / M16 x 1.5 F4-FC-FMS16-316 | |
| F4-FC-FMS18-316 | 1/4 | M18 x 1.5 | 36.8 | 15 | 15.2 | 4.8 | 14.3 | 25.4 | LOK redukcia FP Metrika / Trubka nerez SS316 1/4 / M18 x 1.5 F4-FC-FMS18-316 | |
| F4-FC-FMS20-316 | 1/4 | M20 x 1.5 | 37.8 | 16 | 15.2 | 4.8 | 14.3 | 27.0 | LOK redukcia FP Metrika / Trubka nerez SS316 1/4 / M20 x 1.5 F4-FC-FMS20-316 | |
| F6-FC-FMS14-316 | 3/8 | M14 x 1.5 | 37.1 | 13 | 16.8 | 7.1 | 17.5 | 19.1 | LOK redukcia FP Metrika / Trubka nerez SS316 3/8 / M14 x 1.5 F6-FC-FMS14-316 | |
| F6-FC-FMS16-316 | 3/8 | M16 x 1.5 | 37.5 | 14 | 16.8 | 7.1 | 17.5 | 22.2 | LOK redukcia FP Metrika / Trubka nerez SS316 3/8 / M16 x 1.5 F6-FC-FMS16-316 | |
| F6-FC-FMS18-316 | 3/8 | M18 x 1.5 | 38.5 | 15 | 16.8 | 7.1 | 17.5 | 25.4 | LOK redukcia FP Metrika / Trubka nerez SS316 3/8 / M18 x 1.5 F6-FC-FMS18-316 | |
| F6-FC-FMS20-316 | 3/8 | M20 x 1.5 | 39.5 | 16 | 16.8 | 7.1 | 17.5 | 27.0 | LOK redukcia FP Metrika / Trubka nerez SS316 3/8 / M20 x 1.5 F6-FC-FMS20-316 | |
| F8-FC-FMS16-316 | 1/2 | M16 x 1.5 | 41.4 | 14 | 22.9 | 8.4 | 22.2 | 22.2 | LOK redukcia FP Metrika / Trubka nerez SS316 1/2 / M16 x 1.5 F8-FC-FMS16-316 | |
| F8-FC-FMS18-316 | 1/2 | M18 x 1.5 | 42.4 | 15 | 22.9 | 9.6 | 22.2 | 25.4 | LOK redukcia FP Metrika / Trubka nerez SS316 1/2 / M18 x 1.5 F8-FC-FMS18-316 | |
| F8-FC-FMS20-316 | 1/2 | M20 x 1.5 | 43.4 | 16 | 22.9 | 10.4 | 22.2 | 27.0 | LOK redukcia FP Metrika / Trubka nerez SS316 1/2 / M20 x 1.5 F8-FC-FMS20-316 | |
| F8-FC-FMS22-316 | 1/2 | M22 x 1.5 | 44.4 | 17 | 22.9 | 10.4 | 22.2 | 27.0 | LOK redukcia FP Metrika / Trubka nerez SS316 1/2 / M22 x 1.5 F8-FC-FMS22-316 | |
| M6-FC-FMS10-316 | 6 | M10 x 1 | 32.7 | 11 | 15.3 | 4.0 | 14 | 16 | LOK redukcia FP Metrika / Trubka nerez SS316 6 / M10 x 1 M6-FC-FMS10-316 | |
| M6-FC-FMS14-316 | 6 | M14 x 1.5 | 34.7 | 13 | 15.3 | 4.8 | 14 | 19 | LOK redukcia FP Metrika / Trubka nerez SS316 6 / M14 x 1.5 M6-FC-FMS14-316 | |
| M6-FC-FMS20-316 | 6 | M20 x 1.5 | 37.7 | 16 | 15.3 | 4.8 | 14 | 27 | LOK redukcia FP Metrika / Trubka nerez SS316 6 / M20 x 1.5 M6-FC-FMS20-316 | |
| M8-FC-FMS8-316 | 8 | M8 x 1 | 31.6 | 9 | 16.2 | 3.2 | 16 | 14 | LOK redukcia FP Metrika / Trubka nerez SS316 8 / M8 x 1 M8-FC-FMS8-316 | |
| M8-FC-FMS10-316 | 8 | M10 x 1 | 33.6 | 11 | 16.2 | 4.0 | 16 | 16 | LOK redukcia FP Metrika / Trubka nerez SS316 8 / M10 x 1 M8-FC-FMS10-316 | |
| M8-FC-FMS14-316 | 8 | M14 x 1.5 | 35.6 | 13 | 16.2 | 6.0 | 16 | 19 | LOK redukcia FP Metrika / Trubka nerez SS316 8 / M14 x 1.5 M8-FC-FMS14-316 | |
| M8-FC-FMS20-316 | 8 | M20 x 1.5 | 38.6 | 16 | 16.2 | 6.4 | 16 | 27 | LOK redukcia FP Metrika / Trubka nerez SS316 8 / M20 x 1.5 M8-FC-FMS20-316 | |
| M10-FC-FMS16-316 | 10 | M16 x 1.5 | 38.1 | 14 | 17.2 | 7.9 | 19 | 22 | LOK redukcia FP Metrika / Trubka nerez SS316 10 / M16 x 1.5 M10-FC-FMS16-316 | |
| M12-FC-FMS20-316 | 12 | M20 x 1.5 | 44.9 | 16 | 22.8 | 9.5 | 22 | 27 | LOK redukcia FP Metrika / Trubka nerez SS316 12 / M20 x 1.5 M12-FC-FMS20-316 | |
| M14-FC-FMS10-316 | 14 | M10 x 1 | 42.5 | 11 | 24.4 | 4.0 | 25 | 24 | LOK redukcia FP Metrika / Trubka nerez SS316 14 / M10 x 1 M14-FC-FMS10-316 | |
| M14-FC-FMS20-316 | 14 | M20 x 1.5 | 44.9 | 16 | 24.4 | 10.8 | 25 | 27 | LOK redukcia FP Metrika / Trubka nerez SS316 14 / M20 x 1.5 M14-FC-FMS20-316 | |
| M14-FC-FMS22-316 | 14 | M22 x 1.5 | 45.9 | 17 | 24.4 | 11.1 | 25 | 27 | LOK redukcia FP Metrika / Trubka nerez SS316 14 / M22 x 1.5 M14-FC-FMS22-316 | |
| M16-FC-FMS20-316 | 16 | M20 x 1.5 | 44.9 | 16 | 24.4 | 10.8 | 26 | 27 | LOK redukcia FP Metrika / Trubka nerez SS316 16 / M20 x 1.5 M16-FC-FMS20-316 | |
| M20-FC-FMS20-316 | 20 | M20 x 1.5 | 46.5 | 16 | 26.0 | 10.8 | 32 | 30 | LOK redukcia FP Metrika / Trubka nerez SS316 20 / M20 x 1.5 M20-FC-FMS20-316 | |
| M25-FC-FMS27-316 | 25 | M27 x 2 | 54.4 | 18 | 31.3 | 16.1 | 38 | 35 | LOK redukcia FP Metrika / Trubka nerez SS316 25 / M27 x 2 M25-FC-FMS27-316 |
