LOK redukcia FP BSPP / Trubka nerez SS316
LOK redukcia FP BSPP / Trubka nerez SS316
- Kód produktu: FFCFBP
LOK redukcia FP BSPP / Trubka nerez SS316
LOK reducer Female Connector FP BSPP / Pipe stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK redukcia FP BSPP / Trubka nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

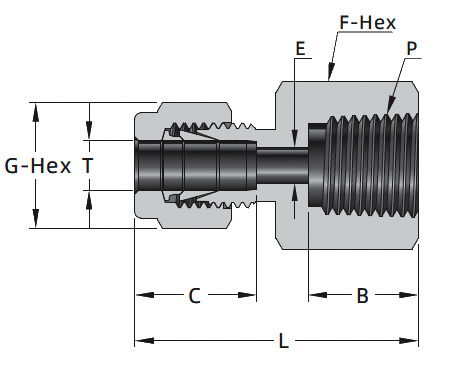

| Kod | Rozmer trubky T (Inch/mm) | Rozmer P - BSPP | L mm | B mm | C mm | E mm | G mm | F mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension P - BSPP | Replacement: | Description | ||||||
| F2-FC-FBP4-316 | 1/8 | 1/4 | 35.3 | 12.9 | 12.7 | 2.3 | 11.1 | 19.1 | LOK redukcia FP BSPP / Trubka nerez SS316 1/8 / 1/4 F2-FC-FBP4-316 | |
| F2-FC-FBP6-316 | 1/8 | 3/8 | 38.7 | 14.2 | 12.7 | 2.3 | 11.1 | 23.8 | LOK redukcia FP BSPP / Trubka nerez SS316 1/8 / 3/8 F2-FC-FBP6-316 | |
| F4-FC-FBP4-316 | 1/4 | 1/4 | 37.6 | 12.9 | 15.2 | 4.8 | 14.3 | 19.1 | SS-400-7-4RJ | LOK redukcia FP BSPP / Trubka nerez SS316 1/4 / 1/4 F4-FC-FBP4-316 |
| F4-FC-FBP6-316 | 1/4 | 3/8 | 37.6 | 14.2 | 15.2 | 4.8 | 14.3 | 23.8 | SS-400-7-6RJ | LOK redukcia FP BSPP / Trubka nerez SS316 1/4 / 3/8 F4-FC-FBP6-316 |
| F4-FC-FBP8-316 | 1/4 | 1/2 | 43.4 | 18.8 | 15.2 | 4.8 | 14.3 | 27.0 | SS-400-7-8RJ | LOK redukcia FP BSPP / Trubka nerez SS316 1/4 / 1/2 F4-FC-FBP8-316 |
| F5-FC-FBP4-316 | 5/16 | 1/4 | 38.4 | 12.9 | 16.3 | 5.6 | 15.9 | 19.1 | SS-500-7-4RJ | LOK redukcia FP BSPP / Trubka nerez SS316 5/16 / 1/4 F5-FC-FBP4-316 |
| F5-FC-FBP6-316 | 5/16 | 3/8 | 39.2 | 14.2 | 16.3 | 6.4 | 15.9 | 23.8 | LOK redukcia FP BSPP / Trubka nerez SS316 5/16 / 3/8 F5-FC-FBP6-316 | |
| F5-FC-FBP8-316 | 5/16 | 1/2 | 40.9 | 18.8 | 16.3 | 7.1 | 15.9 | 27.0 | SS-500-7-8RJ | LOK redukcia FP BSPP / Trubka nerez SS316 5/16 / 1/2 F5-FC-FBP8-316 |
| F6-FC-FBP4-316 | 3/8 | 1/4 | 39.1 | 12.9 | 16.8 | 5.6 | 17.5 | 19.1 | SS-600-7-4RJ | LOK redukcia FP BSPP / Trubka nerez SS316 3/8 / 1/4 F6-FC-FBP4-316 |
| F6-FC-FBP6-316 | 3/8 | 3/8 | 38.6 | 14.2 | 16.8 | 6.4 | 17.5 | 23.8 | SS-600-7-6RJ | LOK redukcia FP BSPP / Trubka nerez SS316 3/8 / 3/8 F6-FC-FBP6-316 |
| F6-FC-FBP8-316 | 3/8 | 1/2 | 41.9 | 18.8 | 16.8 | 7.1 | 17.5 | 27.0 | SS-600-7-8RJ | LOK redukcia FP BSPP / Trubka nerez SS316 3/8 / 1/2 F6-FC-FBP8-316 |
| F8-FC-FBP4-316 | 1/2 | 1/4 | 41.9 | 12.9 | 22.9 | 5.6 | 22.2 | 22.2 | SS-810-7-4RJ | LOK redukcia FP BSPP / Trubka nerez SS316 1/2 / 1/4 F8-FC-FBP4-316 |
| F8-FC-FBP6-316 | 1/2 | 3/8 | 44.5 | 14.2 | 22.9 | 6.4 | 22.2 | 23.8 | SS-810-7-6BJ | LOK redukcia FP BSPP / Trubka nerez SS316 1/2 / 3/8 F8-FC-FBP6-316 |
| F8-FC-FBP8-316 | 1/2 | 1/2 | 48.3 | 18.8 | 22.9 | 7.1 | 22.2 | 27.0 | SS-810-7-8RJ | LOK redukcia FP BSPP / Trubka nerez SS316 1/2 / 1/2 F8-FC-FBP8-316 |
| M3-FC-FBP4-316 | 3 | 1/4 | 35.3 | 12.9 | 12.9 | 2.4 | 12 | 19 | LOK redukcia FP BSPP / Trubka nerez SS316 3 / 1/4 M3-FC-FBP4-316 | |
| M6-FC-FBP4-316 | 6 | 1/4 | 37.6 | 12.9 | 15.3 | 4.8 | 14 | 19 | SS-6M0-7-4RJ | LOK redukcia FP BSPP / Trubka nerez SS316 6 / 1/4 M6-FC-FBP4-316 |
| M6-FC-FBP6-316 | 6 | 3/8 | 37.6 | 14.2 | 15.3 | 4.8 | 14 | 24 | SS-6M0-7-6BJ | LOK redukcia FP BSPP / Trubka nerez SS316 6 / 3/8 M6-FC-FBP6-316 |
| M6-FC-FBP8-316 | 6 | 1/2 | 43.5 | 18.8 | 15.3 | 4.8 | 14 | 27 | SS-6M0-7-8RJ | LOK redukcia FP BSPP / Trubka nerez SS316 6 / 1/2 M6-FC-FBP8-316 |
| M8-FC-FBP4-316 | 8 | 1/4 | 38.5 | 12.9 | 16.2 | 6.4 | 16 | 19 | SS-8M0-7-4RJ | LOK redukcia FP BSPP / Trubka nerez SS316 8 / 1/4 M8-FC-FBP4-316 |
| M8-FC-FBP6-316 | 8 | 3/8 | 36.2 | 14.2 | 16.2 | 6.4 | 16 | 24 | SS-8M0-7-6RJ | LOK redukcia FP BSPP / Trubka nerez SS316 8 / 3/8 M8-FC-FBP6-316 |
| M8-FC-FBP8-316 | 8 | 1/2 | 41.0 | 18.8 | 16.2 | 6.4 | 16 | 27 | SS-8M0-7-8RJ | LOK redukcia FP BSPP / Trubka nerez SS316 8 / 1/2 M8-FC-FBP8-316 |
| M10-FC-FBP4-316 | 10 | 1/4 | 39.4 | 12.9 | 17.2 | 5.9 | 19 | 19 | SS-10M0-7-4BJ | LOK redukcia FP BSPP / Trubka nerez SS316 10 / 1/4 M10-FC-FBP4-316 |
| M10-FC-FBP6-316 | 10 | 3/8 | 38.8 | 14.2 | 17.2 | 7.9 | 19 | 24 | SS-10M0-7-6BJ | LOK redukcia FP BSPP / Trubka nerez SS316 10 / 3/8 M10-FC-FBP6-316 |
| M10-FC-FBP8-316 | 10 | 1/2 | 42.1 | 18.8 | 17.2 | 7.9 | 19 | 27 | SS-10M0-7-8BJ | LOK redukcia FP BSPP / Trubka nerez SS316 10 / 1/2 M10-FC-FBP8-316 |
| M12-FC-FBP4-316 | 12 | 1/4 | 41.9 | 12.9 | 22.8 | 5.9 | 22 | 22 | SS-12M0-7-4RJ | LOK redukcia FP BSPP / Trubka nerez SS316 12 / 1/4 M12-FC-FBP4-316 |
| M12-FC-FBP6-316 | 12 | 3/8 | 44.4 | 14.2 | 22.8 | 7.9 | 22 | 24 | SS-12M0-7-6RJ | LOK redukcia FP BSPP / Trubka nerez SS316 12 / 3/8 M12-FC-FBP6-316 |
| M12-FC-FBP8-316 | 12 | 1/2 | 48.2 | 18.8 | 22.8 | 9.5 | 22 | 27 | SS-12M0-7-8RJ | LOK redukcia FP BSPP / Trubka nerez SS316 12 / 1/2 M12-FC-FBP8-316 |
| M20-FC-FBP8-316 | 20 | 1/2 | 54.3 | 18.8 | 26.0 | 11.9 | 32 | 30 | LOK redukcia FP BSPP / Trubka nerez SS316 20 / 1/2 M20-FC-FBP8-316 | |
| M22-FC-FBP8-316 | 22 | 1/2 | 54.3 | 18.8 | 26.0 | 11.9 | 32 | 30 | LOK redukcia FP BSPP / Trubka nerez SS316 22 / 1/2 M22-FC-FBP8-316 |
