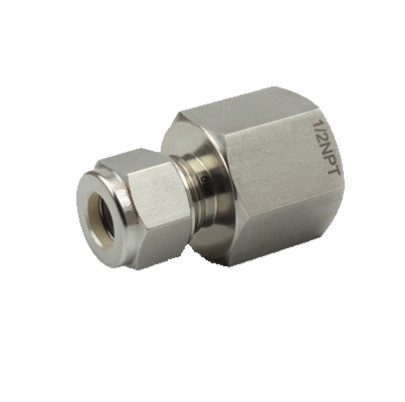

LOK redukcia FP BSPT / Trubka nerez SS316

LOK reducer Female Connector FP BSPT / Pipe stainless steel SS316



LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.





Tieto spojky su s dvojprstencovym systemom. Nase LOK redukcia FP BSPT / Trubka nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

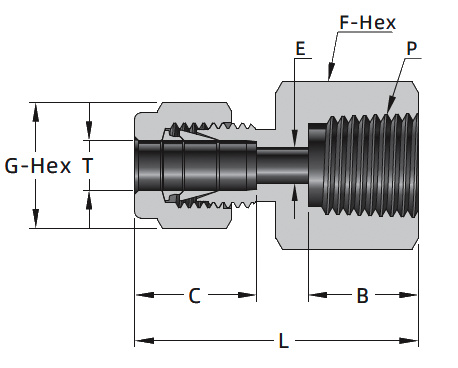

Kod Rozmer trubky T (Inch/mm) Rozmer P - BSPT L mm B mm C mm E mm G mm F mm Nahrada za: Nazov
Code Dimension tube T (Inch/mm) Dimension P - BSPT Replacement: Description
F4-FC-FBT2-316 1/4 1/8 31.2 10.4 15.2 4.8 14.3 14.3 SS-400-7-2RT LOK redukcia FP BSPT / Trubka nerez SS316 1/4 / 1/8 F4-FC-FBT2-316
F4-FC-FBT4-316 1/4 1/4 35.8 15.0 15.2 4.8 14.3 19.1 SS-400-7-4BT LOK redukcia FP BSPT / Trubka nerez SS316 1/4 / 1/4 F4-FC-FBT4-316
F4-FC-FBT6-316 1/4 3/8 37.6 15.0 15.2 4.8 14.3 22.2 SS-400-7-6RT LOK redukcia FP BSPT / Trubka nerez SS316 1/4 / 3/8 F4-FC-FBT6-316
F4-FC-FBT8-316 1/4 1/2 42.4 19.8 15.2 4.8 14.3 27.0 SS-400-7-8RT LOK redukcia FP BSPT / Trubka nerez SS316 1/4 / 1/2 F4-FC-FBT8-316
F6-FC-FBT4-316 3/8 1/4 37.6 15.0 16.8 7.1 17.5 19.1 SS-600-7-4RT LOK redukcia FP BSPT / Trubka nerez SS316 3/8 / 1/4 F6-FC-FBT4-316
F6-FC-FBT6-316 3/8 3/8 39.1 15.0 16.8 7.1 17.5 22.2 SS-600-7-6BT LOK redukcia FP BSPT / Trubka nerez SS316 3/8 / 3/8 F6-FC-FBT6-316
F6-FC-FBT8-316 3/8 1/2 43.9 19.8 16.8 7.1 17.5 27.0 SS-600-7-8RT LOK redukcia FP BSPT / Trubka nerez SS316 3/8 / 1/2 F6-FC-FBT8-316
F8-FC-FBT4-316 1/2 1/4 40.4 15.0 22.9 10.4 22.2 20.6 SS-810-7-4BT LOK redukcia FP BSPT / Trubka nerez SS316 1/2 / 1/4 F8-FC-FBT4-316
F8-FC-FBT6-316 1/2 3/8 41.9 15.0 22.9 10.4 22.2 22.2 SS-810-7-6BT LOK redukcia FP BSPT / Trubka nerez SS316 1/2 / 3/8 F8-FC-FBT6-316
F8-FC-FBT8-316 1/2 1/2 46.7 19.8 22.9 10.4 22.2 27.0 SS-810-7-8RT LOK redukcia FP BSPT / Trubka nerez SS316 1/2 / 1/2 F8-FC-FBT8-316
M3-FC-FBT2-316 3 1/8 28.7 10.4 12.9 2.4 12 14 SS-3M0-7-2RT LOK redukcia FP BSPT / Trubka nerez SS316 3 / 1/8 M3-FC-FBT2-316
M6-FC-FBT2-316 6 1/8 31.3 10.4 15.3 4.8 14 14 SS-6M0-7-2RT LOK redukcia FP BSPT / Trubka nerez SS316 6 / 1/8 M6-FC-FBT2-316
M6-FC-FBT4-316 6 1/4 35.8 15.0 15.3 4.8 14 19 SS-6M0-7-4RT LOK redukcia FP BSPT / Trubka nerez SS316 6 / 1/4 M6-FC-FBT4-316
M6-FC-FBT6-316 6 3/8 36.9 15.0 15.3 4.8 14 22 SS-6M0-7-6BT LOK redukcia FP BSPT / Trubka nerez SS316 6 / 3/8 M6-FC-FBT6-316
M6-FC-FBT8-316 6 1/2 42.5 19.8 15.3 4.8 14 27 SS-6M0-7-8RT LOK redukcia FP BSPT / Trubka nerez SS316 6 / 1/2 M6-FC-FBT8-316
M8-FC-FBT2-316 8 1/8 32.1 10.4 16.2 6.4 16 15 SS-8M0-7-2RT LOK redukcia FP BSPT / Trubka nerez SS316 8 / 1/8 M8-FC-FBT2-316
M8-FC-FBT4-316 8 1/4 37.0 15.0 16.2 6.4 16 19 SS-8M0-7-4RT LOK redukcia FP BSPT / Trubka nerez SS316 8 / 1/4 M8-FC-FBT4-316
M8-FC-FBT6-316 8 3/8 38.5 15.0 16.2 6.4 16 22 SS-8M0-7-6RT LOK redukcia FP BSPT / Trubka nerez SS316 8 / 3/8 M8-FC-FBT6-316
M8-FC-FBT8-316 8 1/2 43.3 19.8 16.2 6.4 16 27 SS-8M0-7-8RT LOK redukcia FP BSPT / Trubka nerez SS316 8 / 1/2 M8-FC-FBT8-316
M10-FC-FBT2-316 10 1/8 33.0 10.4 17.2 7.9 19 18 SS-10M0-7-2RT LOK redukcia FP BSPT / Trubka nerez SS316 10 / 1/8 M10-FC-FBT2-316
M10-FC-FBT4-316 10 1/4 37.8 15.0 17.2 7.9 19 19 SS-10M0-7-4RT LOK redukcia FP BSPT / Trubka nerez SS316 10 / 1/4 M10-FC-FBT4-316
M10-FC-FBT6-316 10 3/8 39.4 15.0 17.2 7.9 19 22 SS-10M0-7-6RT LOK redukcia FP BSPT / Trubka nerez SS316 10 / 3/8 M10-FC-FBT6-316
M10-FC-FBT8-316 10 1/2 44.2 19.8 17.2 7.9 19 27 SS-10M0-7-8RT LOK redukcia FP BSPT / Trubka nerez SS316 10 / 1/2 M10-FC-FBT8-316
M12-FC-FBT2-316 12 1/8 35.5 10.4 22.8 8.3 22 22 SS-12M0-7-2RT LOK redukcia FP BSPT / Trubka nerez SS316 12 / 1/8 M12-FC-FBT2-316
M12-FC-FBT4-316 12 1/4 40.3 15.0 22.8 9.5 22 22 SS-12M0-7-4RT LOK redukcia FP BSPT / Trubka nerez SS316 12 / 1/4 M12-FC-FBT4-316
M12-FC-FBT6-316 12 3/8 41.9 15.0 22.8 9.5 22 22 SS-12M0-7-6RT LOK redukcia FP BSPT / Trubka nerez SS316 12 / 3/8 M12-FC-FBT6-316
M12-FC-FBT8-316 12 1/2 46.7 19.8 22.8 9.5 22 27 SS-12M0-7-8BT LOK redukcia FP BSPT / Trubka nerez SS316 12 / 1/2 M12-FC-FBT8-316
M12-FC-FBT12-316 12 3/4 49.0 20.6 22.8 9.5 22 35 SS-12M0-7-12RT LOK redukcia FP BSPT / Trubka nerez SS316 12 / 3/4 M12-FC-FBT12-316
M15-FC-FBT8-316 15 1/2 46.7 19.8 24.4 11.9 25 27 SS-15M0-7-8BT LOK redukcia FP BSPT / Trubka nerez SS316 15 / 1/2 M15-FC-FBT8-316
M16-FC-FBT8-316 16 1/2 48.4 19.8 24.4 11.9 25 27   LOK redukcia FP BSPT / Trubka nerez SS316 16 / 1/2 M16-FC-FBT8-316
M16-FC-FBT12-316 16 3/4 49.7 20.6 24.4 12.7 25 35   LOK redukcia FP BSPT / Trubka nerez SS316 16 / 3/4 M16-FC-FBT12-316
M20-FC-FBT8-316 20 1/2 47.9 19.8 26.0 11.9 32 30 SS-20M0-7-8BT LOK redukcia FP BSPT / Trubka nerez SS316 20 / 1/2 M20-FC-FBT8-316
M20-FC-FBT12-316 20 3/4 49.7 20.6 26.0 15.9 32 35 SS-20M0-7-12RT LOK redukcia FP BSPT / Trubka nerez SS316 20 / 3/4 M20-FC-FBT12-316
M22-FC-FBT12-316 22 3/4 49.7 20.6 26.0 15.9 32 35 SS-22M0-7-12RT LOK redukcia FP BSPT / Trubka nerez SS316 22 / 3/4 M22-FC-FBT12-316
M22-FC-FBT16-316 22 1 57.9 25.4 26.0 18.3 32 41 SS-22M0-7-16RT LOK redukcia FP BSPT / Trubka nerez SS316 22 / 1 M22-FC-FBT16-316
M25-FC-FBT12-316 25 3/4 53.4 20.6 31.3 15.9 38 35 SS-25M0-7-12BT LOK redukcia FP BSPT / Trubka nerez SS316 25 / 3/4 M25-FC-FBT12-316
M25-FC-FBT16-316 25 1 62.3 25.4 31.3 21.8 38 41 SS-25M0-7-16RT LOK redukcia FP BSPT / Trubka nerez SS316 25 / 1 M25-FC-FBT16-316
