LOK redukcia FP NPT / Trubka nerez SS316
LOK redukcia FP NPT / Trubka nerez SS316
- Kód produktu: FFCFNPT

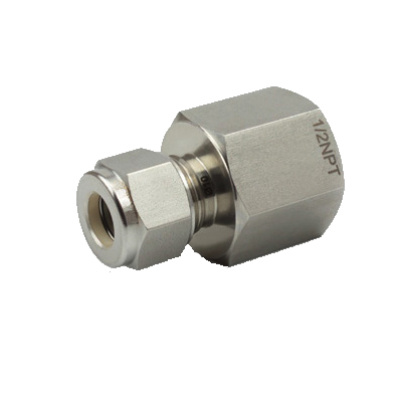

LOK redukcia FP NPT / Trubka nerez SS316
LOK reducer Female Connector FP NPT / Pipe stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK redukcia FP NPT / Trubka nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

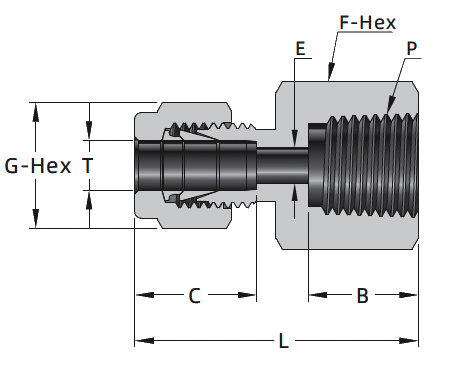

| Kod | Rozmer trubky T (Inch/mm) | Rozmer P - NPT | L mm | B mm | C mm | E mm | G mm | F mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension P - NPT | Replacement: | Description | ||||||
| F1-FC-FNPT1-316 | 1/16 | 1/16 | 23.6 | 9.9 | 8.6 | 1.3 | 7.9 | 11.1 | SS -100-7-1 | LOK redukcia FP NPT / Trubka nerez SS316 1/16 / 1/16 F1-FC-FNPT1-316 |
| F1-FC-FNPT2-316 | 1/16 | 1/8 | 24.4 | 10.4 | 8.6 | 1.3 | 7.9 | 14.3 | SS -100-7-2 | LOK redukcia FP NPT / Trubka nerez SS316 1/16 / 1/8 F1-FC-FNPT2-316 |
| F2-FC-FNPT2-316 | 1/8 | 1/8 | 28.7 | 10.4 | 12.7 | 2.3 | 11.1 | 14.3 | SS -200-7-2 | LOK redukcia FP NPT / Trubka nerez SS316 1/8 / 1/8 F2-FC-FNPT2-316 |
| F2-FC-FNPT4-316 | 1/8 | 1/4 | 33.5 | 15.0 | 12.7 | 2.3 | 11.1 | 19.1 | SS -200-7-4 | LOK redukcia FP NPT / Trubka nerez SS316 1/8 / 1/4 F2-FC-FNPT4-316 |
| F3-FC-FNPT2-316 | 3/16 | 1/8 | 29.7 | 10.4 | 13.7 | 3.0 | 12.7 | 14.3 | SS -300-7-2 | LOK redukcia FP NPT / Trubka nerez SS316 3/16 / 1/8 F3-FC-FNPT2-316 |
| F4-FC-FNPT2-316 | 1/4 | 1/8 | 31.2 | 10.4 | 15.2 | 4.8 | 14.3 | 14.3 | SS -400-7-2 | LOK redukcia FP NPT / Trubka nerez SS316 1/4 / 1/8 F4-FC-FNPT2-316 |
| F4-FC-FNPT4-316 | 1/4 | 1/4 | 35.8 | 15.0 | 15.2 | 4.8 | 14.3 | 19.1 | SS -400-7-4 | LOK redukcia FP NPT / Trubka nerez SS316 1/4 / 1/4 F4-FC-FNPT4-316 |
| F4-FC-FNPT6-316 | 1/4 | 3/8 | 37.6 | 15.0 | 15.2 | 4.8 | 14.3 | 22.2 | SS -400-7-6 | LOK redukcia FP NPT / Trubka nerez SS316 1/4 / 3/8 F4-FC-FNPT6-316 |
| F4-FC-FNPT8-316 | 1/4 | 1/2 | 42.4 | 19.8 | 15.2 | 4.8 | 14.3 | 27.0 | SS -400-7-8 | LOK redukcia FP NPT / Trubka nerez SS316 1/4 / 1/2 F4-FC-FNPT8-316 |
| F5-FC-FNPT2-316 | 5/16 | 1/8 | 32.0 | 10.4 | 16.3 | 6.4 | 15.9 | 14.3 | SS -500-7-2 | LOK redukcia FP NPT / Trubka nerez SS316 5/16 / 1/8 F5-FC-FNPT2-316 |
| F5-FC-FNPT4-316 | 5/16 | 1/4 | 36.8 | 15.0 | 16.3 | 6.4 | 15.9 | 19.1 | SS -500-7-4 | LOK redukcia FP NPT / Trubka nerez SS316 5/16 / 1/4 F5-FC-FNPT4-316 |
| F6-FC-FNPT2-316 | 3/8 | 1/8 | 32.8 | 10.4 | 16.8 | 7.1 | 17.5 | 15.9 | SS -600-7-2 | LOK redukcia FP NPT / Trubka nerez SS316 3/8 / 1/8 F6-FC-FNPT2-316 |
| F6-FC-FNPT4-316 | 3/8 | 1/4 | 37.6 | 15.0 | 16.8 | 7.1 | 17.5 | 19.1 | SS -600-7-4 | LOK redukcia FP NPT / Trubka nerez SS316 3/8 / 1/4 F6-FC-FNPT4-316 |
| F6-FC-FNPT6-316 | 3/8 | 3/8 | 39.1 | 15.0 | 16.8 | 7.1 | 17.5 | 22.2 | SS -600-7-6 | LOK redukcia FP NPT / Trubka nerez SS316 3/8 / 3/8 F6-FC-FNPT6-316 |
| F6-FC-FNPT8-316 | 3/8 | 1/2 | 43.9 | 19.8 | 16.8 | 7.1 | 17.5 | 27.0 | SS -600-7-8 | LOK redukcia FP NPT / Trubka nerez SS316 3/8 / 1/2 F6-FC-FNPT8-316 |
| F6-FC-FNPT12-316 | 3/8 | 3/4 | 47.8 | 20.6 | 16.8 | 7.1 | 17.5 | 33.3 | SS -600-7-12 | LOK redukcia FP NPT / Trubka nerez SS316 3/8 / 3/4 F6-FC-FNPT12-316 |
| F8-FC-FNPT4-316 | 1/2 | 1/4 | 40.4 | 15.0 | 22.9 | 10.4 | 22.2 | 20.6 | SS -810-7-4 | LOK redukcia FP NPT / Trubka nerez SS316 1/2 / 1/4 F8-FC-FNPT4-316 |
| F8-FC-FNPT6-316 | 1/2 | 3/8 | 41.9 | 15.0 | 22.9 | 10.4 | 22.2 | 22.2 | SS -810-7-6 | LOK redukcia FP NPT / Trubka nerez SS316 1/2 / 3/8 F8-FC-FNPT6-316 |
| F8-FC-FNPT8-316 | 1/2 | 1/2 | 46.7 | 19.8 | 22.9 | 10.4 | 22.2 | 27.0 | SS -810-7-8 | LOK redukcia FP NPT / Trubka nerez SS316 1/2 / 1/2 F8-FC-FNPT8-316 |
| F8-FC-FNPT12-316 | 1/2 | 3/4 | 48.3 | 20.6 | 22.9 | 10.4 | 22.2 | 33.3 | SS -810-7-12 | LOK redukcia FP NPT / Trubka nerez SS316 1/2 / 3/4 F8-FC-FNPT12-316 |
| F10-FC-FNPT6-316 | 5/8 | 3/8 | 41.9 | 15.0 | 24.4 | 12.7 | 25.4 | 23.8 | SS -1010-7-6 | LOK redukcia FP NPT / Trubka nerez SS316 5/8 / 3/8 F10-FC-FNPT6-316 |
| F10-FC-FNPT8-316 | 5/8 | 1/2 | 46.7 | 19.8 | 24.4 | 12.7 | 25.4 | 27.0 | SS -1010-7-8 | LOK redukcia FP NPT / Trubka nerez SS316 5/8 / 1/2 F10-FC-FNPT8-316 |
| F12-FC-FNPT8-316 | 3/4 | 1/2 | 46.7 | 19.8 | 24.4 | 15.7 | 28.6 | 27.0 | SS -1210-7-8 | LOK redukcia FP NPT / Trubka nerez SS316 3/4 / 1/2 F12-FC-FNPT8-316 |
| F12-FC-FNPT12-316 | 3/4 | 3/4 | 48.3 | 20.6 | 24.4 | 15.7 | 28.6 | 33.3 | SS -1210-7-12 | LOK redukcia FP NPT / Trubka nerez SS316 3/4 / 3/4 F12-FC-FNPT12-316 |
| F14-FC-FNPT12-316 | 7/8 | 3/4 | 49.8 | 20.6 | 25.9 | 18.3 | 31.8 | 33.3 | SS -1410-7-12 | LOK redukcia FP NPT / Trubka nerez SS316 7/8 / 3/4 F14-FC-FNPT12-316 |
| F16-FC-FNPT12-316 | 1 | 3/4 | 53.3 | 20.6 | 31.2 | 22.4 | 38.1 | 34.9 | SS -1610-7-12 | LOK redukcia FP NPT / Trubka nerez SS316 1 / 3/4 F16-FC-FNPT12-316 |
| F16-FC-FNPT16-316 | 1 | 1 | 62.2 | 25.4 | 31.2 | 22.4 | 38.1 | 41.3 | SS -1610-7-16 | LOK redukcia FP NPT / Trubka nerez SS316 1 / 1 F16-FC-FNPT16-316 |
| F20-FC-FNPT20-316 | 1 1/4 | 1 1/4 | 74.7 | 25.4 | 41.1 | 27.7 | 47.6 | 54.0 | SS -2000-7-20 | LOK redukcia FP NPT / Trubka nerez SS316 1 1/4 / 1 1/4 F20-FC-FNPT20-316 |
| F24-FC-FNPT24-316 | 1 1/2 | 1 1/2 | 83.3 | 27.7 | 50.0 | 36.3 | 57.2 | 60.3 | SS -2400-7-24 | LOK redukcia FP NPT / Trubka nerez SS316 1 1/2 / 1 1/2 F24-FC-FNPT24-316 |
| M3-FC-FNPT2-316 | 3 | 1/8 | 28.7 | 10.4 | 12.9 | 2.4 | 12 | 14 | SS -3M0-7-2 | LOK redukcia FP NPT / Trubka nerez SS316 3 / 1/8 M3-FC-FNPT2-316 |
| M3-FC-FNPT4-316 | 3 | 1/4 | 33.5 | 15.0 | 12.9 | 2.4 | 12 | 19 | SS -3M0-7-4 | LOK redukcia FP NPT / Trubka nerez SS316 3 / 1/4 M3-FC-FNPT4-316 |
| M4-FC-FNPT2-316 | 4 | 1/8 | 29.7 | 10.4 | 13.7 | 2.4 | 12 | 14 | SS -4M0-7-2 | LOK redukcia FP NPT / Trubka nerez SS316 4 / 1/8 M4-FC-FNPT2-316 |
| M6-FC-FNPT2-316 | 6 | 1/8 | 31.3 | 10.4 | 15.3 | 4.8 | 14 | 14 | SS -6M0-7-2 | LOK redukcia FP NPT / Trubka nerez SS316 6 / 1/8 M6-FC-FNPT2-316 |
| M6-FC-FNPT4-316 | 6 | 1/4 | 35.8 | 15.0 | 15.3 | 4.8 | 14 | 19 | SS -6M0-7-4 | LOK redukcia FP NPT / Trubka nerez SS316 6 / 1/4 M6-FC-FNPT4-316 |
| M6-FC-FNPT6-316 | 6 | 3/8 | 37.7 | 15.0 | 15.3 | 4.8 | 14 | 22 | SS -6M0-7-6 | LOK redukcia FP NPT / Trubka nerez SS316 6 / 3/8 M6-FC-FNPT6-316 |
| M6-FC-FNPT8-316 | 6 | 1/2 | 42.5 | 19.8 | 15.3 | 4.8 | 14 | 27 | SS -6M0-7-8 | LOK redukcia FP NPT / Trubka nerez SS316 6 / 1/2 M6-FC-FNPT8-316 |
| M8-FC-FNPT2-316 | 8 | 1/8 | 32.1 | 10.4 | 16.2 | 6.4 | 16 | 15 | SS -8M0-7-2 | LOK redukcia FP NPT / Trubka nerez SS316 8 / 1/8 M8-FC-FNPT2-316 |
| M8-FC-FNPT4-316 | 8 | 1/4 | 37.0 | 15.0 | 16.2 | 6.4 | 16 | 19 | SS -8M0-7-4 | LOK redukcia FP NPT / Trubka nerez SS316 8 / 1/4 M8-FC-FNPT4-316 |
| M8-FC-FNPT6-316 | 8 | 3/8 | 38.5 | 15.0 | 16.2 | 6.4 | 16 | 22 | SS -8M0-7-6 | LOK redukcia FP NPT / Trubka nerez SS316 8 / 3/8 M8-FC-FNPT6-316 |
| M8-FC-FNPT8-316 | 8 | 1/2 | 43.3 | 19.8 | 16.2 | 6.4 | 16 | 27 | SS -8M0-7-8 | LOK redukcia FP NPT / Trubka nerez SS316 8 / 1/2 M8-FC-FNPT8-316 |
| M10-FC-FNPT2-316 | 10 | 1/8 | 33.0 | 10.4 | 17.2 | 6.4 | 19 | 18 | LOK redukcia FP NPT / Trubka nerez SS316 10 / 1/8 M10-FC-FNPT2-316 | |
| M10-FC-FNPT4-316 | 10 | 1/4 | 37.8 | 15.0 | 17.2 | 7.9 | 19 | 19 | SS -10M0-7-4 | LOK redukcia FP NPT / Trubka nerez SS316 10 / 1/4 M10-FC-FNPT4-316 |
| M10-FC-FNPT6-316 | 10 | 3/8 | 39.4 | 15.0 | 17.2 | 7.9 | 19 | 22 | SS -10M0-7-6 | LOK redukcia FP NPT / Trubka nerez SS316 10 / 3/8 M10-FC-FNPT6-316 |
| M10-FC-FNPT8-316 | 10 | 1/2 | 44.2 | 19.8 | 17.2 | 7.9 | 19 | 27 | SS -10M0-7-8 | LOK redukcia FP NPT / Trubka nerez SS316 10 / 1/2 M10-FC-FNPT8-316 |
| M12-FC-FNPT4-316 | 12 | 1/4 | 40.3 | 15.0 | 22.8 | 7.9 | 22 | 22 | SS -12M0-7-4 | LOK redukcia FP NPT / Trubka nerez SS316 12 / 1/4 M12-FC-FNPT4-316 |
| M12-FC-FNPT6-316 | 12 | 3/8 | 41.9 | 15.0 | 22.8 | 9.5 | 22 | 22 | SS -12M0-7-6 | LOK redukcia FP NPT / Trubka nerez SS316 12 / 3/8 M12-FC-FNPT6-316 |
| M12-FC-FNPT8-316 | 12 | 1/2 | 46.7 | 19.8 | 22.8 | 9.5 | 22 | 27 | SS -12M0-7-8 | LOK redukcia FP NPT / Trubka nerez SS316 12 / 1/2 M12-FC-FNPT8-316 |
| M12-FC-FNPT12-316 | 12 | 3/4 | 49.7 | 20.6 | 22.8 | 9.5 | 22 | 35 | LOK redukcia FP NPT / Trubka nerez SS316 12 / 3/4 M12-FC-FNPT12-316 | |
| M14-FC-FNPT12-316 | 14 | 3/4 | 49.7 | 20.6 | 24.4 | 11.1 | 25 | 35 | LOK redukcia FP NPT / Trubka nerez SS316 14 / 3/4 M14-FC-FNPT12-316 | |
| M15-FC-FNPT8-316 | 15 | 1/2 | 46.7 | 19.8 | 24.4 | 11.9 | 25 | 27 | SS -15M0-7-8 | LOK redukcia FP NPT / Trubka nerez SS316 15 / 1/2 M15-FC-FNPT8-316 |
| M16-FC-FNPT6-316 | 16 | 3/8 | 41.9 | 15.0 | 24.4 | 9.5 | 25 | 27 | LOK redukcia FP NPT / Trubka nerez SS316 16 / 3/8 M16-FC-FNPT6-316 | |
| M16-FC-FNPT8-316 | 16 | 1/2 | 46.9 | 19.8 | 24.4 | 11.9 | 25 | 27 | SS -16M0-7-8 | LOK redukcia FP NPT / Trubka nerez SS316 16 / 1/2 M16-FC-FNPT8-316 |
| M20-FC-FNPT8-316 | 20 | 1/2 | 47.9 | 19.8 | 26.0 | 11.9 | 32 | 30 | SS -20M0-7-8 | LOK redukcia FP NPT / Trubka nerez SS316 20 / 1/2 M20-FC-FNPT8-316 |
| M20-FC-FNPT12-316 | 20 | 3/4 | 49.7 | 20.6 | 26.0 | 15.9 | 32 | 35 | SS -20M0-7-12 | LOK redukcia FP NPT / Trubka nerez SS316 20 / 3/4 M20-FC-FNPT12-316 |
| M22-FC-FNPT12-316 | 22 | 3/4 | 49.7 | 20.6 | 26.0 | 15.9 | 32 | 35 | SS -22M0-7-12 | LOK redukcia FP NPT / Trubka nerez SS316 22 / 3/4 M22-FC-FNPT12-316 |
| M22-FC-FNPT16-316 | 22 | 1 | 57.9 | 25.4 | 26.0 | 18.3 | 32 | 41 | SS -22M0-7-16 | LOK redukcia FP NPT / Trubka nerez SS316 22 / 1 M22-FC-FNPT16-316 |
| M25-FC-FNPT12-316 | 25 | 3/4 | 53.4 | 20.6 | 31.3 | 15.9 | 38 | 35 | SS -25M0-7-12 | LOK redukcia FP NPT / Trubka nerez SS316 25 / 3/4 M25-FC-FNPT12-316 |
| M25-FC-FNPT16-316 | 25 | 1 | 62.3 | 25.4 | 31.3 | 21.8 | 38 | 41 | SS -25M0-7-16 | LOK redukcia FP NPT / Trubka nerez SS316 25 / 1 M25-FC-FNPT16-316 |
