LOK spojka priechodza NPT / Trubka nerez SS316
LOK spojka priechodza NPT / Trubka nerez SS316
- Kód produktu: FTCNPT

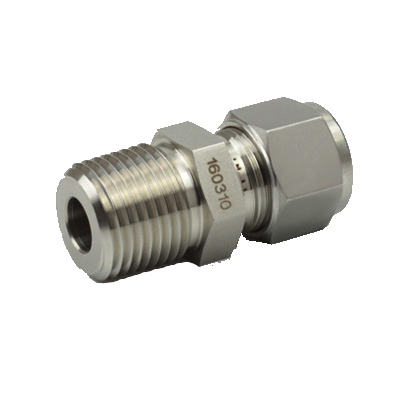

LOK spojka priechodza NPT / Trubka nerez SS316
LOK union thermocouple NPT / Tube stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK spojky priechodze NPT / Trubka nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

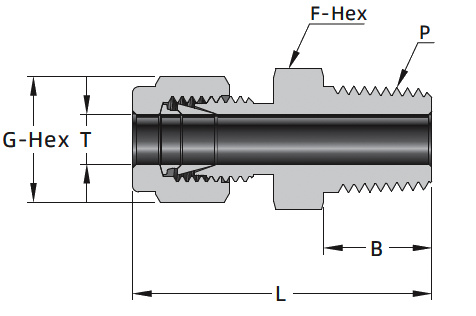

| Kod | Rozmer trubky T (Inch/mm) | Rozmer P - NPT | L mm | B mm | G mm | F mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension P - NPT | Replacement: | Description | ||||
| F1-TC-NPT1-316 | 1/16 | 1/16 | 23.9 | 9.7 | 7.9 | 7.9 | SS-100-1-1BT | LOK spojka priechodza NPT / Trubka nerez SS316 1/16 / 1/16 F1-MC-NPT1-316 |
| F1-TC-NPT2-316 | 1/16 | 1/8 | 26.2 | 9.7 | 7.9 | 11.1 | SS-100-1-2BT | LOK spojka priechodza NPT / Trubka nerez SS316 1/16 / 1/8 F1-MC-NPT2-316 |
| F1-TC-NPT4-316 | 1/16 | 1/4 | 31.0 | 14.2 | 7.9 | 14.3 | SS-100-1-4BT | LOK spojka priechodza NPT / Trubka nerez SS316 1/16 / 1/4 F1-MC-NPT4-316 |
| F2-TC-NPT1-316 | 1/8 | 1/16 | 29.7 | 9.7 | 11.1 | 11.1 | SS-200-1-1BT | LOK spojka priechodza NPT / Trubka nerez SS316 1/8 / 1/16 F2-MC-NPT1-316 |
| F2-TC-NPT2-316 | 1/8 | 1/8 | 30.5 | 9.7 | 11.1 | 11.1 | SS-200-1-2BT | LOK spojka priechodza NPT / Trubka nerez SS316 1/8 / 1/8 F2-MC-NPT2-316 |
| F2-TC-NPT4-316 | 1/8 | 1/4 | 35.6 | 14.2 | 11.1 | 14.3 | SS-200-1-4BT | LOK spojka priechodza NPT / Trubka nerez SS316 1/8 / 1/4 F2-MC-NPT4-316 |
| F3-TC-NPT2-316 | 3/16 | 1/8 | 31.2 | 9.7 | 12.7 | 11.1 | SS-300-1-2BT | LOK spojka priechodza NPT / Trubka nerez SS316 3/16 / 1/8 F3-MC-NPT2-316 |
| F3-TC-NPT4-316 | 3/16 | 1/4 | 36.3 | 14.2 | 12.7 | 14.3 | SS-300-1-4BT | LOK spojka priechodza NPT / Trubka nerez SS316 3/16 / 1/4 F3-MC-NPT4-316 |
| F4-TC-NPT2-316 | 1/4 | 1/8 | 32.8 | 9.7 | 14.3 | 12.7 | SS-400-1-2BT | LOK spojka priechodza NPT / Trubka nerez SS316 1/4 / 1/8 F4-MC-NPT2-316 |
| F4-TC-NPT4-316 | 1/4 | 1/4 | 37.8 | 14.2 | 14.3 | 14.3 | SS-400-1-4BT | LOK spojka priechodza NPT / Trubka nerez SS316 1/4 / 1/4 F4-MC-NPT4-316 |
| F4-TC-NPT6-316 | 1/4 | 3/8 | 38.4 | 14.2 | 14.3 | 17.5 | SS-400-1-6BT | LOK spojka priechodza NPT / Trubka nerez SS316 1/4 / 3/8 F4-MC-NPT6-316 |
| F4-TC-NPT8-316 | 1/4 | 1/2 | 44.7 | 19.1 | 14.3 | 22.2 | SS-400-1-8BT | LOK spojka priechodza NPT / Trubka nerez SS316 1/4 / 1/2 F4-MC-NPT8-316 |
| F5-TC-NPT4-316 | 5/16 | 1/4 | 38.6 | 9.7 | 15.9 | 14.3 | SS-500-1-4BT | LOK spojka priechodza NPT / Trubka nerez SS316 5/16 / 1/4 F5-MC-NPT4-316 |
| F6-TC-NPT4-316 | 3/8 | 1/4 | 39.9 | 14.2 | 17.5 | 15.9 | SS-600-1-4BT | LOK spojka priechodza NPT / Trubka nerez SS316 3/8 / 1/4 F6-MC-NPT4-316 |
| F6-TC-NPT6-316 | 3/8 | 3/8 | 39.9 | 14.2 | 17.5 | 17.5 | SS-600-1-6BT | LOK spojka priechodza NPT / Trubka nerez SS316 3/8 / 3/8 F6-MC-NPT6-316 |
| F6-TC-NPT8-316 | 3/8 | 1/2 | 46.2 | 19.1 | 17.5 | 22.2 | SS-600-1-8BT | LOK spojka priechodza NPT / Trubka nerez SS316 3/8 / 1/2 F6-MC-NPT8-316 |
| F6-TC-NPT12-316 | 3/8 | 3/4 | 47.8 | 19.1 | 17.5 | 27.0 | SS-600-1-12BT | LOK spojka priechodza NPT / Trubka nerez SS316 3/8 / 3/4 F6-MC-NPT12-316 |
| F8-TC-NPT8-316 | 1/2 | 1/2 | 49.0 | 19.1 | 22.2 | 22.2 | SS-810-1-8BT | LOK spojka priechodza NPT / Trubka nerez SS316 1/2 / 1/2 F8-MC-NPT8-316 |
| F8-TC-NPT12-316 | 1/2 | 3/4 | 50.5 | 19.1 | 22.2 | 27.0 | SS-810-1-12BT | LOK spojka priechodza NPT / Trubka nerez SS316 1/2 / 3/4 F8-MC-NPT12-316 |
| F10-TC-NPT12-316 | 5/8 | 3/4 | 50.5 | 19.1 | 25.4 | 27.0 | SS-1010-1-12BT | LOK spojka priechodza NPT / Trubka nerez SS316 5/8 / 3/4 F10-MC-NPT12-316 |
| F12-TC-NPT12-316 | 3/4 | 3/4 | 50.5 | 19.1 | 28.6 | 27.0 | SS-1210-1-12BT | LOK spojka priechodza NPT / Trubka nerez SS316 3/4 / 3/4 F12-MC-NPT12-316 |
| F16-TC-NPT16-316 | 1 | 1 | 62.2 | 23.9 | 38.1 | 34.9 | SS-1610-1-16BT | LOK spojka priechodza NPT / Trubka nerez SS316 1 / 1 F16-MC-NPT16-316 |
| M2-TC-NPT2-316 | 2 | 1/8 | 30.5 | 9.7 | 12 | 12 | SS-2M0-1-2BT | LOK spojka priechodza NPT / Trubka nerez SS316 2 / 1/8 M2-MC-NPT2-316 |
| M3-TC-NPT2-316 | 3 | 1/8 | 30.5 | 9.7 | 12 | 12 | SS_3M0-1-2BT | LOK spojka priechodza NPT / Trubka nerez SS316 3 / 1/8 M3-MC-NPT2-316 |
| M3-TC-NPT4-316 | 3 | 1/4 | 35.6 | 14.2 | 12 | 14 | SS-3M0-1-4BT | LOK spojka priechodza NPT / Trubka nerez SS316 3 / 1/4 M3-MC-NPT4-316 |
| M4-TC-NPT2-316 | 4 | 1/8 | 31.2 | 9.7 | 12 | 12 | SS-4M0-1-2BT | LOK spojka priechodza NPT / Trubka nerez SS316 4 / 1/8 M4-MC-NPT2-316 |
| M4-TC-NPT4-316 | 4 | 1/4 | 36.3 | 14.2 | 12 | 14 | SS-4M0-1-4BT | LOK spojka priechodza NPT / Trubka nerez SS316 4 / 1/4 M4-MC-NPT4-316 |
| M6-TC-NPT2-316 | 6 | 1/8 | 32.8 | 9.7 | 14 | 14 | SS-6M0-1-2BT | LOK spojka priechodza NPT / Trubka nerez SS316 6 / 1/8 M6-MC-NPT2-316 |
| M6-TC-NPT4-316 | 6 | 1/4 | 37.9 | 14.2 | 14 | 14 | SS-6M0-1-4BT | LOK spojka priechodza NPT / Trubka nerez SS316 6 / 1/4 M6-MC-NPT4-316 |
| M6-TC-NPT6-316 | 6 | 3/8 | 38.4 | 14.2 | 14 | 18 | SS-6M0-1-6BT | LOK spojka priechodza NPT / Trubka nerez SS316 6 / 3/8 M6-MC-NPT6-316 |
| M6-TC-NPT8-316 | 6 | 1/2 | 44.7 | 19.1 | 14 | 22 | SS-6M0-1-8BT | LOK spojka priechodza NPT / Trubka nerez SS316 6 / 1/2 M6-MC-NPT8-316 |
| M8-TC-NPT4-316 | 8 | 1/4 | 38.7 | 14.2 | 16 | 15 | SS-8M0-1-4BT | LOK spojka priechodza NPT / Trubka nerez SS316 8 / 1/4 M8-MC-NPT4-316 |
| M8-TC-NPT6-316 | 8 | 3/8 | 39.3 | 14.2 | 16 | 18 | SS_8M0-1-6BT | LOK spojka priechodza NPT / Trubka nerez SS316 8 / 3/8 M8-MC-NPT6-316 |
| M8-TC-NPT8-316 | 8 | 1/2 | 45.6 | 19.1 | 16 | 22 | SS-8M0-1-8BT | LOK spojka priechodza NPT / Trubka nerez SS316 8 / 1/2 M8-MC-NPT8-316 |
| M10-TC-NPT6-316 | 10 | 3/8 | 40.9 | 14.2 | 19 | 18 | SS-10M0-1-6BT | LOK spojka priechodza NPT / Trubka nerez SS316 10 / 3/8 M10-MC-NPT6-316 |
| M10-TC-NPT8-316 | 10 | 1/2 | 46.5 | 19.1 | 19 | 22 | SS-10M0-1-8BT | LOK spojka priechodza NPT / Trubka nerez SS316 10 / 1/2 M10-MC-NPT8-316 |
| M10-TC-NPT12-316 | 10 | 3/4 | 48.0 | 19.1 | 19 | 27 | SS-10M0-1-12BT | LOK spojka priechodza NPT / Trubka nerez SS316 10 / 3/4 M10-MC-NPT12-316 |
| M10-TC-NPT16-316 | 10 | 1 | 54.6 | 23.9 | 19 | 35 | LOK spojka priechodza NPT / Trubka nerez SS316 10 / 1 M10-MC-NPT16-316 | |
| M12-TC-NPT6-316 | 12 | 3/8 | 43.4 | 14.2 | 22 | 22 | SS-12M0-1-6BT | LOK spojka priechodza NPT / Trubka nerez SS316 12 / 3/8 M12-MC-NPT6-316 |
| M12-TC-NPT8-316 | 12 | 1/2 | 49.0 | 19.1 | 22 | 22 | SS-12M0-1-8BT | LOK spojka priechodza NPT / Trubka nerez SS316 12 / 1/2 M12-MC-NPT8-316 |
| M12-TC-NPT12-316 | 12 | 3/4 | 50.5 | 19.1 | 22 | 27 | SS-12M0-1-12BT | LOK spojka priechodza NPT / Trubka nerez SS316 12 / 3/4 M12-MC-NPT12-316 |
| M14-TC-NPT8-316 | 14 | 1/2 | 49.0 | 19.1 | 25 | 24 | SS-14M0-1-8BT | LOK spojka priechodza NPT / Trubka nerez SS316 14 / 1/2 M14-MC-NPT8-316 |
| M14-TC-NPT12-316 | 14 | 3/4 | 50.5 | 19.1 | 25 | 27 | LOK spojka priechodza NPT / Trubka nerez SS316 14 / 3/4 M14-MC-NPT12-316 | |
| M15-TC-NPT8-316 | 15 | 1/2 | 49.0 | 19.1 | 25 | 24 | SS-15M0-1-8BT | LOK spojka priechodza NPT / Trubka nerez SS316 15 / 1/2 M15-MC-NPT8-316 |
| M15-TC-NPT12-316 | 15 | 3/4 | 50.5 | 19.1 | 25 | 27 | LOK spojka priechodza NPT / Trubka nerez SS316 15 / 3/4 M15-MC-NPT12-316 | |
| M15-TC-NPT16-316 | 15 | 1 | 57.1 | 23.9 | 25 | 35 | LOK spojka priechodza NPT / Trubka nerez SS316 15 / 1 M15-MC-NPT16-316 | |
| M16-TC-NPT12-316 | 16 | 3/4 | 50.5 | 19.1 | 25 | 27 | SS-16M0-1-12BT | LOK spojka priechodza NPT / Trubka nerez SS316 16 / 3/4 M16-MC-NPT12-316 |
| M18-TC-NPT12-316 | 18 | 3/4 | 50.5 | 19.1 | 30 | 27 | SS-18M0-1-12BT | LOK spojka priechodza NPT / Trubka nerez SS316 18 / 3/4 M18-MC-NPT12-316 |
| M20-TC-NPT16-316 | 20 | 1 | 57.1 | 23.9 | 32 | 35 | LOK spojka priechodza NPT / Trubka nerez SS316 20 / 1 M20-MC-NPT16-316 | |
| M22-TC-NPT16-316 | 22 | 1 | 57.1 | 23.9 | 32 | 35 | SS-22M0-1-16BT | LOK spojka priechodza NPT / Trubka nerez SS316 22 / 1 M22-MC-NPT16-316 |
| M25-TC-NPT16-316 | 25 | 1 | 62.3 | 23.9 | 38 | 35 | SS-25M0-1-16BT | LOK spojka priechodza NPT / Trubka nerez SS316 25 / 1 M25-MC-NPT16-316 |
