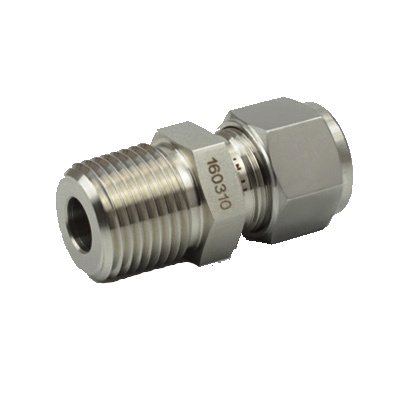

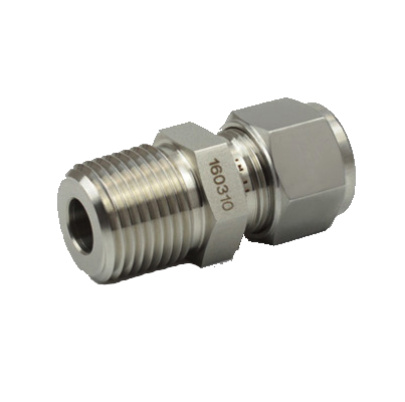

LOK spojka Metrika / Trubka nerez SS316
LOK spojka Metrika / Trubka nerez SS316
- Kód produktu: FMCMS
LOK spojka Metrika / Trubka nerez SS316
LOK union Metric / Tube stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK spojka Metrika / Trubka nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

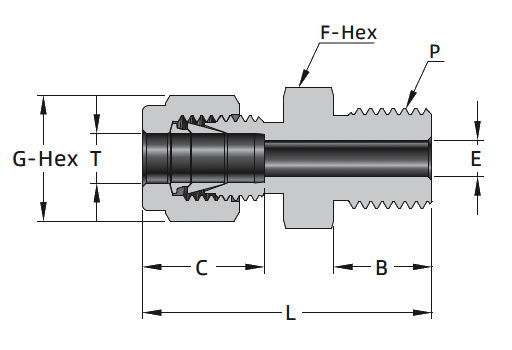

| Kod | Rozmer trubky T (Inch/mm) | Rozmer P - Metrika | L mm | B mm | C mm | E mm | G mm | F mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension P - Metric | Replacement: | Description | ||||||
| F1-MC-MS5-316 | 1/16 | M5x0.8 | 21.8 | 8 | 8.6 | 1.3 | 7.9 | 7.9 | LOK spojka Metrika / Trubka nerez SS316 1/16 / M5x0.8 F1-MC-MS5-316 | |
| F2-MC-MS14-316 | 1/8 | M14x1.5 | 34.8 | 13 | 12.7 | 2.3 | 11.1 | 15.9 | LOK spojka Metrika / Trubka nerez SS316 1/8 / M14x1.5 F2-MC-MS14-316 | |
| F2-MC-MS16-316 | 1/8 | M16x1.5 | 35.8 | 14 | 12.7 | 2.3 | 11.1 | 17.5 | LOK spojka Metrika / Trubka nerez SS316 1/8 / M16x1.5 F2-MC-MS16-316 | |
| F2-MC-MS18-316 | 1/8 | M18x1.5 | 37.2 | 15 | 12.7 | 2.3 | 11.1 | 19.1 | LOK spojka Metrika / Trubka nerez SS316 1/8 / M18x1.5 F2-MC-MS18-316 | |
| F2-MC-MS20-316 | 1/8 | M20x1.5 | 38.2 | 16 | 12.7 | 2.3 | 11.1 | 22.2 | LOK spojka Metrika / Trubka nerez SS316 1/8 / M20x1.5 F2-MC-MS20-316 | |
| F4-MC-MS14-316 | 1/4 | M14x1.5 | 36.9 | 13 | 15.2 | 4.8 | 14.3 | 15.9 | LOK spojka Metrika / Trubka nerez SS316 1/4 / M14x1.5 F4-MC-MS14-316 | |
| F4-MC-MS16-316 | 1/4 | M16x1.5 | 38.1 | 14 | 15.2 | 4.8 | 14.3 | 17.5 | LOK spojka Metrika / Trubka nerez SS316 1/4 / M16x1.5 F4-MC-MS16-316 | |
| F4-MC-MS18-316 | 1/4 | M18x1.5 | 39.5 | 15 | 15.2 | 4.8 | 14.3 | 19.1 | LOK spojka Metrika / Trubka nerez SS316 1/4 / M18x1.5 F4-MC-MS18-316 | |
| F4-MC-MS20-316 | 1/4 | M20x1.5 | 40.7 | 16 | 15.2 | 4.8 | 14.3 | 22.2 | LOK spojka Metrika / Trubka nerez SS316 1/4 / M20x1.5 F4-MC-MS20-316 | |
| F6-MC-MS10-316 | 3/8 | M10x1.0 | 36.4 | 11 | 16.8 | 4.8 | 17.5 | 15.9 | LOK spojka Metrika / Trubka nerez SS316 3/8 / M10x1.0 F6-MC-MS10-316 | |
| F6-MC-MS14-316 | 3/8 | M14x1.5 | 39.3 | 13 | 16.8 | 7.1 | 17.5 | 15.9 | LOK spojka Metrika / Trubka nerez SS316 3/8 / M14x1.5 F6-MC-MS14-316 | |
| F6-MC-MS16-316 | 3/8 | M16X1.5 | 39.7 | 14 | 16.8 | 7.1 | 17.5 | 17.5 | LOK spojka Metrika / Trubka nerez SS316 3/8 / M16X1.5 F6-MC-MS16-316 | |
| F6-MC-MS18-316 | 3/8 | M18x1.5 | 41.5 | 15 | 16.8 | 7.1 | 17.5 | 19.1 | LOK spojka Metrika / Trubka nerez SS316 3/8 / M18x1.5 F6-MC-MS18-316 | |
| F6-MC-MS20-316 | 3/8 | M20x1.5 | 42.3 | 16 | 16.8 | 7.1 | 17.5 | 22.2 | LOK spojka Metrika / Trubka nerez SS316 3/8 / M20x1.5 F6-MC-MS20-316 | |
| F8-MC-MS16-316 | 1/2 | M16x1.5 | 43.2 | 14 | 22.9 | 8.4 | 22.2 | 20.6 | LOK spojka Metrika / Trubka nerez SS316 1/2 / M16x1.5 F8-MC-MS16-316 | |
| F8-MC-MS18-316 | 1/2 | M18x1.5 | 43.7 | 15 | 22.9 | 9.6 | 22.2 | 20.6 | LOK spojka Metrika / Trubka nerez SS316 1/2 / M18x1.5 F8-MC-MS18-316 | |
| F8-MC-MS20-316 | 1/2 | M20x1.5 | 44.9 | 16 | 22.9 | 10.4 | 22.2 | 22.2 | LOK spojka Metrika / Trubka nerez SS316 1/2 / M20x1.5 F8-MC-MS20-316 | |
| F8-MC-MS22-316 | 1/2 | M22x1.5 | 47.0 | 17 | 22.9 | 10.4 | 22.2 | 23.8 | LOK spojka Metrika / Trubka nerez SS316 1/2 / M22x1.5 F8-MC-MS22-316 | |
| M6-MC-MS6-316 | 6 | M6 x 1 | 32.4 | 8 | 15.3 | 2.0 | 14 | 14 | LOK spojka Metrika / Trubka nerez SS316 6 / M6 x 1 M6-MC-MS6-316 | |
| M6-MC-MS8-316 | 6 | M8 x 1 | 32.4 | 9 | 15.3 | 3.0 | 14 | 14 | LOK spojka Metrika / Trubka nerez SS316 6 / M8 x 1 M6-MC-MS8-316 | |
| M6-MC-MS10-316 | 6 | M10 x 1 | 35.2 | 11 | 15.3 | 4.7 | 14 | 14 | LOK spojka Metrika / Trubka nerez SS316 6 / M10 x 1 M6-MC-MS10-316 | |
| M6-MC-MS12-316 | 6 | M12 x 1.5 | 36.4 | 12 | 15.3 | 4.8 | 14 | 14 | LOK spojka Metrika / Trubka nerez SS316 6 / M12 x 1.5 M6-MC-MS12-316 | |
| M6-MC-MS14-316 | 6 | M14 x 1.5 | 37.4 | 13 | 15.3 | 4.8 | 14 | 16 | LOK spojka Metrika / Trubka nerez SS316 6 / M14 x 1.5 M6-MC-MS14-316 | |
| M6-MC-MS16-316 | 6 | M16 x 1.5 | 38.4 | 14 | 15.3 | 4.8 | 14 | 18 | LOK spojka Metrika / Trubka nerez SS316 6 / M16 x 1.5 M6-MC-MS16-316 | |
| M6-MC-MS18-316 | 6 | M18 x 1.5 | 40.0 | 15 | 15.3 | 4.8 | 14 | 19 | LOK spojka Metrika / Trubka nerez SS316 6 / M18 x 1.5 M6-MC-MS18-316 | |
| M6-MC-MS20-316 | 6 | M20 x 1.5 | 41.7 | 16 | 15.3 | 4.8 | 14 | 22 | LOK spojka Metrika / Trubka nerez SS316 6 / M20 x 1.5 M6-MC-MS20-316 | |
| M8-MC-MS8-316 | 8 | M8 x 1 | 34.5 | 9 | 16.2 | 3.0 | 16 | 14 | LOK spojka Metrika / Trubka nerez SS316 8 / M8 x 1 M8-MC-MS8-316 | |
| M8-MC-MS10-316 | 8 | M10 x 1 | 35.6 | 11 | 16.2 | 4.7 | 16 | 14 | LOK spojka Metrika / Trubka nerez SS316 8 / M10 x 1 M8-MC-MS10-316 | |
| M8-MC-MS12-316 | 8 | M12 x 1.5 | 36.6 | 12 | 16.2 | 6.0 | 16 | 14 | LOK spojka Metrika / Trubka nerez SS316 8 / M12 x 1.5 M8-MC-MS12-316 | |
| M8-MC-MS14-316 | 8 | M14 x 1.5 | 37.7 | 13 | 16.2 | 6.4 | 16 | 16 | LOK spojka Metrika / Trubka nerez SS316 8 / M14 x 1.5 M8-MC-MS14-316 | |
| M8-MC-MS20-316 | 8 | M20 x 1.5 | 42.5 | 16 | 16.2 | 6.4 | 16 | 22 | LOK spojka Metrika / Trubka nerez SS316 8 / M20 x 1.5 M8-MC-MS20-316 | |
| M10-MC-MS12-316 | 10 | M12 x 1.5 | 38.7 | 12 | 17.2 | 6.0 | 19 | 18 | LOK spojka Metrika / Trubka nerez SS316 10 / M12 x 1.5 M10-MC-MS12-316 | |
| M10-MC-MS14-316 | 10 | M14 x 1.5 | 39.7 | 13 | 17.2 | 7.2 | 19 | 18 | LOK spojka Metrika / Trubka nerez SS316 10 / M14 x 1.5 M10-MC-MS14-316 | |
| M10-MC-MS20-316 | 10 | M20 x 1.5 | 43.5 | 16 | 17.2 | 7.9 | 19 | 22 | LOK spojka Metrika / Trubka nerez SS316 10 / M20 x 1.5 M10-MC-MS20-316 | |
| M12-MC-MS12-316 | 12 | M12 x 1.5 | 41.2 | 12 | 22.8 | 6.0 | 22 | 22 | LOK spojka Metrika / Trubka nerez SS316 12 / M12 x 1.5 M12-MC-MS12-316 | |
| M12-MC-MS16-316 | 12 | M16 x 1.5 | 43.2 | 14 | 22.8 | 9.5 | 22 | 22 | LOK spojka Metrika / Trubka nerez SS316 12 / M16 x 1.5 M12-MC-MS16-316 | |
| M12-MC-MS18-316 | 12 | M18 x 1.5 | 44.2 | 15 | 22.8 | 9.5 | 22 | 22 | LOK spojka Metrika / Trubka nerez SS316 12 / M18 x 1.5 M12-MC-MS18-316 | |
| M12-MC-MS20-316 | 12 | M20 x 1.5 | 45.2 | 16 | 22.8 | 9.5 | 22 | 22 | LOK spojka Metrika / Trubka nerez SS316 12 / M20 x 1.5 M12-MC-MS20-316 | |
| M14-MC-MS14-316 | 14 | M14 x 1.5 | 42.5 | 13 | 24.4 | 7.2 | 25 | 24 | LOK spojka Metrika / Trubka nerez SS316 14 / M14 x 1.5 M14-MC-MS14-316 | |
| M14-MC-MS16-316 | 14 | M16 x 1.5 | 43.9 | 14 | 24.4 | 8.4 | 25 | 24 | LOK spojka Metrika / Trubka nerez SS316 14 / M16 x 1.5 M14-MC-MS16-316 | |
| M14-MC-MS20-316 | 14 | M20 x 1.5 | 45.1 | 16 | 24.4 | 10.8 | 25 | 24 | LOK spojka Metrika / Trubka nerez SS316 14 / M20 x 1.5 M14-MC-MS20-316 | |
| M16-MC-MS20-316 | 16 | M20 x 1.5 | 46.1 | 16 | 24.4 | 10.8 | 25 | 24 | LOK spojka Metrika / Trubka nerez SS316 16 / M20 x 1.5 M16-MC-MS20-316 | |
| M18-MC-MS20-316 | 18 | M20 x 1.5 | 47.5 | 16 | 24.4 | 10.8 | 30 | 27 | LOK spojka Metrika / Trubka nerez SS316 18 / M20 x 1.5 M18-MC-MS20-316 | |
| M18-MC-MS22-316 | 18 | M22 x 1.5 | 48.5 | 17 | 24.4 | 12 | 30 | 27 | LOK spojka Metrika / Trubka nerez SS316 18 / M22 x 1.5 M18-MC-MS22-316 | |
| M20-MC-MS20-316 | 20 | M20 x 1.5 | 49.5 | 16 | 26.0 | 10.8 | 32 | 30 | LOK spojka Metrika / Trubka nerez SS316 20 / M20 x 1.5 M20-MC-MS20-316 | |
| M22-MC-MS24-316 | 22 | M24 x 1.5 | 50.5 | 17 | 26.0 | 14.4 | 32 | 30 | LOK spojka Metrika / Trubka nerez SS316 22 / M24 x 1.5 M22-MC-MS24-316 | |
| M25-MC-MS27-316 | 25 | M27 x 2 | 57.0 | 18 | 31.3 | 16.1 | 38 | 35 | LOK spojka Metrika / Trubka nerez SS316 25 / M27 x 2 M25-MC-MS27-316 |
