LOK Hrdlo Metrika / Trubka Forma A nerez SS316
LOK Hrdlo Metrika / Trubka Forma A nerez SS316
- Kód produktu: FMCBSMS

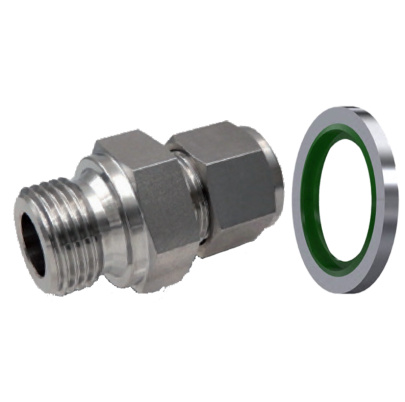

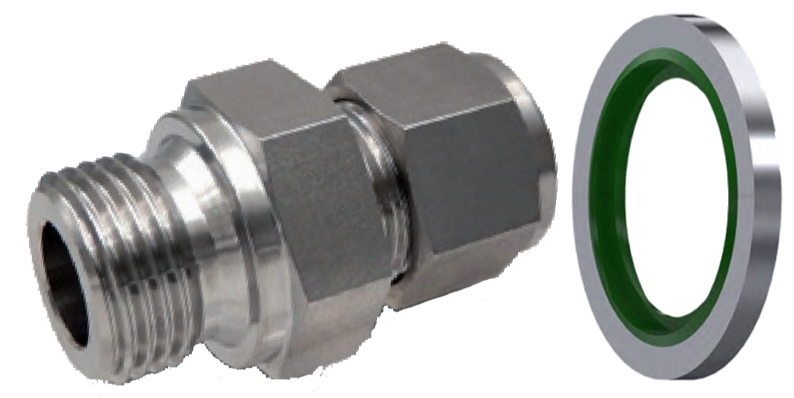

LOK Hrdlo Metrika / Trubka Forma A nerez SS316
LOK coupling Metric / Tube Form A stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK Hrdlo Metrika / Trubka Forma A nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.
HRDLO SA DODAVA BEZ TESNENIA !!! Pokial chcete aj tesnenie, prosim kontaktujte nás.

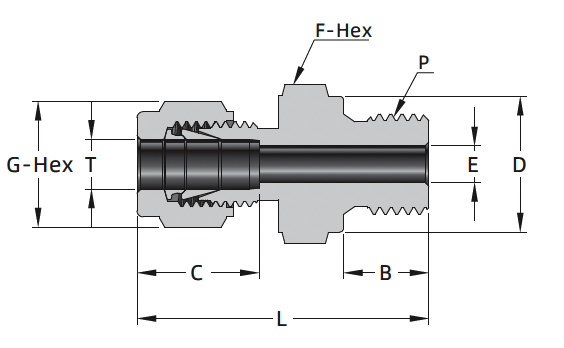

| Kod | Rozmer trubky T (Inch/mm) | Rozmer P - Metrika | L mm | B mm | C mm | E mm | G mm | F mm | D mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension P - Metric | Replacement: | Description | |||||||
| F2-MC-BSMS14-316 | 1/8 | M14x1.5 | 36.7 | 12 | 12.7 | 2.3 | 11.1 | 19.1 | 19 | LOK spojka Metrika / Trubka Forma A nerez SS316 1/8 / M14x1.5 F2-MC-BSMS14-316 | |
| F2-MC-BSMS16-316 | 1/8 | M16x1.5 | 37.5 | 12 | 12.7 | 2.3 | 11.1 | 22.2 | 21 | LOK spojka Metrika / Trubka Forma A nerez SS316 1/8 / M16x1.5 F2-MC-BSMS16-316 | |
| F2-MC-BSMS18-316 | 1/8 | M18x1.5 | 38.5 | 12 | 12.7 | 2.3 | 11.1 | 23.8 | 23 | LOK spojka Metrika / Trubka Forma A nerez SS316 1/8 / M18x1.5 F2-MC-BSMS18-316 | |
| F2-MC-BSMS20-316 | 1/8 | M20x1.5 | 41.1 | 14 | 12.7 | 2.3 | 11.1 | 25.4 | 25 | LOK spojka Metrika / Trubka Forma A nerez SS316 1/8 / M20x1.5 F2-MC-BSMS20-316 | |
| F4-MC-BSMS14-316 | 1/4 | M14x1.5 | 38.0 | 12 | 15.2 | 4.8 | 14.3 | 19.1 | 19 | LOK spojka Metrika / Trubka Forma A nerez SS316 1/4 / M14x1.5 F4-MC-BSMS14-316 | |
| F4-MC-BSMS16-316 | 1/4 | M16x1.5 | 39.9 | 12 | 15.2 | 4.8 | 14.3 | 22.2 | 21 | LOK spojka Metrika / Trubka Forma A nerez SS316 1/4 / M16x1.5 F4-MC-BSMS16-316 | |
| F4-MC-BSMS18-316 | 1/4 | M18x1.5 | 40.8 | 12 | 15.2 | 4.8 | 14.3 | 23.8 | 23 | LOK spojka Metrika / Trubka Forma A nerez SS316 1/4 / M18x1.5 F4-MC-BSMS18-316 | |
| F4-MC-BSMS20-316 | 1/4 | M20x1.5 | 43.6 | 14 | 15.2 | 4.8 | 14.3 | 25.4 | 25 | LOK spojka Metrika / Trubka Forma A nerez SS316 1/4 / M20x1.5 F4-MC-BSMS20-316 | |
| F6-MC-BSMS14-316 | 3/8 | M14x1.5 | 41.3 | 12 | 16.8 | 7.1 | 17.5 | 19.1 | 19 | LOK spojka Metrika / Trubka Forma A nerez SS316 3/8 / M14x1.5 F6-MC-BSMS14-316 | |
| F6-MC-BSMS16-316 | 3/8 | M16x1.5 | 41.3 | 12 | 16.8 | 7.1 | 17.5 | 22.2 | 21 | LOK spojka Metrika / Trubka Forma A nerez SS316 3/8 / M16x1.5 F6-MC-BSMS16-316 | |
| F6-MC-BSMS18-316 | 3/8 | M18x1.5 | 41.8 | 12 | 16.8 | 7.1 | 17.5 | 23.8 | 23 | LOK spojka Metrika / Trubka Forma A nerez SS316 3/8 / M18x1.5 F6-MC-BSMS18-316 | |
| F6-MC-BSMS20-316 | 3/8 | M20x1.5 | 45.1 | 14 | 16.8 | 7.1 | 17.5 | 25.4 | 25 | LOK spojka Metrika / Trubka Forma A nerez SS316 3/8 / M20x1.5 F6-MC-BSMS20-316 | |
| F8-MC-BSMS16-316 | 1/2 | M16x1.5 | 44.0 | 12 | 22.9 | 9.0 | 22.2 | 22.2 | 21 | LOK spojka Metrika / Trubka Forma A nerez SS316 1/2 / M16x1.5 F8-MC-BSMS16-316 | |
| F8-MC-BSMS18-316 | 1/2 | M18x1.5 | 44.0 | 12 | 22.9 | 10.0 | 22.2 | 23.8 | 23 | LOK spojka Metrika / Trubka Forma A nerez SS316 1/2 / M18x1.5 F8-MC-BSMS18-316 | |
| F8-MC-BSMS20-316 | 1/2 | M20x1.5 | 47.9 | 14 | 22.9 | 10.4 | 22.2 | 25.4 | 25 | LOK spojka Metrika / Trubka Forma A nerez SS316 1/2 / M20x1.5 F8-MC-BSMS20-316 | |
| F8-MC-BSMS22-316 | 1/2 | M22x1.5 | 48.5 | 14 | 22.9 | 10.4 | 22.2 | 27.0 | 27 | LOK spojka Metrika / Trubka Forma A nerez SS316 1/2 / M22x1.5 F8-MC-BSMS22-316 | |
| M6-MC-BSMS8-316 | 6 | M8 x 1 | 33.3 | 8 | 15.3 | 3.0 | 14 | 14 | 12 | LOK spojka Metrika / Trubka Forma A nerez SS316 6 / M8 x 1 M6-MC-BSMS8-316 | |
| M6-MC-BSMS10-316 | 6 | M10 x 1 | 36.3 | 8 | 15.3 | 4.0 | 14 | 14 | 14 | SS-6M0-1-M10X1.0RS | LOK spojka Metrika / Trubka Forma A nerez SS316 6 / M10 x 1 M6-MC-BSMS10-316 |
| M6-MC-BSMS12-316 | 6 | M12 x 1.5 | 38.2 | 12 | 15.3 | 4.8 | 14 | 18 | 17 | LOK spojka Metrika / Trubka Forma A nerez SS316 6 / M12 x 1.5 M6-MC-BSMS12-316 | |
| M6-MC-BSMS14-316 | 6 | M14 x 1.5 | 39.7 | 12 | 15.3 | 4.8 | 14 | 19 | 19 | LOK spojka Metrika / Trubka Forma A nerez SS316 6 / M14 x 1.5 M6-MC-BSMS14-316 | |
| M8-MC-BSMS8-316 | 8 | M8 x 1 | 34.1 | 8 | 16.2 | 3.0 | 16 | 14 | 12 | LOK spojka Metrika / Trubka Forma A nerez SS316 8 / M8 x 1 M8-MC-BSMS8-316 | |
| M8-MC-BSMS10-316 | 8 | M10 x 1 | 34.1 | 8 | 16.2 | 5.0 | 16 | 15 | 14 | LOK spojka Metrika / Trubka Forma A nerez SS316 8 / M10 x 1 M8-MC-BSMS10-316 | |
| M8-MC-BSMS12-316 | 8 | M12 x 1.5 | 40.4 | 12 | 16.2 | 6.0 | 16 | 18 | 17 | LOK spojka Metrika / Trubka Forma A nerez SS316 8 / M12 x 1.5 M8-MC-BSMS12-316 | |
| M8-MC-BSMS14-316 | 8 | M14 x 1.5 | 40.4 | 12 | 16.2 | 6.4 | 16 | 19 | 19 | LOK spojka Metrika / Trubka Forma A nerez SS316 8 / M14 x 1.5 M8-MC-BSMS14-316 | |
| M10-MC-BSM512-316 | 10 | M12 x 1.5 | 40.7 | 12 | 17.2 | 6.0 | 19 | 18 | 17 | LOK spojka Metrika / Trubka Forma A nerez SS316 10 / M12 x 1.5 M10-MC-BSM512-316 | |
| M10-MC-BSMS14-316 | 10 | M14 x 1.5 | 41.5 | 12 | 17.2 | 7.9 | 19 | 19 | 19 | LOK spojka Metrika / Trubka Forma A nerez SS316 10 / M14 x 1.5 M10-MC-BSMS14-316 | |
| M12-MC-BSMS16-316 | 12 | M16 x 1.5 | 45.5 | 12 | 22.8 | 9 | 22 | 22 | 21 | SS-12M0-1-M16X1.5RS | LOK spojka Metrika / Trubka Forma A nerez SS316 12 / M16 x 1.5 M12-MC-BSMS16-316 |
| M12-MC-BSMS20-316 | 12 | M20 x 1.5 | 48.0 | 14 | 22.8 | 9.5 | 22 | 25 | 25 | LOK spojka Metrika / Trubka Forma A nerez SS316 12 / M20 x 1.5 M12-MC-BSMS20-316 | |
| M12-MC-BSMS22-316 | 12 | M22 x 1.5 | 49.5 | 14 | 22.8 | 9.5 | 22 | 27 | 27 | LOK spojka Metrika / Trubka Forma A nerez SS316 12 / M22 x 1.5 M12-MC-BSMS22-316 | |
| M14-MC-BSMS14-316 | 14 | M14 x 1.5 | 44.9 | 12 | 24.4 | 8 | 25 | 24 | 19 | LOK spojka Metrika / Trubka Forma A nerez SS316 14 / M14 x 1.5 M14-MC-BSMS14-316 | |
| M14-MC-BSMS20-316 | 14 | M20 x 1.5 | 48.0 | 14 | 24.4 | 11.1 | 25 | 25 | 25 | LOK spojka Metrika / Trubka Forma A nerez SS316 14 / M20 x 1.5 M14-MC-BSMS20-316 | |
| M16-MC-BSMS20-316 | 16 | M20 x 1.5 | 48.0 | 14 | 24.4 | 12 | 25 | 25 | 25 | LOK spojka Metrika / Trubka Forma A nerez SS316 16 / M20 x 1.5 M16-MC-BSMS20-316 | |
| M18-MC-BSMS20-316 | 18 | M20 x 1.5 | 48.5 | 14 | 24.4 | 12 | 30 | 27 | 25 | LOK spojka Metrika / Trubka Forma A nerez SS316 18 / M20 x 1.5 M18-MC-BSMS20-316 | |
| M20-MC-BSMS20-316 | 20 | M20 x 1.5 | 50.0 | 14 | 26.0 | 12 | 32 | 30 | 25 | LOK spojka Metrika / Trubka Forma A nerez SS316 20 / M20 x 1.5 M20-MC-BSMS20-316 | |
| M22-MC-BSMS24-316 | 22 | M24 x 1.5 | 50.5 | 14 | 26.0 | 15 | 32 | 30 | 29 | LOK spojka Metrika / Trubka Forma A nerez SS316 22 / M24 x 1.5 M22-MC-BSMS24-316 | |
| M25-MC-BSM527-316 | 25 | M27 x 2 | 57.5 | 16 | 31.3 | 16.8 | 38 | 35 | 32 | LOK spojka Metrika / Trubka Forma A nerez SS316 25 / M27 x 2 M25-MC-BSM527-316 |
