LOK spojka JIC / Trubka nerez SS316
LOK spojka JIC / Trubka nerez SS316
- Kód produktu: FMCAN

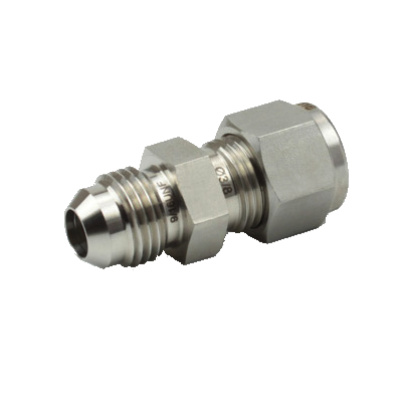

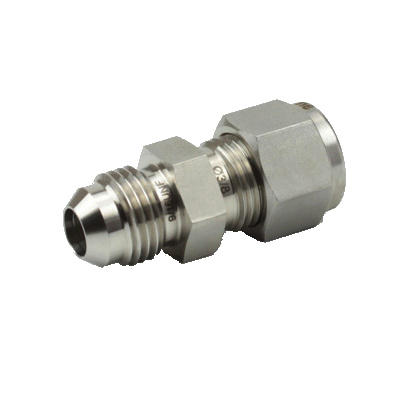

LOK spojka JIC / Trubka nerez SS316
LOK union JIC / Tube stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK spojky JIC / Trubka nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

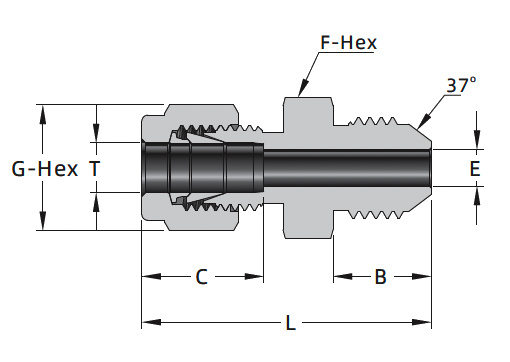

| Kod | Rozmer trubky T (Inch/mm) | Rozmer P - JIC | L mm | B mm | C mm | E mm | G mm | F mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension P - JIC | Replacement: | Description | ||||||
| F1-MC-AN2-316 | 1/16 | 1/8 | 27.2 | 11.4 | 8.6 | 1.3 | 7.9 | 0.44 | SS-100-6-2AN | LOK spojka JIC / Trubka nerez SS316 1/16 / 1/8 F1-MC-AN2-316 |
| F2-MC-AN2-316 | 1/8 | 1/8 | 32.3 | 11.4 | 12.7 | 1.5 | 11.1 | 0.44 | SS-200-6-2AN | LOK spojka JIC / Trubka nerez SS316 1/8 / 1/8 F2-MC-AN2-316 |
| F2-MC-AN4-316 | 1/8 | 1/4 | 35.1 | 14.0 | 12.7 | 2.3 | 11.1 | 0.50 | SS-200-6-4AN | LOK spojka JIC / Trubka nerez SS316 1/8 / 1/4 F2-MC-AN4-316 |
| F3-MC-AN3-316 | 3/16 | 3/16 | 33.5 | 12.2 | 13.7 | 2.3 | 12.7 | 0.44 | LOK spojka JIC / Trubka nerez SS316 3/16 / 3/16 F3-MC-AN3-316 | |
| F4-MC-AN4-316 | 1/4 | 1/4 | 37.6 | 14.0 | 15.2 | 4.3 | 14.3 | 0.50 | SS-400-6-AAN | LOK spojka JIC / Trubka nerez SS316 1/4 / 1/4 F4-MC-AN4-316 |
| F5-MC-AN5-316 | 5/16 | 5/16 | 38.4 | 14.0 | 16.2 | 5.8 | 15.9 | 0.56 | SS-500-6-5AN | LOK spojka JIC / Trubka nerez SS316 5/16 / 5/16 F5-MC-AN5-316 |
| F6-MC-AN4-316 | 3/8 | 1/4 | 39.6 | 14.0 | 16.8 | 4.3 | 17.5 | 0.63 | SS-600-6-AAN | LOK spojka JIC / Trubka nerez SS316 3/8 / 1/4 F6-MC-AN4-316 |
| F6-MC-AN6-316 | 3/8 | 3/8 | 39.6 | 14.1 | 16.8 | 7.1 | 17.5 | 0.63 | SS-600-6-6AN | LOK spojka JIC / Trubka nerez SS316 3/8 / 3/8 F6-MC-AN6-316 |
| F8-MC-AN8-316 | 1/2 | 1/2 | 46.0 | 16.7 | 22.8 | 9.9 | 22.2 | 0.81 | SS-810-6-8AN | LOK spojka JIC / Trubka nerez SS316 1/2 / 1/2 F8-MC-AN8-316 |
| F10-MC-AN10-316 | 5/8 | 5/8 | 49.0 | 19.3 | 24.5 | 12.3 | 25.4 | 0.94 | LOK spojka JIC / Trubka nerez SS316 5/8 / 5/8 F10-MC-AN10-316 | |
| F12-MC-AN12-316 | 3/4 | 3/4 | 53.3 | 21.9 | 24.4 | 15.5 | 28.6 | 1.13 | SS-1210-6-12AN | LOK spojka JIC / Trubka nerez SS316 3/4 / 3/4 F12-MC-AN12-316 |
| F16-MC-AN16-316 | 1 | 1 | 61.5 | 23.1 | 31.2 | 21.3 | 38.1 | 1.37 | SS-1610-6-16AN | LOK spojka JIC / Trubka nerez SS316 1 / 1 F16-MC-AN16-316 |
