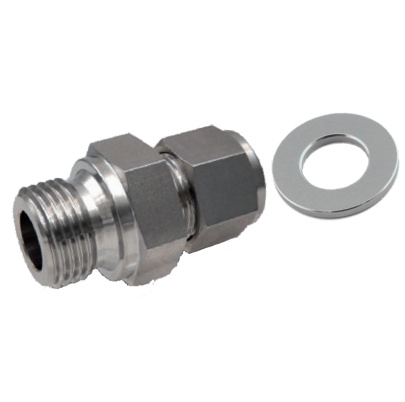

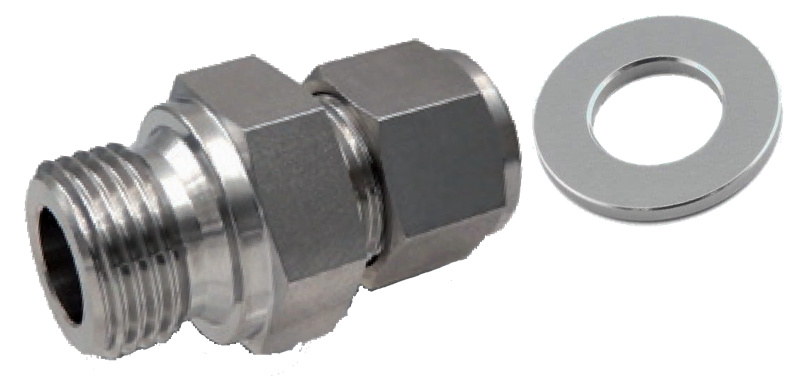

LOK Hrdlo BSPP / Trubka Forma B nerez SS316
LOK Hrdlo BSPP / Trubka Forma B nerez SS316
- Kód produktu: FMCPMBP
LOK Hrdlo BSPP / Trubka Forma B nerez SS316
LOK coupling BSPP / Tube Form B stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK Hrdlo BSPP / Trubka Forma B nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.
HRDLO SA DODAVA BEZ TESNENIA !!! Pokial chcete aj tesnenie, prosim kontaktujte nás.

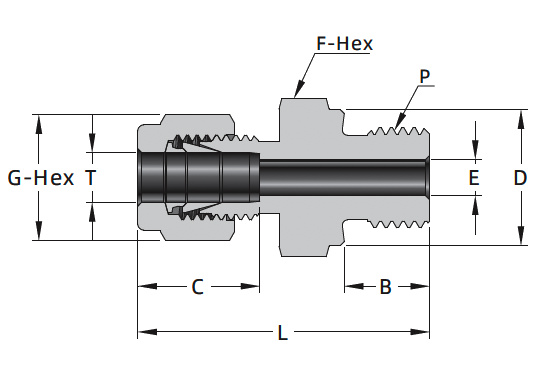

| Kod | Rozmer trubky T (Inch/mm) | Rozmer P - BSPP | L mm | B mm | C mm | E mm | G mm | F mm | D mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension P - BSPP | Replacement: | Description | |||||||
| F2-MC-PMBP2-316 | 1/8 | 1/8 | 30.0 | 7.1 | 12.7 | 2.3 | 11.1 | 14.3 | 13.7 | SS-200-1-2RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 1/8 / 1/8 F2-MC-PMBP2-316 |
| F2-MC-PMBP4-316 | 1/8 | 1/4 | 35.3 | 11.2 | 12.7 | 2.3 | 11.1 | 19.1 | 18.0 | SS-200-1-4RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 1/8 / 1/4 F2-MC-PMBP4-316 |
| F4-MC-PMBP2-316 | 1/4 | 1/8 | 32.3 | 7.1 | 15.2 | 4.1 | 14.3 | 14.3 | 13.8 | SS-400-1-2RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 1/4 / 1/8 F4-MC-PMBP2-316 |
| F4-MC-PMBP4-316 | 1/4 | 1/4 | 37.6 | 11.2 | 15.2 | 4.8 | 14.3 | 19.1 | 18.0 | SS-400-1-4RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 1/4 / 1/4 F4-MC-PMBP4-316 |
| F8-MC-PMBP6-316 | 1/2 | 3/8 | 40.4 | 11.2 | 22.9 | 7.9 | 22.2 | 22.2 | 21.8 | SS-810-1-6RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 1/2 / 3/8 F8-MC-PMBP6-316 |
| F8-MC-PMBP8-316 | 1/2 | 1/2 | 49.0 | 14.2 | 22.9 | 10.4 | 22.2 | 27.0 | 25.9 | SS-810-1-8RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 1/2 / 1/2 F8-MC-PMBP8-316 |
| F12-MC-PMBP8-316 | 3/4 | 1/2 | 49.0 | 14.2 | 24.4 | 11.9 | 28.6 | 27.0 | 25.9 | SS-1210-1-8RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 3/4 / 1/2 F12-MC-PMBP8-316 |
| F12-MC-PMBP12-316 | 3/4 | 3/4 | 52.9 | 15.7 | 24.4 | 15.7 | 28.6 | 33.3 | 32 | SS-1210-1-12RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 3/4 / 3/4 F12-MC-PMBP12-316 |
| F16-MC-PMBP16-316 | 1 | 1 | 59.9 | 18.3 | 31.2 | 19.8 | 38.1 | 41.3 | 39.1 | SS-1610-1-16RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 1 / 1 F16-MC-PMBP16-316 |
| M3-MC-PMBP2-316 | 3 | 1/8 | 30.0 | 7.1 | 12.9 | 2.4 | 12 | 14 | 13.8 | SS-3M0-1-2RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 3 / 1/8 M3-MC-PMBP2-316 |
| M3-MC-PMBP4-316 | 3 | 1/4 | 35.3 | 11.2 | 12.9 | 2.4 | 12 | 19 | 18.0 | SS-3M0-1-4RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 3 / 1/4 M3-MC-PMBP4-316 |
| M4-MC-PMBP2-316 | 4 | 1/8 | 30.7 | 7.1 | 13.7 | 2.4 | 12 | 14 | 13.8 | SS-4M0-1-2RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 4 / 1/8 M4-MC-PMBP2-316 |
| M6-MC-PMBP2-316 | 6 | 1/8 | 32.3 | 7.1 | 15.3 | 4.0 | 14 | 14 | 13.8 | SS-6M0-1-2RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 6 / 1/8 M6-MC-PMBP2-316 |
| M6-MC-PMBP4-316 | 6 | 1/4 | 37.6 | 11.2 | 15.3 | 4.8 | 14 | 19 | 18.0 | SS-6MO-1-4RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 6 / 1/4 M6-MC-PMBP4-316 |
| M6-MC-PMBP6-316 | 6 | 3/8 | 38.9 | 11.2 | 15.3 | 4.8 | 14 | 22 | 21.8 | SS-6M0-1-6RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 6 / 3/8 M6-MC-PMBP6-316 |
| M6-MC-PMBP8-316 | 6 | 1/2 | 44.7 | 14.2 | 15.3 | 4.8 | 14 | 27 | 26.0 | SS-6M0-1-8RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 6 / 1/2 M6-MC-PMBP8-316 |
| M8-MC-PMBP2-316 | 8 | 1/8 | 33.3 | 7.1 | 16.2 | 4.0 | 16 | 15 | 13.8 | SS-8M0-1-2RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 8 / 1/8 M8-MC-PMBP2-316 |
| M8-MC-PMBP4-316 | 8 | 1/4 | 38.5 | 11.2 | 16.2 | 5.9 | 16 | 19 | 18.0 | SS-8M0-1-4RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 8 / 1/4 M8-MC-PMBP4-316 |
| M8-MC-PMBP6-316 | 8 | 3/8 | 39.8 | 11.2 | 16.2 | 6.4 | 16 | 22 | 21.8 | SS-8M0-1-6RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 8 / 3/8 M8-MC-PMBP6-316 |
| M8-MC-PMBP8-316 | 8 | 1/2 | 45.6 | 14.2 | 16.2 | 6.4 | 16 | 27 | 26.0 | SS-8M0-1-8RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 8 / 1/2 M8-MC-PMBP8-316 |
| M10-MC-PMBP4-316 | 10 | 1/4 | 39.4 | 11.2 | 17.2 | 5.9 | 19 | 19 | 18.0 | SS-10M0-1-4RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 10 / 1/4 M10-MC-PMBP4-316 |
| M10-MC-PMBP6-316 | 10 | 3/8 | 40.6 | 11.2 | 17.2 | 7.9 | 19 | 22 | 21.8 | SS-10M0-1-6RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 10 / 3/8 M10-MC-PMBP6-316 |
| M10-MC-PMBP8-316 | 10 | 1/2 | 46.5 | 14.2 | 17.2 | 7.9 | 19 | 27 | 26.0 | SS-10M0-1-8RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 10 / 1/2 M10-MC-PMBP8-316 |
| M12-MC-PMBP4-316 | 12 | 1/4 | 42.6 | 11.2 | 22.8 | 5.9 | 22 | 22 | 18.0 | SS-12M0-1-4RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 12 / 1/4 M12-MC-PMBP4-316 |
| M12-MC-PMBP6-316 | 12 | 3/8 | 43.1 | 11.2 | 22.8 | 7.9 | 22 | 22 | 21.8 | SS-12M0-1-6RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 12 / 3/8 M12-MC-PMBP6-316 |
| M12-MC-PMBP8-316 | 12 | 1/2 | 49.0 | 14.2 | 22.8 | 9.5 | 22 | 27 | 26.0 | SS-12M0-1-8RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 12 / 1/2 M12-MC-PMBP8-316 |
| M12-MC-PMBP12-316 | 12 | 3/4 | 52.8 | 15.7 | 22.8 | 9.5 | 22 | 35 | 32.0 | SS-12M0-1-12RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 12 / 3/4 M12-MC-PMBP12-316 |
| M15-MC-PMBP8-316 | 15 | 1/2 | 49.0 | 14.2 | 24.4 | 11.9 | 25 | 27 | 26.0 | SS-15M0-1-8RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 15 / 1/2 M15-MC-PMBP8-316 |
| M16-MC-PMBP6-316 | 16 | 3/8 | 43.9 | 11.2 | 24.4 | 7.9 | 25 | 24 | 21.8 | SS-16M0-1-6RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 16 / 3/8 M16-MC-PMBP6-316 |
| M16-MC-PMBP8-316 | 16 | 1/2 | 49.0 | 14.2 | 24.4 | 11.9 | 25 | 27 | 26.0 | SS-16M0-1-8RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 16 / 1/2 M16-MC-PMBP8-316 |
| M18-MC-PMBP8-316 | 18 | 1/2 | 49.0 | 14.2 | 24.4 | 11.9 | 30 | 27 | 26.0 | SS-18M0-1-8RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 18 / 1/2 M18-MC-PMBP8-316 |
| M18-MC-PMBP12-316 | 18 | 3/4 | 52.8 | 15.7 | 24.4 | 15.1 | 30 | 35 | 32.0 | SS-18M0-1-12RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 18 / 3/4 M18-MC-PMBP12-316 |
| M20-MC-PMBP8-316 | 20 | 1/2 | 50.5 | 14.2 | 26.0 | 11.9 | 32 | 30 | 26.0 | SS-20M0-1-8RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 20 / 1/2 M20-MC-PMBP8-316 |
| M20-MC-PMBP12-316 | 20 | 3/4 | 52.8 | 15.7 | 26.0 | 15.9 | 32 | 35 | 32.0 | SS-20M0-1-12RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 20 / 3/4 M20-MC-PMBP12-316 |
| M22-MC-PMBP12-316 | 22 | 3/4 | 52.8 | 15.7 | 26.0 | 15.9 | 32 | 35 | 32.0 | SS-22M0-1-12RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 22 / 3/4 M22-MC-PMBP12-316 |
| M22-MC-PMBP16-316 | 22 | 1 | 55.3 | 18.3 | 26.0 | 18.3 | 32 | 41 | 39.0 | SS-22M0-1-16RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 22 / 1 M22-MC-PMBP16-316 |
| M25-MC-PMBP12-316 | 25 | 3/4 | 57.5 | 15.7 | 31.3 | 15.9 | 38 | 35 | 32.0 | SS-25M0-1-12RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 25 / 3/4 M25-MC-PMBP12-316 |
| M25-MC-PMBP16-316 | 25 | 1 | 60.1 | 18.3 | 31.3 | 19.8 | 38 | 41 | 39.0 | SS-25M0-1-16RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 25 / 1 M25-MC-PMBP16-316 |
| M28-MC-PMBP16-316 | 28 | 1 | 70.1 | 18.3 | 36.6 | 19.8 | 46 | 41 | 39.0 | SS-28M0-1-16RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 28 / 1 M28-MC-PMBP16-316 |
| M28-MC-PMBP20-316 | 28 | 1 1/4 | 73.9 | 19.8 | 36.6 | 21.8 | 46 | 50 | 49.0 | SS-28MO-1-20RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 28 / 1 1/4 M28-MC-PMBP20-316 |
| M30-MC-PMBP20-316 | 30 | 1 1/4 | 76.5 | 19.8 | 39.6 | 26.2 | 50 | 50 | 49.0 | SS-30M0-1-20RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 30 / 1 1/4 M30-MC-PMBP20-316 |
| M32-MC-PMBP20-316 | 32 | 1 1/4 | 78.9 | 19.8 | 42.0 | 28.6 | 50 | 50 | 49.0 | SS-32MO-1-20RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 32 / 1 1/4 M32-MC-PMBP20-316 |
| M38-MC-PMBP24-316 | 38 | 1 1/2 | 89.3 | 20.6 | 49.4 | 31.8 | 60 | 55 | 54.7 | SS-38M0-1-24RP | LOK Hrdlo BSPP / Trubka Forma B nerez SS316 38 / 1 1/2 M38-MC-PMBP24-316 |
