LOK L spojka navar vonkajsi nerez SS316
LOK L spojka navar vonkajsi nerez SS316
- Kód produktu: FWEPBW

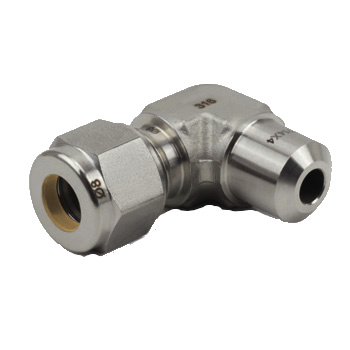

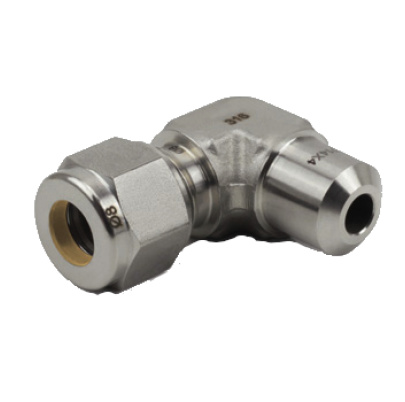

LOK L spojka navar vonkajsi nerez SS316
LOK L union weld outside stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK L spojky navar vonkajsi nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

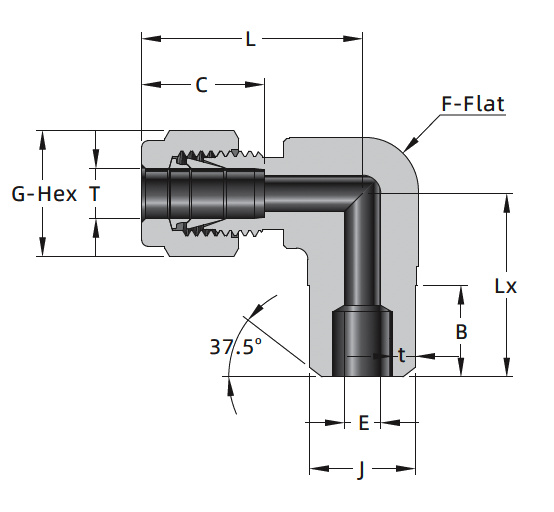

| Kod | Rozmer trubky T (Inch/mm) | Rozmer zvaranej trubky (Inch/mm) | L mm | C mm | G mm | F mm | B mm | E mm | Lx mm | J mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension weld tube (Inch/mm) | Replacement: | Description | ||||||||
| F2-WE-PBW2-316 | 1/8 | 1/8 | 23.4 | 12.7 | 11.1 | 11.1 | 9.7 | 2.3 | 18.3 | 10.3 | LOK L spojka navar vonkajsi nerez SS316 1/8 / 1/8 F2-WE-PBW2-316 | |
| F3-WE-PBW2-316 | 3/16 | 1/8 | 25.7 | 13.7 | 12.7 | 12.7 | 9.7 | 3.3 | 18.8 | 10.3 | LOK L spojka navar vonkajsi nerez SS316 3/16 / 1/8 F3-WE-PBW2-316 | |
| F4-WE-PBW2-316 | 1/4 | 1/8 | 26.9 | 15.2 | 14.3 | 12.7 | 9.7 | 4.8 | 18.8 | 10.3 | SS-400-2-2W | LOK L spojka navar vonkajsi nerez SS316 1/4 / 1/8 F4-WE-PBW2-316 |
| F4-WE-PBW4-316 | 1/4 | 1/4 | 26.9 | 15.2 | 14.3 | 12.7 | 14.2 | 4.8 | 23.4 | 13.7 | SS-400-2-4W | LOK L spojka navar vonkajsi nerez SS316 1/4 / 1/4 F4-WE-PBW4-316 |
| F6-WE-PBW4-316 | 3/8 | 1/4 | 30.5 | 16.8 | 17.5 | 15.9 | 14.2 | 7.1 | 25.4 | 13.7 | SS-600-2-4W | LOK L spojka navar vonkajsi nerez SS316 3/8 / 1/4 F6-WE-PBW4-316 |
| F8-WE-PBW6-316 | 1/2 | 3/8 | 34.8 | 22.9 | 22.2 | 19.1 | 14.2 | 10.4 | 28.8 | 17.2 | LOK L spojka navar vonkajsi nerez SS316 1/2 / 3/8 F8-WE-PBW6-316 | |
| F8-WE-PBW8-316 | 1/2 | 1/2 | 36.1 | 22.9 | 22.2 | 20.6 | 19.1 | 10.4 | 33.0 | 21.3 | SS-810-2-8W | LOK L spojka navar vonkajsi nerez SS316 1/2 / 1/2 F8-WE-PBW8-316 |
| F10-WE-PBW8-316 | 5/8 | 1/2 | 36.3 | 24.4 | 25.4 | 23.8 | 19.1 | 12.7 | 35.1 | 21.3 | LOK L spojka navar vonkajsi nerez SS316 5/8 / 1/2 F10-WE-PBW8-316 | |
| F12-WE-PBW12-316 | 3/4 | 3/4 | 39.9 | 24.4 | 28.6 | 27.0 | 19.1 | 15.7 | 36.8 | 26.7 | SS-1210-2-12W | LOK L spojka navar vonkajsi nerez SS316 3/4 / 3/4 F12-WE-PBW12-316 |
| F16-WE-PBW12-316 | 1 | 3/4 | 49.3 | 31.2 | 38.1 | 34.9 | 19.1 | 22.4 | 41.9 | 26.7 | LOK L spojka navar vonkajsi nerez SS316 1 / 3/4 F16-WE-PBW12-316 | |
| F16-WE-PBW16-316 | 1 | 1 | 49.3 | 31.2 | 38.1 | 34.9 | 20.6 | 22.4 | 46.7 | 33.4 | LOK L spojka navar vonkajsi nerez SS316 1 / 1 F16-WE-PBW16-316 |
