LOK L spojka redukovana nerez SS316
LOK L spojka redukovana nerez SS316
- Kód produktu: FUEFR

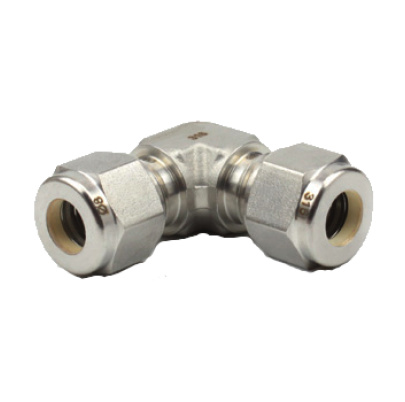

LOK L spojka redukovana nerez SS316
LOK L union reducer stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK L spojky redukovane nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

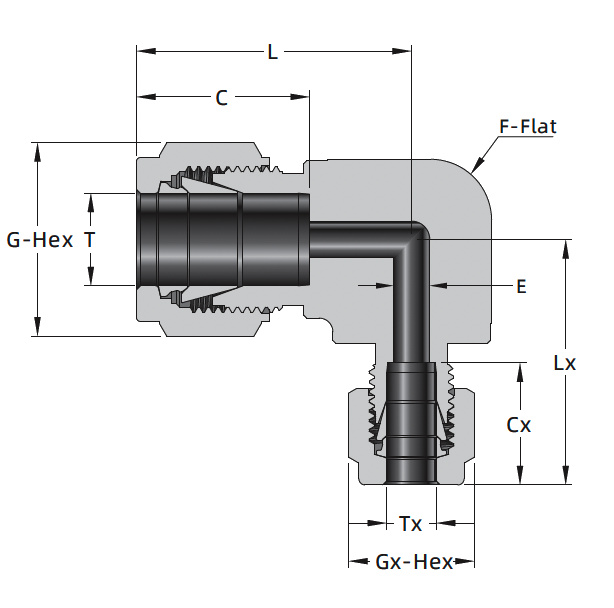

| Kod | Rozmer trubky T (Inch/mm) | Rozmer trubky Tx (Inch/mm) | L mm | C mm | G mm | F mm | E mm | Cx mm | Gx mm | Lx mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension tube Tx (Inch/mm) | Replacement: | Description | ||||||||
| F3-UE-F2-316 | 3/16 | 1/8 | 25.4 | 13.7 | 12.7 | 12.7 | 2.3 | 12.7 | 11.1 | 24.7 | LOK L spojka redukovana nerez SS316 3/16 / 1/8 F3-UE-F2-316 | |
| F4-UE-F2-316 | 1/4 | 1/8 | 26.9 | 15.2 | 14.3 | 12.7 | 2.3 | 12.7 | 11.1 | 25.4 | LOK L spojka redukovana nerez SS316 1/4 / 1/8 F4-UE-F2-316 | |
| F5-UE-F2-316 | 5/16 | 1/8 | 29.7 | 16.3 | 15.9 | 14.3 | 2.3 | 12.7 | 11.1 | 26.4 | LOK L spojka redukovana nerez SS316 5/16 / 1/8 F5-UE-F2-316 | |
| F5-UE-F4-316 | 5/16 | 1/4 | 29.7 | 16.3 | 15.9 | 14.3 | 4.8 | 15.2 | 14.3 | 29.0 | LOK L spojka redukovana nerez SS316 5/16 / 1/4 F5-UE-F4-316 | |
| F6-UE-F2-316 | 3/8 | 1/8 | 30.5 | 16.8 | 17.5 | 15.9 | 2.3 | 12.7 | 11.1 | 26.4 | LOK L spojka redukovana nerez SS316 3/8 / 1/8 F6-UE-F2-316 | |
| F6-UE-F4-316 | 3/8 | 1/4 | 30.5 | 16.8 | 17.5 | 15.9 | 4.8 | 15.2 | 14.3 | 29.0 | LOK L spojka redukovana nerez SS316 3/8 / 1/4 F6-UE-F4-316 | |
| F6-UE-F5-316 | 3/8 | 5/16 | 30.5 | 16.8 | 17.5 | 15.9 | 6.4 | 16.3 | 15.9 | 29.7 | LOK L spojka redukovana nerez SS316 3/8 / 5/16 F6-UE-F5-316 | |
| F8-UE-F4-316 | 1/2 | 1/4 | 36.1 | 22.9 | 22.2 | 20.6 | 4.8 | 15.2 | 14.3 | 32.2 | LOK L spojka redukovana nerez SS316 1/2 / 1/4 F8-UE-F4-316 | |
| F8-UE-F5-316 | 1/2 | 5/16 | 36.1 | 22.9 | 22.2 | 20.6 | 6.4 | 16.3 | 15.9 | 32.5 | LOK L spojka redukovana nerez SS316 1/2 / 5/16 F8-UE-F5-316 | |
| F8-UE-F6-316 | 1/2 | 3/8 | 36.1 | 22.9 | 22.2 | 20.6 | 7.1 | 16.8 | 17.5 | 33.6 | LOK L spojka redukovana nerez SS316 1/2 / 3/8 F8-UE-F6-316 | |
| F10-UE-F6-316 | 5/8 | 3/8 | 38.1 | 24.4 | 25.4 | 23.8 | 7.1 | 16.8 | 17.5 | 35.6 | LOK L spojka redukovana nerez SS316 5/8 / 3/8 F10-UE-F6-316 | |
| F10-UE-F8-316 | 5/8 | 1/2 | 38.1 | 24.4 | 25.4 | 23.8 | 10.4 | 22.9 | 22.2 | 38.1 | LOK L spojka redukovana nerez SS316 5/8 / 1/2 F10-UE-F8-316 | |
| F12-UE-F4-316 | 3/4 | 1/4 | 39.9 | 24.4 | 28.6 | 27.0 | 4.8 | 15.2 | 14.3 | 35.9 | LOK L spojka redukovana nerez SS316 3/4 / 1/4 F12-UE-F4-316 | |
| F12-UE-F6-316 | 3/4 | 3/8 | 39.9 | 24.4 | 28.6 | 27.0 | 7.1 | 16.8 | 17.5 | 37.4 | LOK L spojka redukovana nerez SS316 3/4 / 3/8 F12-UE-F6-316 | |
| F12-UE-F8-316 | 3/4 | 1/2 | 39.9 | 24.4 | 28.6 | 27.0 | 10.4 | 22.9 | 22.2 | 39.9 | LOK L spojka redukovana nerez SS316 3/4 / 1/2 F12-UE-F8-316 | |
| F14-UE-F4-316 | 7/8 | 1/4 | 44.7 | 25.9 | 31.8 | 34.9 | 4.8 | 15.2 | 14.3 | 40.7 | LOK L spojka redukovana nerez SS316 7/8 / 1/4 F14-UE-F4-316 | |
| F16-UE-F8-316 | 1 | 1/2 | 49.0 | 31.2 | 38.1 | 34.9 | 10.4 | 22.9 | 22.2 | 44.4 | LOK L spojka redukovana nerez SS316 1 / 1/2 F16-UE-F8-316 | |
| F16-UE-F12-316 | 1 | 3/4 | 49.0 | 31.2 | 38.1 | 34.9 | 15.7 | 24.4 | 28.6 | 44.4 | LOK L spojka redukovana nerez SS316 1 / 3/4 F16-UE-F12-316 | |
| M8-UE-M6-316 | 8 | 6 | 28.8 | 16.2 | 16 | 14.3 | 4.8 | 15.3 | 14 | 27.9 | LOK L spojka redukovana nerez SS316 8 / 6 M8-UE-M6-316 | |
| M10-UE-M8-316 | 10 | 8 | 31.5 | 17.2 | 19 | 17.5 | 6.4 | 16.2 | 16 | 30.5 | LOK L spojka redukovana nerez SS316 10 / 8 M10-UE-M8-316 | |
| M12-UE-M8-316 | 12 | 8 | 36.0 | 22.8 | 22 | 20.6 | 6.4 | 16.2 | 16 | 32.6 | LOK L spojka redukovana nerez SS316 12 / 8 M12-UE-M8-316 | |
| M14-UE-M8-316 | 14 | 8 | 38.8 | 24.4 | 25 | 23.8 | 6.4 | 16.2 | 16 | 35.4 | LOK L spojka redukovana nerez SS316 14 / 8 M14-UE-M8-316 | |
| M14-UE-M10-316 | 14 | 10 | 38.8 | 24.4 | 25 | 23.8 | 7.9 | 17 | 19 | 36.4 | LOK L spojka redukovana nerez SS316 14 / 10 M14-UE-M10-316 |
