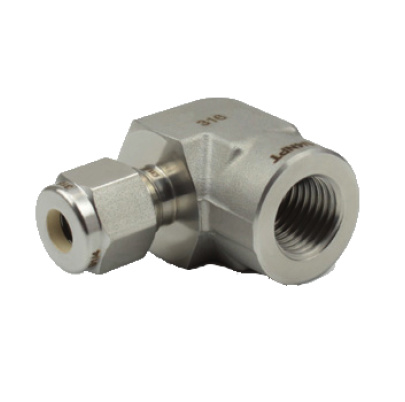

LOK L spojka F-NPT / Trubka nerez SS316
LOK L spojka F-NPT / Trubka nerez SS316
- Kód produktu: FFEFNPT
LOK L spojka F-NPT / Trubka nerez SS316
LOK L union F-NPT / Tube stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK L spojky F-NPT / Trubka nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

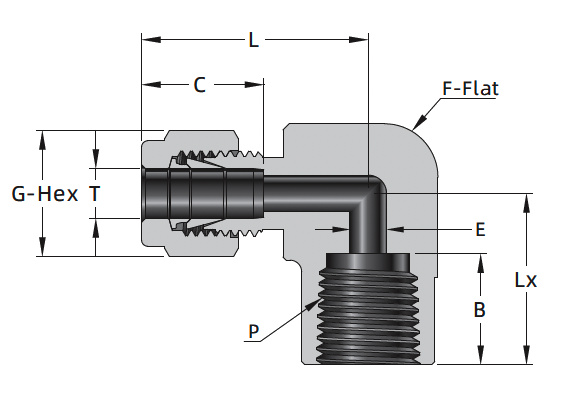

| Kod | Rozmer trubky T (Inch/mm) | Rozmer P-NPT | L mm | B mm | C mm | G mm | E mm | F mm | Lx mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension P-NPT | Replacement: | Description | |||||||
| F1-FE-FNPT1-316 | 1/16 | 1/16 | 18.0 | 9.9 | 8.6 | 7.9 | 1.3 | 11.1 | 14.2 | LOK L spojka F-NPT / Trubka nerez SS316 1/16 / 1/16 F1-FE-FNPT1-316 | |
| F1-FE-FNPT2-316 | 1/16 | 1/8 | 20.6 | 10.4 | 8.6 | 7.9 | 1.3 | 14.3 | 19.1 | LOK L spojka F-NPT / Trubka nerez SS316 1/16 / 1/8 F1-FE-FNPT2-316 | |
| F2-FE-FNPT2-316 | 1/8 | 1/8 | 24.6 | 10.4 | 12.7 | 11.1 | 2.3 | 14.3 | 19.1 | SS-200-8-2 | LOK L spojka F-NPT / Trubka nerez SS316 1/8 / 1/8 F2-FE-FNPT2-316 |
| F2-FE-FNPT4-316 | 1/8 | 1/4 | 27.4 | 15.0 | 12.7 | 11.1 | 2.3 | 17.5 | 22.4 | SS-200-8-4 | LOK L spojka F-NPT / Trubka nerez SS316 1/8 / 1/4 F2-FE-FNPT4-316 |
| F3-FE-FNPT2-316 | 3/16 | 1/8 | 25.4 | 10.4 | 13.7 | 12.7 | 3.0 | 12.7 | 19.1 | SS-300-8-2 | LOK L spojka F-NPT / Trubka nerez SS316 3/16 / 1/8 F3-FE-FNPT2-316 |
| F4-FE-FNPT2-316 | 1/4 | 1/8 | 26.9 | 10.4 | 15.2 | 14.3 | 4.8 | 14.3 | 19.1 | SS-400-8-2 | LOK L spojka F-NPT / Trubka nerez SS316 1/4 / 1/8 F4-FE-FNPT2-316 |
| F4-FE-FNPT4-316 | 1/4 | 1/4 | 29.7 | 15.0 | 15.2 | 14.3 | 4.8 | 17.5 | 22.4 | SS-400-8-4 | LOK L spojka F-NPT / Trubka nerez SS316 1/4 / 1/4 F4-FE-FNPT4-316 |
| F4-FE-FNPT6-316 | 1/4 | 3/8 | 31.8 | 15.0 | 15.2 | 14.3 | 4.8 | 20.6 | 22.4 | SS-400-8-6 | LOK L spojka F-NPT / Trubka nerez SS316 1/4 / 3/8 F4-FE-FNPT6-316 |
| F4-FE-FNPT8-316 | 1/4 | 1/2 | 34.5 | 19.8 | 15.2 | 14.3 | 4.8 | 25.4 | 28.4 | SS-400-8-8 | LOK L spojka F-NPT / Trubka nerez SS316 1/4 / 1/2 F4-FE-FNPT8-316 |
| F5-FE-FNPT2-316 | 5/16 | 1/8 | 28.7 | 10.4 | 16.3 | 15.9 | 6.4 | 14.3 | 19.1 | SS-500-8-2 | LOK L spojka F-NPT / Trubka nerez SS316 5/16 / 1/8 F5-FE-FNPT2-316 |
| F5-FE-FNPT4-316 | 5/16 | 1/4 | 30.5 | 15.0 | 16.3 | 15.9 | 6.4 | 17.5 | 22.4 | SS_500-8-4 | LOK L spojka F-NPT / Trubka nerez SS316 5/16 / 1/4 F5-FE-FNPT4-316 |
| F6-FE-FNPT2-316 | 3/8 | 1/8 | 30.5 | 10.4 | 16.8 | 17.5 | 7.1 | 15.9 | 19.1 | SS-600-8-2 | LOK L spojka F-NPT / Trubka nerez SS316 3/8 / 1/8 F6-FE-FNPT2-316 |
| F6-FE-FNPT4-316 | 3/8 | 1/4 | 31.2 | 15.0 | 16.8 | 17.5 | 7.1 | 17.5 | 22.4 | SS-600-8-4 | LOK L spojka F-NPT / Trubka nerez SS316 3/8 / 1/4 F6-FE-FNPT4-316 |
| F6-FE-FNPT6-316 | 3/8 | 3/8 | 33.3 | 15.0 | 16.8 | 17.5 | 7.1 | 20.6 | 22.4 | SS-600-8-6 | LOK L spojka F-NPT / Trubka nerez SS316 3/8 / 3/8 F6-FE-FNPT6-316 |
| F6-FE-FNPT8-316 | 3/8 | 1/2 | 36.1 | 19.8 | 16.8 | 17.5 | 7.1 | 25.4 | 28.4 | SS-600-8-8 | LOK L spojka F-NPT / Trubka nerez SS316 3/8 / 1/2 F6-FE-FNPT8-316 |
| F8-FE-FNPT4-316 | 1/2 | 1/4 | 36.1 | 15.0 | 22.9 | 22.2 | 10.4 | 20.6 | 22.4 | SS-810-8-4 | LOK L spojka F-NPT / Trubka nerez SS316 1/2 / 1/4 F8-FE-FNPT4-316 |
| F8-FE-FNPT6-316 | 1/2 | 3/8 | 36.1 | 15.0 | 22.9 | 22.2 | 10.4 | 20.6 | 22.4 | SS-810-8-6 | LOK L spojka F-NPT / Trubka nerez SS316 1/2 / 3/8 F8-FE-FNPT6-316 |
| F8-FE-FNPT8-316 | 1/2 | 1/2 | 38.9 | 19.8 | 22.9 | 22.2 | 10.4 | 25.4 | 28.4 | SS-810-8-8 | LOK L spojka F-NPT / Trubka nerez SS316 1/2 / 1/2 F8-FE-FNPT8-316 |
| F10-FE-FNPT6-316 | 5/8 | 3/8 | 38.1 | 15.0 | 24.4 | 25.4 | 12.7 | 23.8 | 22.4 | SS-1010-8-6 | LOK L spojka F-NPT / Trubka nerez SS316 5/8 / 3/8 F10-FE-FNPT6-316 |
| F10-FE-FNPT8-316 | 5/8 | 1/2 | 39.9 | 19.8 | 24.4 | 25.4 | 12.7 | 27.0 | 28.4 | SS-1010-8-8 | LOK L spojka F-NPT / Trubka nerez SS316 5/8 / 1/2 F10-FE-FNPT8-316 |
| F12-FE-FNPT8-316 | 3/4 | 1/2 | 39.9 | 19.8 | 24.4 | 28.6 | 15.7 | 27.0 | 28.4 | SS-1210-8-8 | LOK L spojka F-NPT / Trubka nerez SS316 3/4 / 1/2 F12-FE-FNPT8-316 |
| F12-FE-FNPT12-316 | 3/4 | 3/4 | 44.7 | 20.6 | 24.4 | 28.6 | 15.7 | 34.9 | 31.8 | SS-1210-8-12 | LOK L spojka F-NPT / Trubka nerez SS316 3/4 / 3/4 F12-FE-FNPT12-316 |
| F14-FE-FNPT12-316 | 7/8 | 3/4 | 44.7 | 20.6 | 25.9 | 31.8 | 18.3 | 34.9 | 31.8 | SS-1410-8-12 | LOK L spojka F-NPT / Trubka nerez SS316 7/8 / 3/4 F14-FE-FNPT12-316 |
| F16-FE-FNPT12-316 | 1 | 3/4 | 49.0 | 20.6 | 31.2 | 38.1 | 22.4 | 34.9 | 31.8 | SS-1610-8-12 | LOK L spojka F-NPT / Trubka nerez SS316 1 / 3/4 F16-FE-FNPT12-316 |
| F16-FE-FNPT16-316 | 1 | 1 | 53.6 | 25.4 | 31.2 | 38.1 | 22.4 | 42.9 | 38.1 | SS-1610-8-16 | LOK L spojka F-NPT / Trubka nerez SS316 1 / 1 F16-FE-FNPT16-316 |
| M6-FE-FNPT2-316 | 6 | 1/8 | 27.0 | 10.4 | 15.3 | 14 | 4.8 | 12.7 | 19.0 | SS-6M0-8-2 | LOK L spojka F-NPT / Trubka nerez SS316 6 / 1/8 M6-FE-FNPT2-316 |
| M6-FE-FNPT4-316 | 6 | 1/4 | 29.8 | 15.0 | 15.3 | 14 | 4.8 | 17.5 | 22.4 | SS-6M0-8-4 | LOK L spojka F-NPT / Trubka nerez SS316 6 / 1/4 M6-FE-FNPT4-316 |
| M8-FE-FNPT2-316 | 8 | 1/8 | 28.8 | 10.4 | 16.2 | 16 | 4.8 | 14.3 | 19.1 | LOK L spojka F-NPT / Trubka nerez SS316 8 / 1/8 M8-FE-FNPT2-316 | |
| M8-FE-FNPT4-316 | 8 | 1/4 | 30.6 | 15.0 | 16.2 | 16 | 6.4 | 17.5 | 22.4 | SS-8M0-8-4 | LOK L spojka F-NPT / Trubka nerez SS316 8 / 1/4 M8-FE-FNPT4-316 |
| M10-FE-FNPT4-316 | 10 | 1/4 | 33.5 | 15.0 | 17.2 | 19 | 7.9 | 20.6 | 22.4 | SS-10M0-8-4 | LOK L spojka F-NPT / Trubka nerez SS316 10 / 1/4 M10-FE-FNPT4-316 |
| M10-FE-FNPT6-316 | 10 | 3/8 | 33.5 | 15.0 | 17.2 | 19 | 7.9 | 20.6 | 22.4 | LOK L spojka F-NPT / Trubka nerez SS316 10 / 3/8 M10-FE-FNPT6-316 | |
| M10-FE-FNPT8-316 | 10 | 1/2 | 36.6 | 19.8 | 17.2 | 19 | 7.9 | 25.4 | 28.5 | LOK L spojka F-NPT / Trubka nerez SS316 10 / 1/2 M10-FE-FNPT8-316 | |
| M12-FE-FNPT4-316 | 12 | 1/4 | 36.0 | 15.0 | 22.8 | 22 | 7.9 | 20.6 | 22.4 | SS-12M0-8-4 | LOK L spojka F-NPT / Trubka nerez SS316 12 / 1/4 M12-FE-FNPT4-316 |
| M12-FE-FNPT6-316 | 12 | 3/8 | 36.0 | 15.0 | 22.8 | 22 | 9.5 | 20.6 | 22.4 | LOK L spojka F-NPT / Trubka nerez SS316 12 / 3/8 M12-FE-FNPT6-316 | |
| M12-FE-FNPT8-316 | 12 | 1/2 | 38.8 | 19.8 | 22.8 | 22 | 9.5 | 25.4 | 28.4 | SS-12M0-8-8 | LOK L spojka F-NPT / Trubka nerez SS316 12 / 1/2 M12-FE-FNPT8-316 |
| M16-FE-FNPT6-316 | 16 | 3/8 | 39.5 | 15.0 | 24.4 | 25 | 9.5 | 27.0 | 23.6 | LOK L spojka F-NPT / Trubka nerez SS316 16 / 3/8 M16-FE-FNPT6-316 | |
| M16-FE-FNPT8-316 | 16 | 1/2 | 39.5 | 19.8 | 24.4 | 25 | 12.7 | 27.0 | 28.5 | SS-16M0-8-8 | LOK L spojka F-NPT / Trubka nerez SS316 16 / 1/2 M16-FE-FNPT8-316 |
