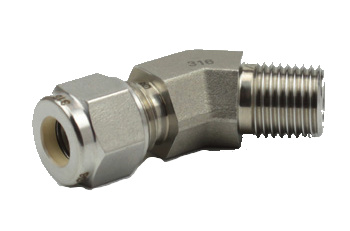

LOK L spojka 45 NPT / Trubka nerez SS316
LOK L spojka 45 NPT / Trubka nerez SS316
- Kód produktu: F45MENPT

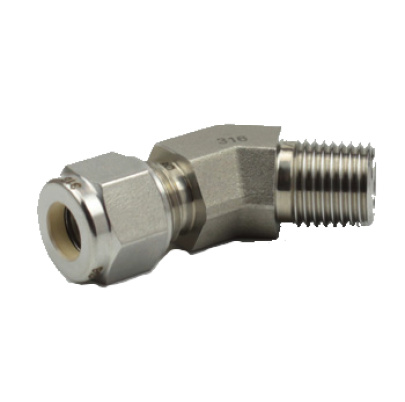

LOK L spojka 45 NPT / Trubka nerez SS316
LOK L union 45 NPT / TUBE stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK L spojky 45 NTP / Trubkanerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

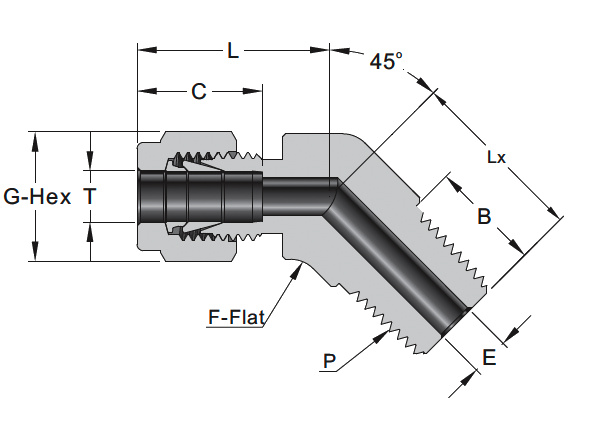

| Kod | Rozmer trubky T (Inch/mm) | Rozmer trubky P-NPT | L mm | C mm | G mm | F mm | E mm | B mm | Lx mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension tube P-NPT | Replacement: | Description | |||||||
| F1-45ME-NPT1-316 | 1/16 | 1/16 | 15.7 | 8.6 | 7.9 | 9.5 | 1.3 | 9.7 | 14.5 | LOK L spojka 45 NPT / Trubka nerez SS316 1/16 / 1/16 F1-45ME-NPT1-316 | |
| F2-45ME-NPT2-316 | 1/8 | 1/8 | 20.8 | 12.7 | 11.1 | 11.1 | 2.3 | 9.7 | 16.8 | LOK L spojka 45 NPT / Trubka nerez SS316 1/8 / 1/8 F2-45ME-NPT2-316 | |
| F3-45ME-NPT2-316 | 3/16 | 1/8 | 21.6 | 13.7 | 12.7 | 11.1 | 3.0 | 9.7 | 14.7 | LOK L spojka 45 NPT / Trubka nerez SS316 3/16 / 1/8 F3-45ME-NPT2-316 | |
| F4-45ME-NPT2-316 | 1/4 | 1/8 | 24.6 | 15.2 | 14.3 | 12.7 | 4.8 | 9.7 | 16.5 | SS-400-5-2 | LOK L spojka 45 NPT / Trubka nerez SS316 1/4 / 1/8 F4-45ME-NPT2-316 |
| F4-45ME-NPT4-316 | 1/4 | 1/4 | 24.6 | 15.2 | 14.3 | 12.7 | 4.8 | 14.3 | 21.1 | SS-400-5-4 | LOK L spojka 45 NPT / Trubka nerez SS316 1/4 / 1/4 F4-45ME-NPT4-316 |
| F5-45ME-NPT2-316 | 5/16 | 1/8 | 24.1 | 16.3 | 15.9 | 14.3 | 4.8 | 9.7 | 16.8 | LOK L spojka 45 NPT / Trubka nerez SS316 5/16 / 1/8 F5-45ME-NPT2-316 | |
| F6-45ME-NPT2-316 | 3/8 | 1/8 | 27.9 | 16.8 | 17.5 | 15.9 | 4.8 | 9.7 | 18.3 | SS-600-5-2 | LOK L spojka 45 NPT / Trubka nerez SS316 3/8 / 1/8 F6-45ME-NPT2-316 |
| F6-45ME-NPT4-316 | 3/8 | 1/4 | 27.9 | 16.8 | 17.5 | 15.9 | 7.1 | 14.3 | 22.9 | SS-600-5-4 | LOK L spojka 45 NPT / Trubka nerez SS316 3/8 / 1/4 F6-45ME-NPT4-316 |
| F6-45ME-NPT6-316 | 3/8 | 3/8 | 29.2 | 16.8 | 17.5 | 20.6 | 7.1 | 19.1 | 24.1 | SS-600-5-6 | LOK L spojka 45 NPT / Trubka nerez SS316 3/8 / 3/8 F6-45ME-NPT6-316 |
| F8-45ME-NPT6-316 | 1/2 | 3/8 | 32.0 | 22.9 | 22.2 | 20.6 | 9.7 | 19.1 | 24.1 | SS-810-5-6 | LOK L spojka 45 NPT / Trubka nerez SS316 1/2 / 3/8 F8-45ME-NPT6-316 |
| F10-45ME-NPT8-316 | 5/8 | 1/2 | 30.7 | 24.4 | 25.4 | 23.8 | 11.9 | 19.1 | 29.7 | LOK L spojka 45 NPT / Trubka nerez SS316 5/8 / 1/2 F10-45ME-NPT8-316 | |
| F12-45ME-NPT12-316 | 3/4 | 3/4 | 34.0 | 24.4 | 28.6 | 27.0 | 15.7 | 19.1 | 31.0 | SS-1210-5-12 | LOK L spojka 45 NPT / Trubka nerez SS316 3/4 / 3/4 F12-45ME-NPT12-316 |
| F14-45ME-NPT12-316 | 7/8 | 3/4 | 40.4 | 25.9 | 31.8 | 31.8 | 15.7 | 19.1 | 32.3 | LOK L spojka 45 NPT / Trubka nerez SS316 7/8 / 3/4 F14-45ME-NPT12-316 | |
| F16-45ME-NPT16-316 | 1 | 1 | 40.4 | 31.2 | 38.1 | 34.9 | 22.4 | 23.9 | 37.8 | SS-1610-5-16 | LOK L spojka 45 NPT / Trubka nerez SS316 1 / 1 F16-45ME-NPT16-316 |
| M6-45ME-NPT2-316 | 6 | 1/8 | 23.4 | 15.3 | 14 | 12.7 | 4.8 | 9.7 | 16.8 | LOK L spojka 45 NPT / Trubka nerez SS316 6 / 1/8 M6-45ME-NPT2-316 | |
| M6-45ME-NPT4-316 | 6 | 1/4 | 23.4 | 15.3 | 14 | 12.7 | 4.8 | 14.3 | 21.8 | LOK L spojka 45 NPT / Trubka nerez SS316 6 / 1/4 M6-45ME-NPT4-316 | |
| M8-45ME-NPT2-316 | 8 | 1/8 | 24.3 | 16.2 | 16 | 15.9 | 4.8 | 9.7 | 16.8 | LOK L spojka 45 NPT / Trubka nerez SS316 8 / 1/8 M8-45ME-NPT2-316 | |
| M10-45ME-NPT4-316 | 10 | 1/4 | 26.6 | 17.2 | 19 | 17.5 | 7.9 | 14.3 | 24.1 | LOK L spojka 45 NPT / Trubka nerez SS316 10 / 1/4 M10-45ME-NPT4-316 | |
| M12-45ME-NPT6-316 | 12 | 3/8 | 29.1 | 22.8 | 22 | 20.6 | 9.5 | 19.1 | 24.1 | LOK L spojka 45 NPT / Trubka nerez SS316 12 / 3/8 M12-45ME-NPT6-316 | |
| M12-45ME-NPT8-316 | 12 | 1/2 | 30.7 | 22.8 | 22 | 20.6 | 9.5 | 19.1 | 29.7 | LOK L spojka 45 NPT / Trubka nerez SS316 12 / 1/2 M12-45ME-NPT8-316 | |
| M16-45ME-NPT8-316 | 16 | 1/2 | 30.7 | 24.4 | 25 | 23.8 | 11.9 | 19.1 | 29.7 | LOK L spojka 45 NPT / Trubka nerez SS316 16 / 1/2 M16-45ME-NPT8-316 |
