LOK L spojka BSPT / Trubka nerez SS316
LOK L spojka BSPT / Trubka nerez SS316
- Kód produktu: FMEMBT
LOK L spojka BSPT / Trubka nerez SS316

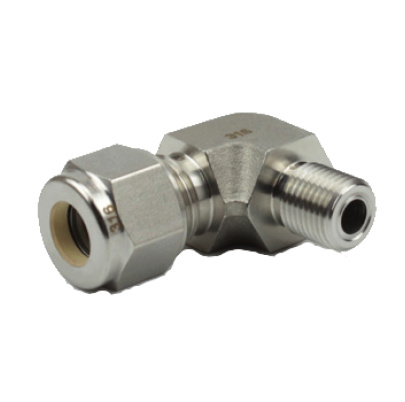

LOK L union BSPT / TUBE stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK L spojky BSPT / Trubkanerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

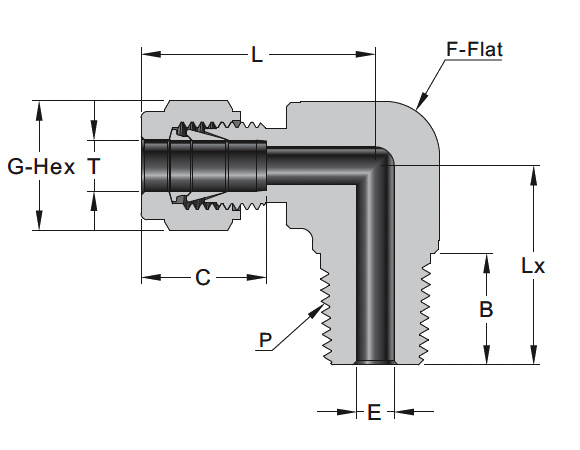

| Kod | Rozmer trubky T (Inch/mm) | Rozmer trubky P-BSPT | L mm | C mm | G mm | F mm | E mm | B mm | Lx mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension tube P-BSPT | Replacement: | Description | |||||||
| F2-ME-MBT2-316 | 1/8 | 1/8 | 23.6 | 12.7 | 11.1 | 11.1 | 2.4 | 9.7 | 17.8 | SS-200-2-2BT | LOK L spojka BSPT / Trubka nerez SS316 1/8 / 1/8 F2-ME-MBT2-316 |
| F2-ME-MBT4-316 | 1/8 | 1/4 | 24.6 | 12.7 | 11.1 | 12.7 | 2.4 | 14.2 | 23.4 | SS-200-2-4BT | LOK L spojka BSPT / Trubka nerez SS316 1/8 / 1/4 F2-ME-MBT4-316 |
| F4-ME-MBT2-316 | 1/4 | 1/8 | 26.9 | 15.2 | 14.3 | 12.7 | 4.8 | 9.7 | 18.8 | SS-400-2-2BT | LOK L spojka BSPT / Trubka nerez SS316 1/4 / 1/8 F4-ME-MBT2-316 |
| F4-ME-MBT4-316 | 1/4 | 1/4 | 26.9 | 15.2 | 14.3 | 12.7 | 4.8 | 14.2 | 23.4 | SS-400-2-4BT | LOK L spojka BSPT / Trubka nerez SS316 1/4 / 1/4 F4-ME-MBT4-316 |
| F4-ME-MBT6-316 | 1/4 | 3/8 | 29.7 | 15.2 | 14.3 | 17.5 | 4.8 | 14.2 | 26.2 | SS-400-2-6BT | LOK L spojka BSPT / Trubka nerez SS316 1/4 / 3/8 F4-ME-MBT6-316 |
| F4-ME-MBT8-316 | 1/4 | 1/2 | 31.8 | 15.2 | 14.3 | 20.6 | 4.8 | 19.1 | 33.0 | SS-400-2-8RT | LOK L spojka BSPT / Trubka nerez SS316 1/4 / 1/2 F4-ME-MBT8-316 |
| F5-ME-MBT4-316 | 5/16 | 1/4 | 28.7 | 16.3 | 15.9 | 14.3 | 6.4 | 14.2 | 24.4 | SS-500-2-4RT | LOK L spojka BSPT / Trubka nerez SS316 5/16 / 1/4 F5-ME-MBT4-316 |
| F6-ME-MBT2-316 | 3/8 | 1/8 | 30.5 | 16.8 | 17.5 | 15.9 | 4.8 | 9.7 | 20.8 | SS-600-2-2RT | LOK L spojka BSPT / Trubka nerez SS316 3/8 / 1/8 F6-ME-MBT2-316 |
| F6-ME-MBT4-316 | 3/8 | 1/4 | 30.5 | 16.8 | 17.5 | 15.9 | 7.1 | 14.2 | 25.4 | SS-600-2-4RT | LOK L spojka BSPT / Trubka nerez SS316 3/8 / 1/4 F6-ME-MBT4-316 |
| F6-ME-MBT6-316 | 3/8 | 3/8 | 31.2 | 16.8 | 17.5 | 17.5 | 7.1 | 14.2 | 26.2 | SS-600-2-6RT | LOK L spojka BSPT / Trubka nerez SS316 3/8 / 3/8 F6-ME-MBT6-316 |
| F8-ME-MBT6-316 | 1/2 | 3/8 | 36.1 | 22.9 | 22.2 | 20.6 | 9.7 | 14.2 | 27.9 | SS-810-2-6RT | LOK L spojka BSPT / Trubka nerez SS316 1/2 / 3/8 F8-ME-MBT6-316 |
| F8-ME-MBT8-316 | 1/2 | 1/2 | 36.1 | 22.9 | 22.2 | 20.6 | 10.4 | 19.1 | 33.0 | SS-810-2-8RT | LOK L spojka BSPT / Trubka nerez SS316 1/2 / 1/2 F8-ME-MBT8-316 |
| F12-ME-MBT8-316 | 3/4 | 1/2 | 39.9 | 24.4 | 28.6 | 27.0 | 11.9 | 19.1 | 36.8 | SS-1210-2-8RT | LOK L spojka BSPT / Trubka nerez SS316 3/4 / 1/2 F12-ME-MBT8-316 |
| F16-ME-MBT16-316 | 1 | 1 | 49.0 | 31.2 | 38.1 | 34.9 | 22.4 | 23.9 | 46.5 | SS-1610-2-16BT | LOK L spojka BSPT / Trubka nerez SS316 1 / 1 F16-ME-MBT16-316 |
| M3-ME-MBT2-316 | 3 | 1/8 | 23.6 | 12.9 | 12 | 11.1 | 2.4 | 9.7 | 17.8 | SS-3M0-2-2RT | LOK L spojka BSPT / Trubka nerez SS316 3 / 1/8 M3-ME-MBT2-316 |
| M3-ME-MBT4-316 | 3 | 1/4 | 24.6 | 12.9 | 12 | 12.7 | 2.4 | 14.2 | 23.4 | SS_3M0-2-4RT | LOK L spojka BSPT / Trubka nerez SS316 3 / 1/4 M3-ME-MBT4-316 |
| M4-ME-MBT2-316 | 4 | 1/8 | 25.4 | 13.7 | 12 | 12.7 | 2.4 | 9.7 | 18.8 | SS-4M0-2-2BT | LOK L spojka BSPT / Trubka nerez SS316 4 / 1/8 M4-ME-MBT2-316 |
| M4-ME-MBT4-316 | 4 | 1/4 | 25.4 | 13.7 | 12 | 12.7 | 2.4 | 14.2 | 23.4 | SS-4M0-2-4BT | LOK L spojka BSPT / Trubka nerez SS316 4 / 1/4 M4-ME-MBT4-316 |
| M6-ME-MBT2-316 | 6 | 1/8 | 27.0 | 15.3 | 14 | 12.7 | 4.8 | 9.7 | 18.8 | SS-6M0-2-2BT | LOK L spojka BSPT / Trubka nerez SS316 6 / 1/8 M6-ME-MBT2-316 |
| M6-ME-MBT4-316 | 6 | 1/4 | 27.0 | 15.3 | 14 | 12.7 | 4.8 | 14.2 | 23.4 | SS-6M0-2-4RT | LOK L spojka BSPT / Trubka nerez SS316 6 / 1/4 M6-ME-MBT4-316 |
| M6-ME-MBT6-316 | 6 | 3/8 | 29.8 | 15.3 | 14 | 17.5 | 4.8 | 14.2 | 26.2 | SS-6M0-2-6RT | LOK L spojka BSPT / Trubka nerez SS316 6 / 3/8 M6-ME-MBT6-316 |
| M6-ME-MBT8-316 | 6 | 1/2 | 31.8 | 15.3 | 14 | 20.6 | 4.8 | 19.0 | 33.0 | SS-6M0-2-8RT | LOK L spojka BSPT / Trubka nerez SS316 6 / 1/2 M6-ME-MBT8-316 |
| M8-ME-MBT2-316 | 8 | 1/8 | 28.8 | 16.2 | 16 | 14.3 | 4.8 | 9.7 | 19.8 | SS-8M0-2-2RT | LOK L spojka BSPT / Trubka nerez SS316 8 / 1/8 M8-ME-MBT2-316 |
| M8-ME-MBT4-316 | 8 | 1/4 | 28.8 | 16.2 | 16 | 14.3 | 6.4 | 14.2 | 24.4 | SS-8M0-2-4RT | LOK L spojka BSPT / Trubka nerez SS316 8 / 1/4 M8-ME-MBT4-316 |
| M8-ME-MBT6-316 | 8 | 3/8 | 30.6 | 16.2 | 16 | 17.5 | 6.4 | 14.2 | 26.2 | SS-8M0-2-6RT | LOK L spojka BSPT / Trubka nerez SS316 8 / 3/8 M8-ME-MBT6-316 |
| M8-ME-MBT8-316 | 8 | 1/2 | 32.6 | 16.2 | 16 | 20.6 | 6.4 | 19.1 | 33.0 | SS-8M0-2-8RT | LOK L spojka BSPT / Trubka nerez SS316 8 / 1/2 M8-ME-MBT8-316 |
| M10-ME-MBT2-316 | 10 | 1/8 | 31.5 | 17.2 | 19 | 17.5 | 4.8 | 9.7 | 21.6 | LOK L spojka BSPT / Trubka nerez SS316 10 / 1/8 M10-ME-MBT2-316 | |
| M10-ME-MBT4-316 | 10 | 1/4 | 31.5 | 17.2 | 19 | 17.5 | 7.1 | 14.2 | 26.2 | SS-10M0-2-4RT | LOK L spojka BSPT / Trubka nerez SS316 10 / 1/4 M10-ME-MBT4-316 |
| M10-ME-MBT6-316 | 10 | 3/8 | 31.5 | 17.2 | 19 | 17.5 | 7.9 | 14.2 | 26.2 | SS-10M0-2-6RT | LOK L spojka BSPT / Trubka nerez SS316 10 / 3/8 M10-ME-MBT6-316 |
| M10-ME-MBT8-316 | 10 | 1/2 | 33.5 | 17.2 | 19 | 20.6 | 7.9 | 19.1 | 33.0 | SS-10M0-2-8RT | LOK L spojka BSPT / Trubka nerez SS316 10 / 1/2 M10-ME-MBT8-316 |
| M12-ME-MBT2-316 | 12 | 1/8 | 36.0 | 22.8 | 22 | 20.6 | 4.8 | 9.7 | 23.6 | SS-12M0-2-2RT | LOK L spojka BSPT / Trubka nerez SS316 12 / 1/8 M12-ME-MBT2-316 |
| M12-ME-MBT4-316 | 12 | 1/4 | 36.0 | 22.8 | 22 | 20.6 | 7.1 | 14.2 | 28.2 | SS-12M0-2-4RT | LOK L spojka BSPT / Trubka nerez SS316 12 / 1/4 M12-ME-MBT4-316 |
| M12-ME-MBT6-316 | 12 | 3/8 | 36.0 | 22.8 | 22 | 20.6 | 9.5 | 14.2 | 28.2 | SS-12M0-2-6RT | LOK L spojka BSPT / Trubka nerez SS316 12 / 3/8 M12-ME-MBT6-316 |
| M12-ME-MBT8-316 | 12 | 1/2 | 36.0 | 22.8 | 22 | 20.6 | 9.5 | 19.1 | 33.0 | SS-12M0-2-8RT | LOK L spojka BSPT / Trubka nerez SS316 12 / 1/2 M12-ME-MBT8-316 |
| M12-ME-MBT12-316 | 12 | 3/4 | 39.8 | 22.8 | 22 | 27.0 | 9.5 | 19.1 | 36.8 | SS-12M0-2-12RT | LOK L spojka BSPT / Trubka nerez SS316 12 / 3/4 M12-ME-MBT12-316 |
| M14-ME-MBT8-316 | 14 | 1/2 | 38.1 | 24.4 | 25 | 23.8 | 11.1 | 19.1 | 35.1 | SS-14M0-2-8RT | LOK L spojka BSPT / Trubka nerez SS316 14 / 1/2 M14-ME-MBT8-316 |
| M15-ME-MBT8-316 | 15 | 1/2 | 38.1 | 24.4 | 25 | 23.8 | 11.9 | 19.1 | 35.1 | SS-15M0-2-8RT | LOK L spojka BSPT / Trubka nerez SS316 15 / 1/2 M15-ME-MBT8-316 |
| M16-ME-MBT4-316 | 16 | 1/4 | 38.0 | 24.4 | 25 | 23.8 | 7.1 | 14.2 | 30.2 | LOK L spojka BSPT / Trubka nerez SS316 16 / 1/4 M16-ME-MBT4-316 | |
| M16-ME-MBT6-316 | 16 | 3/8 | 38.0 | 24.4 | 25 | 23.8 | 9.5 | 14.2 | 30.2 | SS-16M0-2-6RT | LOK L spojka BSPT / Trubka nerez SS316 16 / 3/8 M16-ME-MBT6-316 |
| M16-ME-MBT8-316 | 16 | 1/2 | 38.0 | 24.4 | 25 | 23.8 | 11.9 | 19.1 | 35.1 | SS-16M0-2-8RT | LOK L spojka BSPT / Trubka nerez SS316 16 / 1/2 M16-ME-MBT8-316 |
| M16-ME-MBT12-316 | 16 | 3/4 | 39.8 | 24.4 | 25 | 27.0 | 12.7 | 19.1 | 36.8 | LOK L spojka BSPT / Trubka nerez SS316 16 / 3/4 M16-ME-MBT12-316 | |
| M18-ME-MBT8-316 | 18 | 1/2 | 39.8 | 24.4 | 30 | 27.0 | 11.9 | 19.1 | 36.8 | SS-18M0-2-8RT | LOK L spojka BSPT / Trubka nerez SS316 18 / 1/2 M18-ME-MBT8-316 |
| M18-ME-MBT12-316 | 18 | 3/4 | 39.8 | 24.4 | 30 | 27.0 | 15.1 | 19.1 | 36.8 | SS-18M0-2-12BT | LOK L spojka BSPT / Trubka nerez SS316 18 / 3/4 M18-ME-MBT12-316 |
| M20-ME-MBT8-316 | 20 | 1/2 | 44.6 | 26.0 | 32 | 34.9 | 11.9 | 19.1 | 41.7 | SS-20M0-2-8BT | LOK L spojka BSPT / Trubka nerez SS316 20 / 1/2 M20-ME-MBT8-316 |
| M20-ME-MBT12-316 | 20 | 3/4 | 44.6 | 26.0 | 32 | 34.9 | 15.9 | 19.1 | 41.7 | SS-20M0-2-12RT | LOK L spojka BSPT / Trubka nerez SS316 20 / 3/4 M20-ME-MBT12-316 |
| M22-ME-MBT12-316 | 22 | 3/4 | 44.6 | 26.0 | 32 | 34.9 | 15.9 | 19.1 | 41.7 | SS-22M0-2-12BT | LOK L spojka BSPT / Trubka nerez SS316 22 / 3/4 M22-ME-MBT12-316 |
| M22-ME-MBT16-316 | 22 | 1 | 44.6 | 26.0 | 32 | 34.9 | 18.3 | 23.9 | 46.5 | SS-22M0-2-16RT | LOK L spojka BSPT / Trubka nerez SS316 22 / 1 M22-ME-MBT16-316 |
| M25-ME-MBT12-316 | 25 | 3/4 | 49.1 | 31.3 | 38 | 34.9 | 15.9 | 19.1 | 41.7 | SS-25M0-2-12BT | LOK L spojka BSPT / Trubka nerez SS316 25 / 3/4 M25-ME-MBT12-316 |
| M25-ME-MBT16-316 | 25 | 1 | 49.1 | 31.3 | 38 | 34.9 | 21.8 | 23.9 | 46.5 | SS-25M0-2-16BT | LOK L spojka BSPT / Trubka nerez SS316 25 / 1 M25-ME-MBT16-316 |
| M28-ME-MBT16-316 | 28 | 1 | 64.0 | 36.6 | 46 | 42.9 | 21.8 | 23.9 | 53.1 | SS-28M0-2-16RT | LOK L spojka BSPT / Trubka nerez SS316 28 / 1 M28-ME-MBT16-316 |
