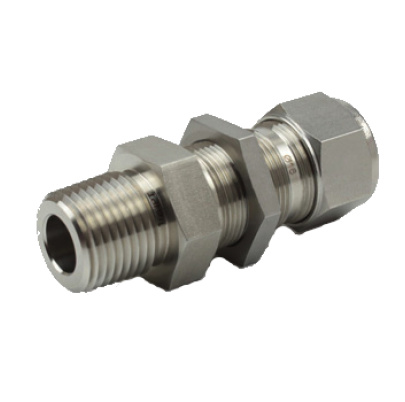

LOK panelova spojka JIC / Trubka nerez SS316
LOK panelova spojka JIC / Trubka nerez SS316
- Kód produktu: FBMCAN
LOK panelova spojka JIC / Trubka nerez SS316
LOK bulkhead union JIC / Pipe stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK panelove spojky JIC / Trubka nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

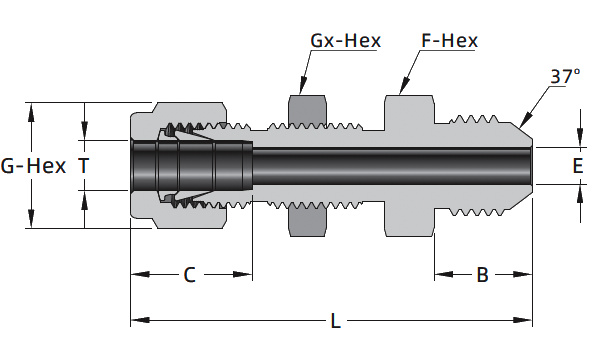

| Kod | Rozmer trubky T (Inch/mm) | Rozmer P-JIC | L mm | B mm | C mm | E mm | G mm | F mm | Gx mm | Veľkosť otvoru v paneli mm | Max panelova hrubka mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension P-JIC | Panel hole size mm | Max panel thickness mm | Replacement: | Description | |||||||
| F2-BMC-AN2-316 | 1/8 | 1/8 | 48.5 | 11.4 | 12.7 | 1.5 | 11.1 | 12.7 | 12.7 | 8.3 | 12.7 | LOK panelova spojka JIC / Trubka nerez SS316 1/8 / 1/8 F2-BMC-AN2-316 | |
| F2-BMC-AN4-316 | 1/8 | 1/4 | 51.8 | 14.0 | 12.7 | 2.3 | 11.1 | 15.9 | 12.7 | 8.3 | 12.7 | LOK panelova spojka JIC / Trubka nerez SS316 1/8 / 1/4 F2-BMC-AN4-316 | |
| F3-BMC-AN3-316 | 3/16 | 3/16 | 50.3 | 12 . 2 | 13.7 | 2. 3 | 12.7 | 14.3 | 14.3 | 9. 9 | 12.7 | LOK panelova spojka JIC / Trubka nerez SS316 3/16 / 3/16 F3-BMC-AN3-316 | |
| F4-BMC-AN4-316 | 1/4 | 1/4 | 53.8 | 14 . 0 | 15.2 | 4. 3 | 14.3 | 15.9 | 15.9 | 11 . 5 | 10.2 | SS-400-61-4AN | LOK panelova spojka JIC / Trubka nerez SS316 1/4 / 1/4 F4-BMC-AN4-316 |
| F5-BMC-AN5-316 | 5/16 | 5/16 | 56.1 | 14 . 0 | 16.2 | 5. 8 | 15.9 | 17.5 | 17.5 | 13 . 1 | 14.3 | LOK panelova spojka JIC / Trubka nerez SS316 5/16 / 5/16 F5-BMC-AN5-316 | |
| F6-BMC-AN4-316 | 3/8 | 1/4 | 57.2 | 14 . 0 | 16.8 | 4. 3 | 17.5 | 19.1 | 19.1 | 14 . 7 | 11.2 | LOK panelova spojka JIC / Trubka nerez SS316 3/8 / 1/4 F6-BMC-AN4-316 | |
| F6-BMC-AN6-316 | 3/8 | 3/8 | 57.2 | 14 . 2 | 16.8 | 7. 1 | 17.5 | 19.1 | 19.1 | 14 . 7 | 11.2 | SS-600-61-6AN | LOK panelova spojka JIC / Trubka nerez SS316 3/8 / 3/8 F6-BMC-AN6-316 |
| F8-BMC-AN8-316 | 1/2 | 1/2 | 65.8 | 16.8 | 22.8 | 9.9 | 22.2 | 23.8 | 23.8 | 19.4 | 12.7 | SS-810-61-8AN | LOK panelova spojka JIC / Trubka nerez SS316 1/2 / 1/2 F8-BMC-AN8-316 |
| F10-BMC-AN10-316 | 5/8 | 5/8 | 69.6 | 19.3 | 24.4 | 12.3 | 25.4 | 27.0 | 27.0 | 22.6 | 15.1 | LOK panelova spojka JIC / Trubka nerez SS316 5/8 / 5/8 F10-BMC-AN10-316 | |
| F12-BMC-AN12-316 | 3/4 | 3/4 | 79.0 | 21.8 | 24.4 | 15.5 | 28.6 | 30.2 | 30.2 | 25.8 | 16.8 | SS-1210-61-12AN | LOK panelova spojka JIC / Trubka nerez SS316 3/4 / 3/4 F12-BMC-AN12-316 |
| F16-BMC-AN16-316 | 1 | 1 | 92.5 | 23.1 | 31.2 | 21.3 | 38.1 | 41.3 | 41.3 | 33.7 | 19.1 | SS-1610-61-16AN | LOK panelova spojka JIC / Trubka nerez SS316 1 / 1 F16-BMC-AN16-316 |
