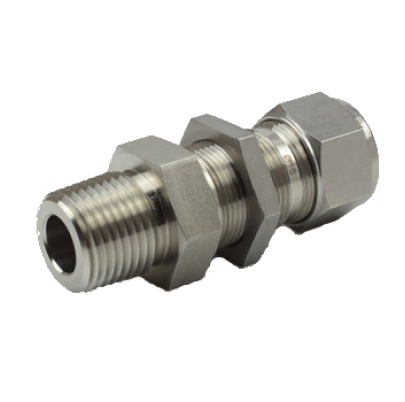

LOK panelova spojka NPT / Trubka nerez SS316
LOK panelova spojka NPT / Trubka nerez SS316
- Kód produktu: FBMCNPT
LOK panelova spojka NPT / Trubka nerez SS316
LOK bulkhead union NPT / Pipe stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK panelove spojky NPT / Trubka nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

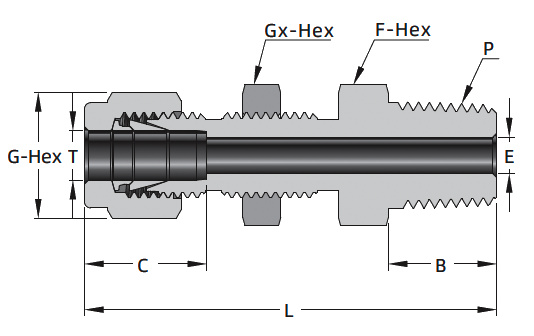

| Kod | Rozmer trubky T (Inch/mm) | Rozmer P-NPT | L mm | B mm | C mm | E mm | G mm | F mm | Gx mm | Veľkosť otvoru v paneli mm | Max panelova hrubka mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Dimension P-NPT | Panel hole size mm | Max panel thickness mm | Replacement: | Description | |||||||
| F1-BMC-NPT1-316 | 1/16 | 1/16 | 30.2 | 9.7 | 8.6 | 1.3 | 7.9 | 7.9 | 7.9 | 5.2 | 6.4 | LOK panelova spojka NPT / Trubka nerez SS316 1/16 / 1/16 F1-BMC-NPT1-316 | |
| F1-BMC-NPT2-316 | 1/16 | 1/8 | 32.3 | 9.7 | 8.6 | 1.3 | 7.9 | 11.1 | 7.9 | 5.2 | 6.4 | LOK panelova spojka NPT / Trubka nerez SS316 1/16 / 1/8 F1-BMC-NPT2-316 | |
| F2-BMC-NPT2-316 | 1/8 | 1/8 | 46.5 | 9.7 | 12.7 | 2.3 | 11.1 | 12.7 | 12.7 | 8.3 | 12.7 | SS-200-11-2 | LOK panelova spojka NPT / Trubka nerez SS316 1/8 / 1/8 F2-BMC-NPT2-316 |
| F3-BMC-NPT2-316 | 3/16 | 1/8 | 48.0 | 9.7 | 13.7 | 3.0 | 12.7 | 14.3 | 14.3 | 9.9 | 12.7 | LOK panelova spojka NPT / Trubka nerez SS316 3/16 / 1/8 F3-BMC-NPT2-316 | |
| F4-BMC-NPT2-316 | 1/4 | 1/8 | 49.5 | 9.7 | 15.2 | 4.8 | 14.3 | 15.9 | 15.9 | 11.5 | 10.2 | SS-400-11-2 | LOK panelova spojka NPT / Trubka nerez SS316 1/4 / 1/8 F4-BMC-NPT2-316 |
| F4-BMC-NPT4-316 | 1/4 | 1/4 | 54.1 | 14.2 | 15.2 | 4.8 | 14.3 | 15.9 | 15.9 | 11.5 | 10.2 | SS-400-11-4 | LOK panelova spojka NPT / Trubka nerez SS316 1/4 / 1/4 F4-BMC-NPT4-316 |
| F4-BMC-NPT6-316 | 1/4 | 3/8 | 54.9 | 14.2 | 15.2 | 4.8 | 14.3 | 17.5 | 15.9 | 11.5 | 10.2 | LOK panelova spojka NPT / Trubka nerez SS316 1/4 / 3/8 F4-BMC-NPT6-316 | |
| F4-BMC-NPT8-316 | 1/4 | 1/2 | 60.3 | 19.1 | 15.2 | 4.8 | 14.3 | 22.2 | 15.9 | 11.5 | 10.2 | LOK panelova spojka NPT / Trubka nerez SS316 1/4 / 1/2 F4-BMC-NPT8-316 | |
| F5-BMC-NPT2-316 | 5/16 | 1/8 | 52.8 | 9.7 | 16.3 | 4.8 | 15.9 | 17.5 | 17.5 | 13.1 | 11.2 | LOK panelova spojka NPT / Trubka nerez SS316 5/16 / 1/8 F5-BMC-NPT2-316 | |
| F5-BMC-NPT4-316 | 5/16 | 1/4 | 57.7 | 14.2 | 16.3 | 6.4 | 15.9 | 17.5 | 17.5 | 13.1 | 11.2 | LOK panelova spojka NPT / Trubka nerez SS316 5/16 / 1/4 F5-BMC-NPT4-316 | |
| F6-BMC-NPT2-316 | 3/8 | 1/8 | 52.9 | 9.7 | 16.8 | 4.8 | 17.5 | 19.1 | 19.1 | 14.7 | 11.2 | LOK panelova spojka NPT / Trubka nerez SS316 3/8 / 1/8 F6-BMC-NPT2-316 | |
| F6-BMC-NPT4-316 | 3/8 | 1/4 | 57.4 | 14.2 | 16.8 | 7.1 | 17.5 | 19.1 | 19.1 | 14.7 | 11.2 | SS-600-11-4 | LOK panelova spojka NPT / Trubka nerez SS316 3/8 / 1/4 F6-BMC-NPT4-316 |
| F6-BMC-NPT6-316 | 3/8 | 3/8 | 57.4 | 14.2 | 16.8 | 7.1 | 17.5 | 19.1 | 19.1 | 14.7 | 11.2 | SS-600-11-6 | LOK panelova spojka NPT / Trubka nerez SS316 3/8 / 3/8 F6-BMC-NPT6-316 |
| F6-BMC-NPT8-316 | 3/8 | 1/2 | 63.8 | 19.1 | 16.8 | 7.1 | 17.5 | 22.2 | 19.1 | 14.7 | 11.2 | SS-600-11-8 | LOK panelova spojka NPT / Trubka nerez SS316 3/8 / 1/2 F6-BMC-NPT8-316 |
| F8-BMC-NPT2-316 | 1/2 | 1/8 | 58.7 | 9.7 | 22.9 | 4.8 | 22.2 | 23.8 | 23.8 | 19.4 | 12.7 | LOK panelova spojka NPT / Trubka nerez SS316 1/2 / 1/8 F8-BMC-NPT2-316 | |
| F8-BMC-NPT4-316 | 1/2 | 1/4 | 63.2 | 14.2 | 22.9 | 7.1 | 22.2 | 23.8 | 23.8 | 19.4 | 12.7 | LOK panelova spojka NPT / Trubka nerez SS316 1/2 / 1/4 F8-BMC-NPT4-316 | |
| F8-BMC-NPT6-316 | 1/2 | 3/8 | 63.2 | 14.2 | 22.9 | 9.7 | 22.2 | 23.8 | 23.8 | 19.4 | 12.7 | SS-810-11-6 | LOK panelova spojka NPT / Trubka nerez SS316 1/2 / 3/8 F8-BMC-NPT6-316 |
| F8-BMC-NPT8-316 | 1/2 | 1/2 | 68.8 | 19.1 | 22.9 | 10.4 | 22.2 | 23.8 | 23.8 | 19.4 | 12.7 | SS-810-11-8 | LOK panelova spojka NPT / Trubka nerez SS316 1/2 / 1/2 F8-BMC-NPT8-316 |
| F10-BMC-NPT6-316 | 5/8 | 3/8 | 66.7 | 14.2 | 24.4 | 9.7 | 25.4 | 27.0 | 27.0 | 22.6 | 15.1 | LOK panelova spojka NPT / Trubka nerez SS316 5/8 / 3/8 F10-BMC-NPT6-316 | |
| F10-BMC-NPT8-316 | 5/8 | 1/2 | 71.5 | 19.1 | 24.4 | 11.9 | 25.4 | 27.0 | 27.0 | 22.6 | 15.1 | LOK panelova spojka NPT / Trubka nerez SS316 5/8 / 1/2 F10-BMC-NPT8-316 | |
| F12-BMC-NPT8-316 | 3/4 | 1/2 | 76.2 | 19.1 | 24.4 | 11.9 | 28.6 | 30.2 | 30.2 | 25.8 | 16.8 | LOK panelova spojka NPT / Trubka nerez SS316 3/4 / 1/2 F12-BMC-NPT8-316 | |
| F12-BMC-NPT12-316 | 3/4 | 3/4 | 76.2 | 19.1 | 24.4 | 15.7 | 28.6 | 30.2 | 30.2 | 25.8 | 16.8 | SS-1210-11-12 | LOK panelova spojka NPT / Trubka nerez SS316 3/4 / 3/4 F12-BMC-NPT12-316 |
| F14-BMC-NPT12-316 | 7/8 | 3/4 | 84.1 | 19.1 | 25.9 | 15.7 | 31.8 | 33.3 | 33.3 | 29.0 | 19.1 | LOK panelova spojka NPT / Trubka nerez SS316 7/8 / 3/4 F14-BMC-NPT12-316 | |
| F16-BMC-NPT12-316 | 1 | 3/4 | 88.4 | 19.1 | 31.2 | 15.7 | 38.1 | 41.3 | 41.3 | 33.7 | 19.1 | LOK panelova spojka NPT / Trubka nerez SS316 1 / 3/4 F16-BMC-NPT12-316 | |
| F16-BMC-NPT16-316 | 1 | 1 | 93.2 | 23.9 | 31.2 | 22.4 | 38.1 | 41.3 | 41.3 | 33.7 | 19.1 | SS-1610-11-16 | LOK panelova spojka NPT / Trubka nerez SS316 1 / 1 F16-BMC-NPT16-316 |
| M6-BMC-NPT2-316 | 6 | 1/8 | 49.6 | 9.7 | 15.3 | 4.8 | 14 | 16 | 16 | 11.5 | 10.2 | SS-6M0-11-2 | LOK panelova spojka NPT / Trubka nerez SS316 6 / 1/8 M6-BMC-NPT2-316 |
| M6-BMC-NPT4-316 | 6 | 1/4 | 53.6 | 14.2 | 15.3 | 4.8 | 14 | 16 | 16 | 11.5 | 10.2 | SS-6M0-11-4 | LOK panelova spojka NPT / Trubka nerez SS316 6 / 1/4 M6-BMC-NPT4-316 |
| M8-BMC-NPT2-316 | 8 | 1/8 | 52.3 | 9.7 | 16.2 | 4.8 | 16 | 18 | 18 | 13.1 | 11.2 | LOK panelova spojka NPT / Trubka nerez SS316 8 / 1/8 M8-BMC-NPT2-316 | |
| M8-BMC-NPT4-316 | 8 | 1/4 | 57.5 | 14.2 | 16.2 | 6.4 | 16 | 18 | 18 | 13.1 | 11.2 | LOK panelova spojka NPT / Trubka nerez SS316 8 / 1/4 M8-BMC-NPT4-316 | |
| M10-BMC-NPT4-316 | 10 | 1/4 | 58.4 | 14.2 | 17.2 | 7.9 | 19 | 22 | 22 | 16.3 | 11.2 | LOK panelova spojka NPT / Trubka nerez SS316 10 / 1/4 M10-BMC-NPT4-316 | |
| M10-BMC-NPT6-316 | 10 | 3/8 | 58.4 | 14.2 | 17.2 | 7.9 | 19 | 22 | 22 | 16.3 | 11.2 | LOK panelova spojka NPT / Trubka nerez SS316 10 / 3/8 M10-BMC-NPT6-316 | |
| M10-BMC-NPT8-316 | 10 | 1/2 | 63.1 | 19.1 | 17.2 | 7.9 | 19 | 22 | 22 | 16.3 | 11.2 | LOK panelova spojka NPT / Trubka nerez SS316 10 / 1/2 M10-BMC-NPT8-316 | |
| M12-BMC-NPT4-316 | 12 | 1/4 | 63.9 | 14.2 | 22.8 | 7.9 | 22 | 24 | 24 | 19.5 | 12.7 | LOK panelova spojka NPT / Trubka nerez SS316 12 / 1/4 M12-BMC-NPT4-316 | |
| M12-BMC-NPT6-316 | 12 | 3/8 | 63.9 | 14.2 | 22.8 | 9.5 | 22 | 24 | 24 | 19.5 | 12.7 | LOK panelova spojka NPT / Trubka nerez SS316 12 / 3/8 M12-BMC-NPT6-316 | |
| M12-BMC-NPT8-316 | 12 | 1/2 | 68.8 | 19.1 | 22.8 | 9.5 | 22 | 24 | 24 | 19.5 | 12.7 | SS-12M0-11-8 | LOK panelova spojka NPT / Trubka nerez SS316 12 / 1/2 M12-BMC-NPT8-316 |
