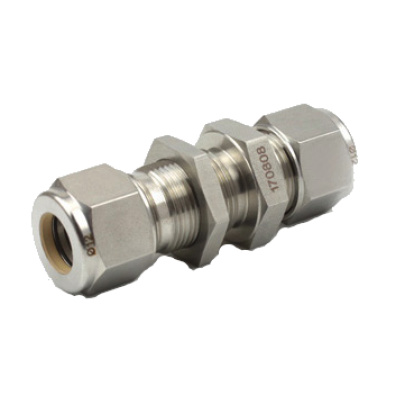

LOK panelova spojka nerez SS316
LOK panelova spojka nerez SS316
- Kód produktu: FBUF

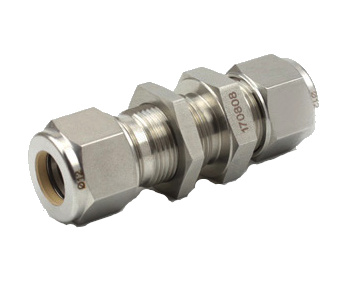

LOK panelova spojka nerez SS316
LOK bulkhead union stainless steel SS316
LOK dvojprstencový systém znamená, že sa do trubky zarezávajú dva prstene (predný a zadný). Takže, tieto spojky zabezpečujú vyššiu bezpečnosť a spoj s trubkou. Všetky položky je možné dodať aj v mosadznom prevedení. Nevahjte nás kontaktovať aj pre hadice, ventily a iné komponenty. Všetky ďalšie produkty najdete v časti katalógy.
Tieto spojky su s dvojprstencovym systemom. Nase LOK panelove spojky nerez SS316 su funkcne a rozmerovo totozne s inymi znackami ako SWAGELOK a dalsie.

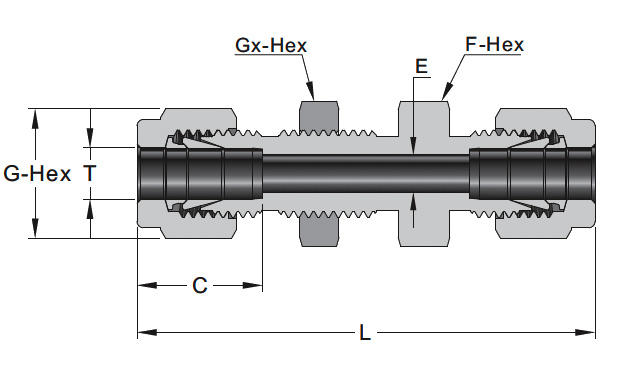

| Kod | Rozmer trubky T (Inch/mm) | L mm | C mm | E mm | G mm | F mm | Gx mm | Veľkosť otvoru v paneli mm | Max panelova hrubka mm | Nahrada za: | Nazov |
| Code | Dimension tube T (Inch/mm) | Panel hole size mm | Max panel thickness mm | Replacement: | Description | ||||||
| F1-BU-F1-316 | 1/16 | 31.5 | 8.6 | 1.3 | 7.9 | 7.9 | 7.9 | 5.2 | 3.0 | SS-100-61 | LOK panelova spojka nerez SS316 1/16 F1-BU-F1-316 |
| F2-BU-F2-316 | 1/8 | 51.3 | 12.7 | 2.3 | 11.1 | 12.7 | 12.7 | 8.3 | 12.7 | SS-200-61 | LOK panelova spojka nerez SS316 1/8 F2-BU-F2-316 |
| F3-BU-F3-316 | 3/16 | 53.6 | 13.7 | 3.0 | 12.7 | 14.3 | 14.3 | 9.9 | 12.7 | SS-300-61 | LOK panelova spojka nerez SS316 3/16 F3-BU-F3-316 |
| F4-BU-F4-316 | 1/4 | 57.7 | 15.2 | 4.8 | 14.3 | 15.9 | 15.9 | 11.5 | 10.2 | SS-400-61 | LOK panelova spojka nerez SS316 1/4 F4-BU-F4-316 |
| F5-BU-F5-316 | 5/16 | 60.7 | 16.3 | 6.4 | 15.9 | 17.5 | 17.5 | 13.1 | 11.2 | SS-500-61 | LOK panelova spojka nerez SS316 5/16 F5-BU-F5-316 |
| F6-BU-F6-316 | 3/8 | 62.2 | 16.8 | 7.1 | 17.5 | 19.1 | 19.1 | 14.7 | 11.2 | SS-600-61 | LOK panelova spojka nerez SS316 3/8 F6-BU-F6-316 |
| F8-BU-F8-316 | 1/2 | 71.1 | 22.9 | 10.4 | 22.2 | 23.8 | 23.8 | 19.4 | 12.7 | SS-810-61 | LOK panelova spojka nerez SS316 1/2 F8-BU-F8-316 |
| F10-BU-F10-316 | 5/8 | 72.6 | 24.4 | 12.7 | 25.4 | 27.0 | 27.0 | 22.6 | 12.7 | SS-1010-61 | LOK panelova spojka nerez SS316 5/8 F10-BU-F10-316 |
| F12-BU-F12-316 | 3/4 | 79.0 | 24.4 | 15.7 | 28.6 | 30.2 | 30.2 | 25.8 | 16.8 | SS-1210-61 | LOK panelova spojka nerez SS316 3/4 F12-BU-F12-316 |
| F14-BU-F14-316 | 7/8 | 84.6 | 25.9 | 18.3 | 31.8 | 34.9 | 34.9 | 29.0 | 19.1 | LOK panelova spojka nerez SS316 7/8 F14-BU-F14-316 | |
| F16-BU-F16-316 | 1 | 95.8 | 31.2 | 22.4 | 38.1 | 41.3 | 41.3 | 33.7 | 19.1 | SS-1610-61 | LOK panelova spojka nerez SS316 1 F16-BU-F16-316 |
| F20-BU-F20-316 | 1 1/4 | 123.2 | 41.1 | 27.8 | 47.6 | 47.6 | 47.6 | 41.7 | 19.1 | SS-2000-61 | LOK panelova spojka nerez SS316 1 1/4 F20-BU-F20-316 |
| F24-BU-F24-316 | 1 1/2 | 139.2 | 50.0 | 34.0 | 57.2 | 57.2 | 57.2 | 49.6 | 19.1 | SS-2400-61 | LOK panelova spojka nerez SS316 1 1/2 F24-BU-F24-316 |
| M3-BU-M3-316 | 3 | 51.3 | 12.9 | 2.4 | 12 | 14 | 14 | 8.3 | 12.7 | SS-3M0-61 | LOK panelova spojka nerez SS316 3 M3-BU-M3-316 |
| M4-BU-M4-316 | 4 | 53.6 | 13.7 | 2.4 | 12 | 14 | 14 | 9.9 | 12.7 | SS-4M0-61 | LOK panelova spojka nerez SS316 4 M4-BU-M4-316 |
| M6-BU-M6-316 | 6 | 57.7 | 15.3 | 4.8 | 14 | 16 | 16 | 11.5 | 10.2 | SS-6M0-61 | LOK panelova spojka nerez SS316 6 M6-BU-M6-316 |
| M8-BU-M8-316 | 8 | 61.0 | 16.2 | 6.4 | 16 | 18 | 18 | 13.1 | 11.2 | SS-8M0-61 | LOK panelova spojka nerez SS316 8 M8-BU-M8-316 |
| M10-BU-M10-316 | 10 | 63.7 | 17.2 | 7.9 | 19 | 22 | 22 | 16.3 | 11.2 | SS-10M0-61 | LOK panelova spojka nerez SS316 10 M10-BU-M10-316 |
| M12-BU-M12-316 | 12 | 71.0 | 22.8 | 9.5 | 22 | 24 | 24 | 19.5 | 12.7 | SS-12M0-61 | LOK panelova spojka nerez SS316 12 M12-BU-M12-316 |
| M14-BU-M14-316 | 14 | 72.5 | 24.4 | 11.1 | 25 | 27 | 27 | 22.5 | 12.7 | SS-14M0-61 | LOK panelova spojka nerez SS316 14 M14-BU-M14-316 |
| M15-BU-M15-316 | 15 | 72.5 | 24.4 | 11.9 | 25 | 27 | 27 | 22.8 | 12.7 | SS-15M0-61 | LOK panelova spojka nerez SS316 15 M15-BU-M15-316 |
| M16-BU-M16-316 | 16 | 72.5 | 24.4 | 12.7 | 25 | 27 | 27 | 22.8 | 12.7 | SS-16M0-61 | LOK panelova spojka nerez SS316 16 M16-BU-M16-316 |
| M18-BU-M18-316 | 18 | 78.9 | 24.4 | 15.1 | 30 | 30 | 30 | 26.0 | 16.8 | SS-18M0-61 | LOK panelova spojka nerez SS316 18 M18-BU-M18-316 |
| M20-BU-M20-316 | 20 | 84.5 | 26.0 | 15.9 | 32 | 35 | 35 | 29.0 | 19.0 | SS-20M0-61 | LOK panelova spojka nerez SS316 20 M20-BU-M20-316 |
| M25-BU-M25-316 | 25 | 96.0 | 31.3 | 21.8 | 38 | 41 | 41 | 34.0 | 19.0 | SS-25M0-61 | LOK panelova spojka nerez SS316 25 M25-BU-M25-316 |
| M30-BU-M30-316 | 30 | 124.0 | 39.6 | 26.2 | 50 | 50 | 50 | 40.5 | 19.0 | SS-30M0-61 | LOK panelova spojka nerez SS316 30 M30-BU-M30-316 |
| M32-BU-M32-316 | 32 | 128.0 | 42.0 | 28.6 | 50 | 50 | 50 | 42.5 | 19.0 | SS-32M0-61 | LOK panelova spojka nerez SS316 32 M32-BU-M32-316 |
| M38-BU-M38-316 | 38 | 145.0 | 49.4 | 33.7 | 60 | 60 | 60 | 50.5 | 19.0 | SS-38M0-61 | LOK panelova spojka nerez SS316 38 M38-BU-M38-316 |
