Hydraulicka rychlospojka ISO samec
Hydraulicka rychlospojka ISO samec ARGUS, quick coupling ARGUS
- Kód produktu: ISOSAMECARG
Hydraulicka rychlospojka ISO samec

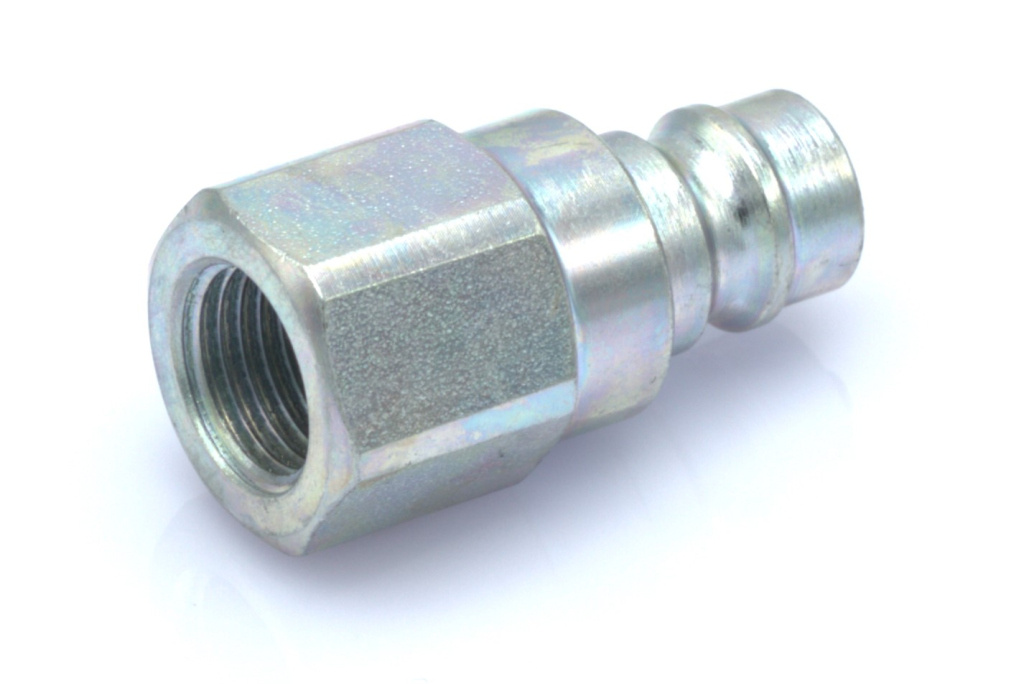

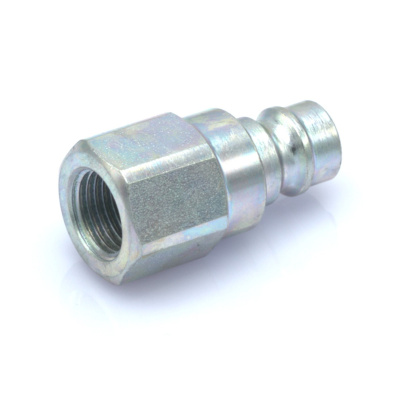

BSP RYCHLOSPOJKA JE S VNUTORNYM ZAVITOM
Code | DN | d1 | B | Working pressure | Burst pressure | d3 | SW | Name | ||
DN | d1 | B |
Pracovný tlak |
Poruch. tlak |
d3 | SW | Nazov | |||
mm | size | inch | mm | bar | bar | mm | mm | |||
12167 | 6 | -4 | 1/4 | 1/4 | 38,5 | 350 | 1400 | 11,8 | 19 | Hydraulicka rychlospojka ISO samec G1/4 |
99 | 10 | -6 | 3/8 | 3/8 | 36,5 | 315 | 1260 | 17,3 | 22 | Hydraulicka rychlospojka ISO samec G3/8 |
100 | 13 | -8 | 1/2 | 1/2 | 44 | 270 | 1080 | 20,5 | 27 | Hydraulicka rychlospojka ISO samec G1/2 |
101 | 19 | -12 | 3/4 | 3/4 | 55 | 250 | 1000 | 29,0 | 34 | Hydraulicka rychlospojka ISO samec G3/4 |
102 | 25 | -16 | 1 | 1 | 66 | 200 | 800 | 34,3 | 41 | Hydraulicka rychlospojka ISO samec G1 |

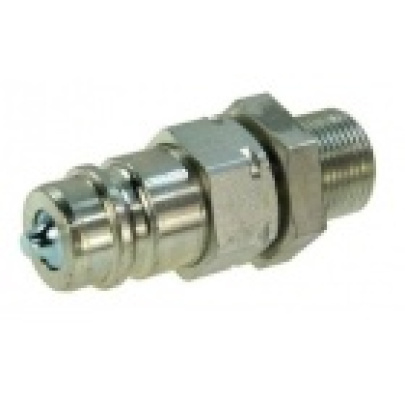

METRICKA RYCHLOSPOJKA JE S VONKAJSIM ZAVITOM
Code | DN | d1 | B | Working pressure | Burst pressure | RA | SW | d3 | Name | ||
DN | d1 | B |
Pracovný tlak |
Poruch. tlak |
RA | SW | d3 | Nazov | |||
mm | size | inch | mm | bar | bar | mm | mm | mm | |||
9783 | 13 | -8 | 1/2 | 14x1,5 | 56 | 250 | 1000 | 8 | 27 | 20,6 | Hydraulicka rychlospojka ISO samec M14x1,5 |
89 | 13 | -8 | 1/2 | 16x1,5 | 57 | 250 | 1000 | 10 | 27 | 20,6 | Hydraulicka rychlospojka ISO samec M16x1,5 |
90 | 13 | -8 | 1/2 | 18x1,5 | 57 | 250 | 1000 | 12 | 27 | 20,6 | Hydraulicka rychlospojka ISO samec M18x1,5 |
91 | 13 | -8 | 1/2 | 22x1,5 | 58 | 250 | 1000 | 15 | 27 | 20,6 | Hydraulicka rychlospojka ISO samec M22x1,5 |
